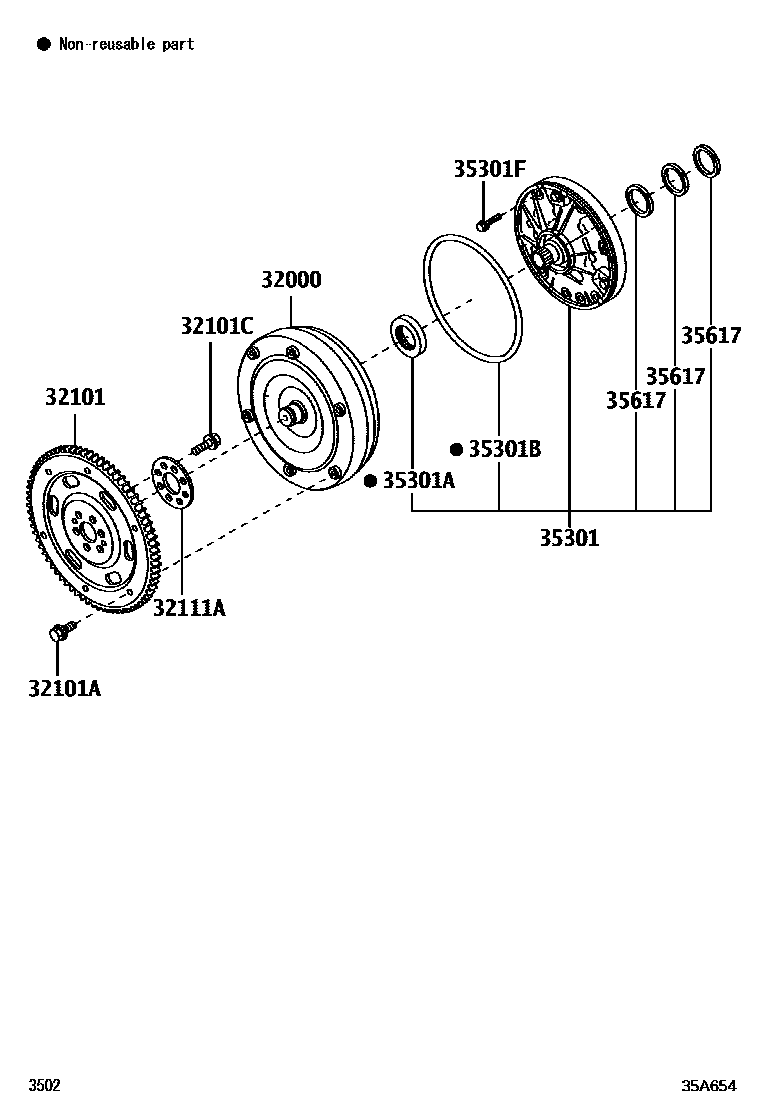

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-B1150iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712-202305

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-BZ050iF800..E4AT201712-202107

main32101-BZ070iF800..E4AT..MID..PH202108-202305

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05273iF800..E4AT201712-202101

M8,L=9.5,SILVER

main90041-05281iF800..E4AT201712-202101

M8,L=9.5,BLACK

main90041-05595iF800..E4AT..MID..PH202101-202305

M8,L=9,SILVER

main90041-05596iF800..E4AT..MID..PH202101-202305

M8,L=9,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main9004A-10200iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712-202305

32111APLATE(FOR PUMP IMPELLER DRIVE PLATE)

main32113-BZ030iF800..E4AT..MID..PH201712-202305

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-B1050iF800..E4AT..MID..PH201712-202305

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iF800..E4AT..MID..PH201712-202305

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iF800..E4AT..MID..PH201712-202305

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122iF800..E4AT..MID..PH201712-202305

35617RING, CLUTCH DRUM OIL SEAL

main35653-B1010iF800..E4AT..MID..PH201712-202305

10 parts on this diagram · 1 diagram in section
