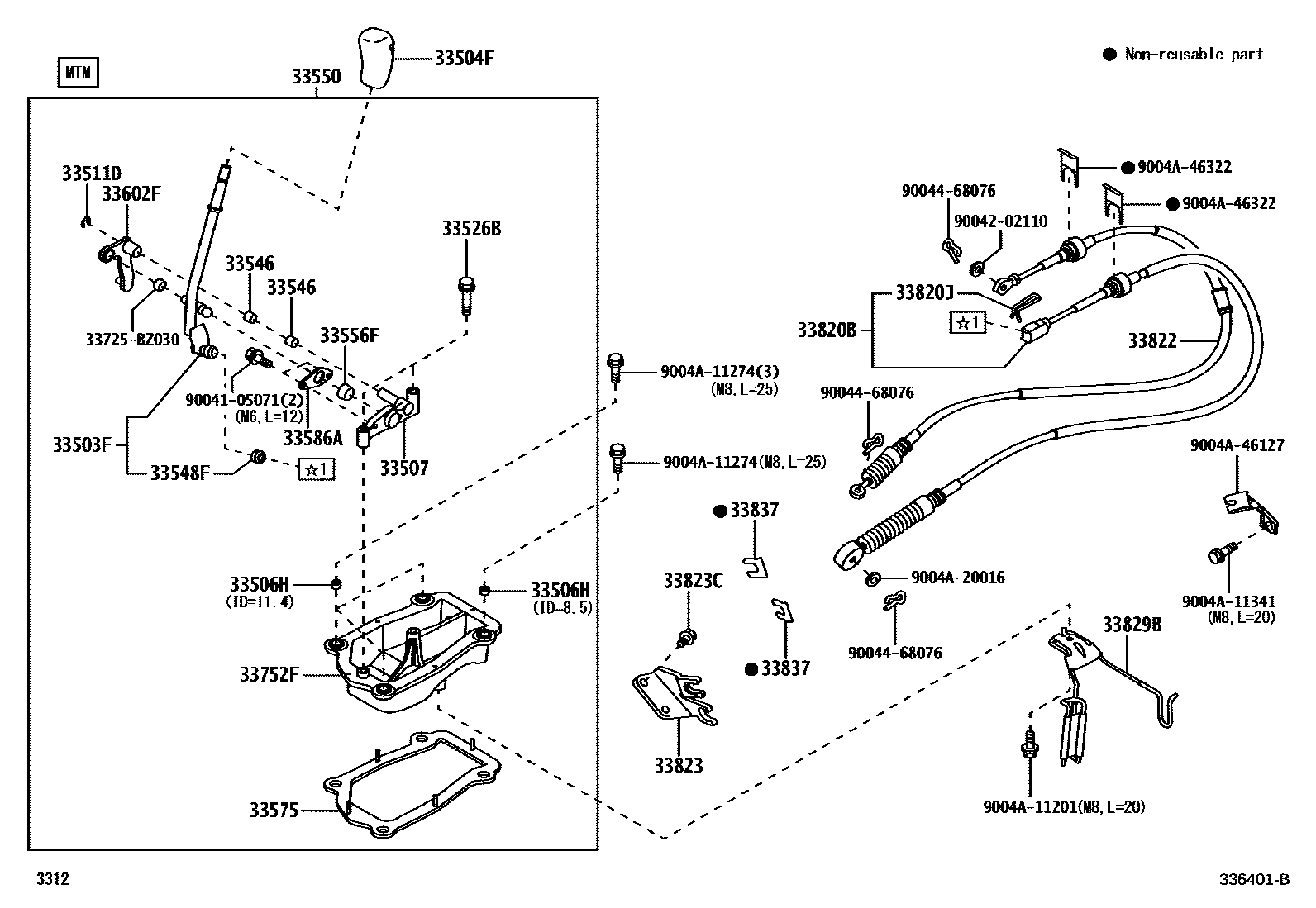

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-BZ050iF800..5F201712-202108

main33055-BZ051iF800..5F..MID..PH202108-202305

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B0010iF800..5F..HI201712

main33504-BZ110-C1iF800..E4AT..MID201712

BLACK,TRIM1#

main33504-BZ120-C1iF800..5F..MID201712

BLACK,TRIM1#

main33504-BZ140-C1iF800..E4AT..HI201712

BLACK,TRIM1#

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-BZ010iF800..5F..MID..PH201712-202305

ID=8.5

main33546-BZ020iF800..5F..HI..PH;F800..5F..(GCC,GEN,IDN,VN)201712-202305

ID=11.4

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-BZ010iF800..5F..MID..PH201712-202305

33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)

main96160-00800iF800..5F..HI..PH;F800..5F..(GCC,GEN,IDN,VN)201712-202305

33526BBOLT, SHIFT LEVER HOUSING SET

main81134-B4010iF800..5F..MID..PH201712-202305

33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)

main33548-BZ110iF800..5F..MID..PH201712-202305

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-BZ080iF800..5F201712-202108

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ011iF800..5F201712-202108

main33550-BZ012iF800..5F202108

main33550-BZ420-B0iF800..RHD..E4AT201712

SILVER,TRIM1#

main33550-BZ440-B0iF800..LHD..E4AT201804

SILVER,TRIM1#

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-BZ010iF800..5F..MID..PH201712-202305

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-BZ010iF800..5F..MID..PH201712-202305

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-BZ020iF800..5F..HI..PH;F800..5F..(GCC,GEN,IDN,VN)201712-202305

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-BZ030iF800..5F..HI..PH;F800..5F..(GCC,GEN,IDN,VN)201712-202305

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-BZ010iF800..5F..MID..PH201712-202305

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ021iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712-202305

main33820-BZ191iF800..5F201712-202108

main33820-BZ192iF800..5F..MID..PH202108-202305

33820JCLIP(FOR TRANSMISSION CONTROL CABLE)

main33837-B6010iF800..5F201712-202108

main33837-B6020iF800..5F..MID..PH202108-202305

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33830-BZ011iF800..5F..MID..PH201712-202305

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ011iF800..5F..HI..PH;F800..5F..(GCC,GEN,IDN,VN)201712-202305

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90041-05340iF800..5F..MID..PH202201-202305

main9004A-10213iF800..5F201712-202112

sub90041-05340

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-BZ040iF800..5F..MID..PH201712-202305

main33829-BZ080iF800..E4AT..HI..PH;F800..E4AT..(GCC,GEN,IDN,VN)201712-202305

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main90044-68117iF800..5F..MID..PH201712-202305

33725BZ030

main33725-BZ030

9004105071

main90041-05071

9004202110

main90042-02110

9004468076

main90044-68076

9004A11201

main9004A-11201

9004A11274

main9004A-11274

9004A11341

main9004A-11341

9004A20016

main9004A-20016

9004A46127

main9004A-46127

9004A46322

main9004A-46322

31 parts on this diagram · 3 diagrams in section
