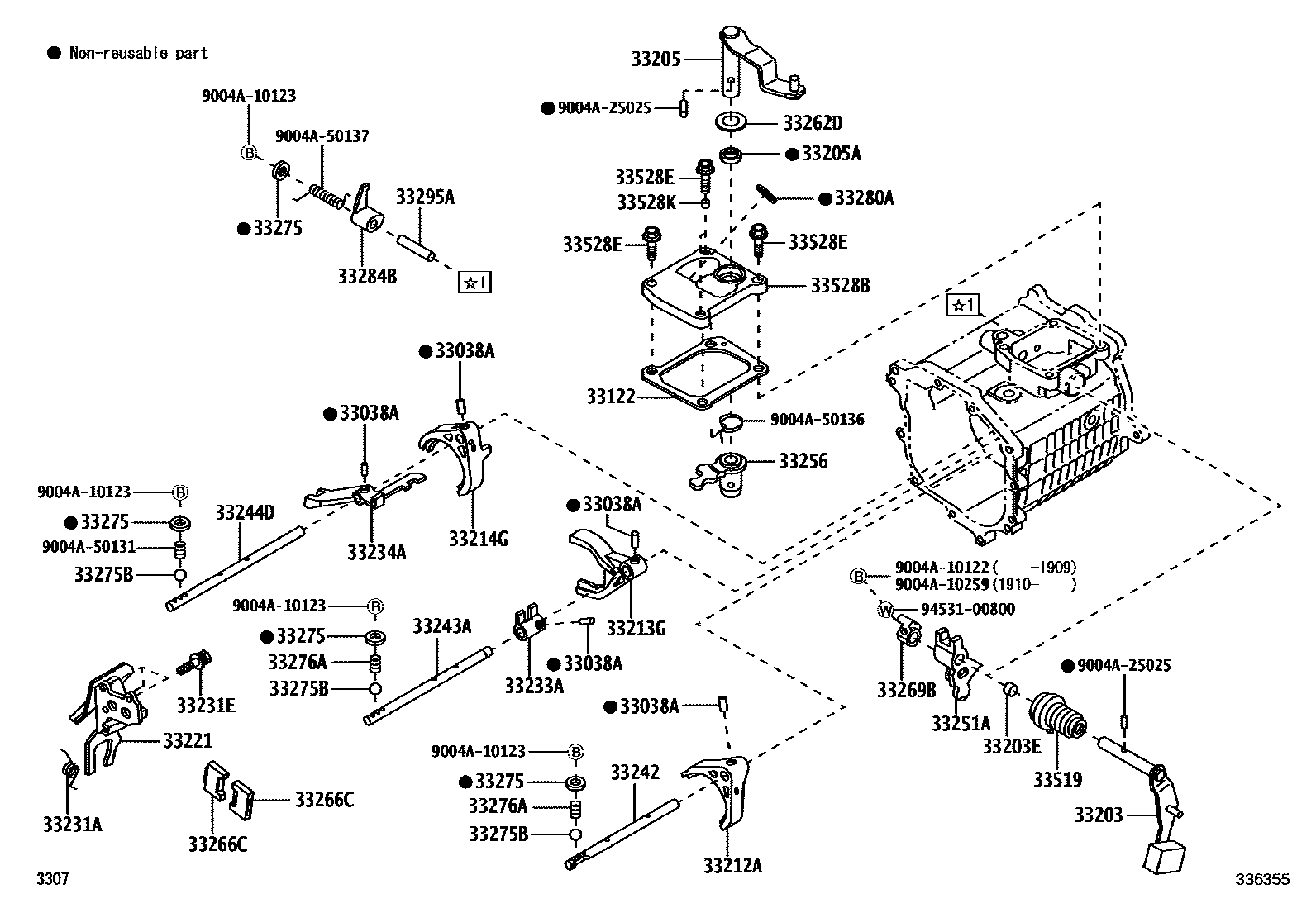

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33038APIN, SLOTTED SPRING
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203EBUSH(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33212AFORK, GEAR SHIFT, NO.1
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33231EBOLT(FOR REVERSE SHIFT HEAD)
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33256LEVER, SELECT INNER
33262DWASHER, PLATE (FOR SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33269BHEAD,LEVER SHAFT NEUTRAL DETECTION
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
0D=17
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280AGASKET, REVERSE RESTRICT PIN
33284BPIN, REVERSE RESTRICT, NO.2
33295ASHAFT, REVERSE RESTRICT
33519BOOT, CONTROL SHAFT DUST
33528BCOVER, CONTROL SHAFT
33528EBOLT (FOR CONTROL SHAFT COVER)
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
9004A10122
9004A10123
main9004A-10123
9004A10259
9004A25025
main9004A-25025
9004A50131
main9004A-50131
9004A50136
main9004A-50136
9004A50137
main9004A-50137
9453100800
40 parts on this diagram · 1 diagram in section
