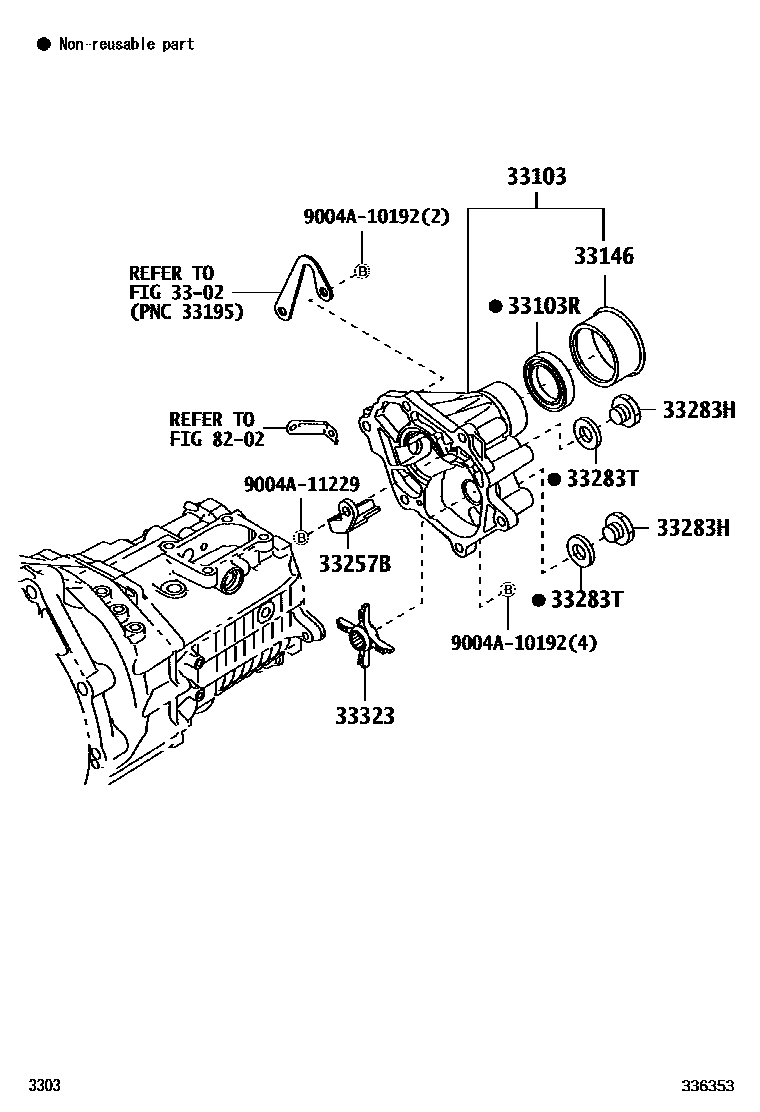

EXTENSION HOUSING (MTM)

3302

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-BZ031iF800..5F..MID..PH201712-202305

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iF800..5F..MID..PH201712-202305

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-BZ040iF800..5F..MID..PH201712-202305

33257BPLATE, GEAR OIL

main35345-BZ010iF800..5F..MID..PH201712-202305

sub35257-87501

33283HPLUG, W/HEAD STRAIGHT SCREW

main9004A-34010iF800..5F..MID..PH201712-202305

sub90341-16012

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006iF800..5F..MID..PH201712-202305

33323SLINGER, OUTPUT SHAFT OIL

main33467-BZ020iF800..5F..MID..PH201712-202305

8202

9004A10192

main9004A-10192

9004A11229

main9004A-11229

11 parts on this diagram · 1 diagram in section
