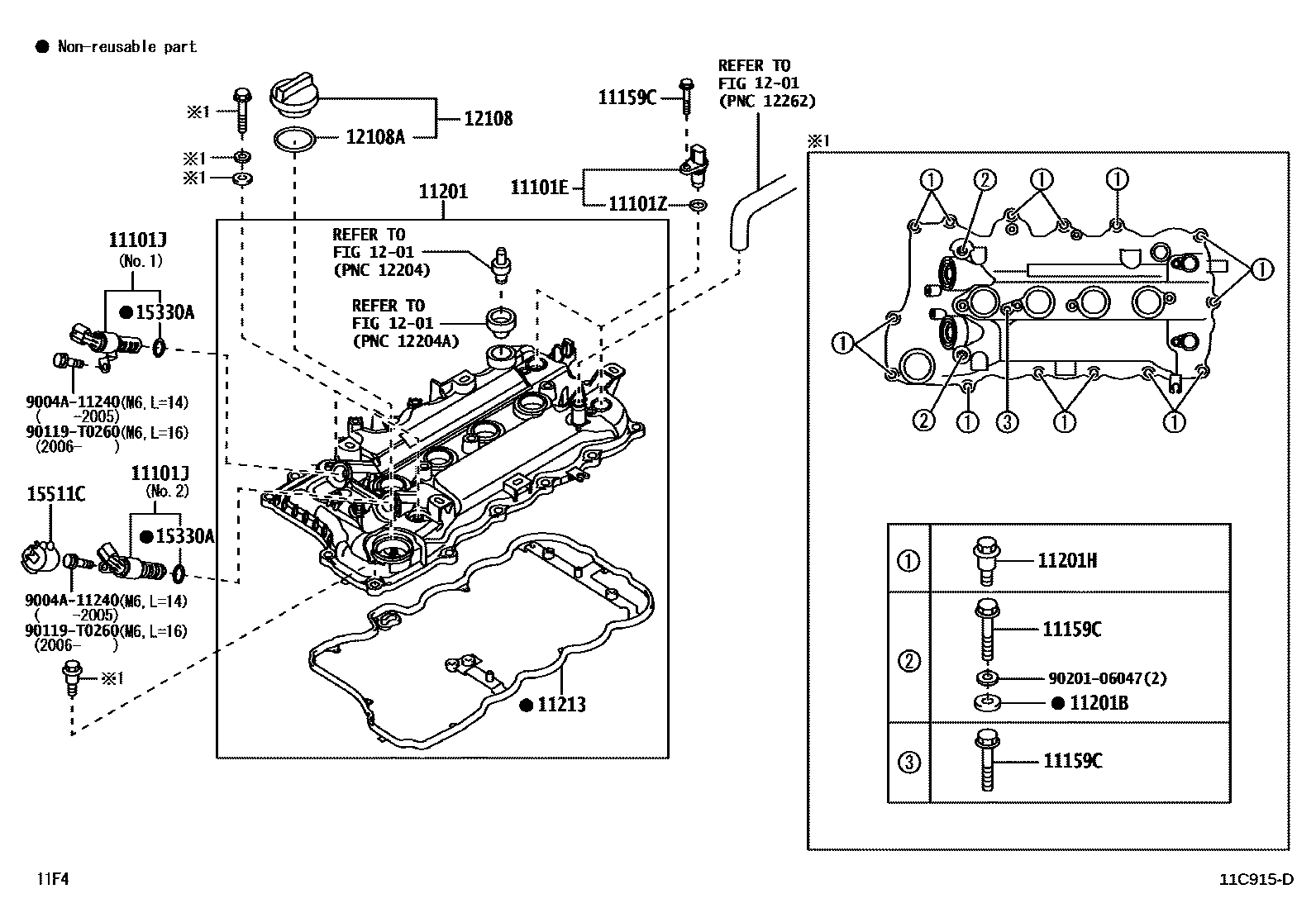

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-B9622i2NRVE..F800..MID..PH201712-202305

11101ESENSOR, CAM POSITION

main90919-T5002i2NRVE..F800..MID..PH201712-202305

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y050i2NRVE..F800..MID..PH201712-202305

NO.1

main15330-0Y060i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712-202305

NO.2

11101ZO RING, CAM POSITION SENSOR

main9004A-30059i2NRVE..F800..MID..PH201712-202305

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i2NRVE..F800..MID..PH201712-202305

M6,L=35

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ100i2NRVE..F800..MID..PH201712-202305

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-T0002i2NRVE..F800..MID..PH201712-202305

11201HBOLT(FOR CYLINDER HEAD COVER)

main90109-T0055i2NRVE..F800..MID..PH201712-202305

M6,L=23.5

11213GASKET, CYLINDER HEAD COVER

main11213-0Y030i2NRVE..F800..MID..PH201712-202305

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2NRVE..F800..MID..PH201712-202305

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i2NRVE..F800..MID..PH201712-202305

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i2NRVE..F800..MID..PH201712-202305

15511CCOVER, OIL CONTROL VALVE

main15511-BZ010i2NRVE..F800..MID..PH201712-202305

9004A11240

main9004A-11240

90119T0260

main90119-T0260

9020106047

main90201-06047

17 parts on this diagram · 2 diagrams in section
