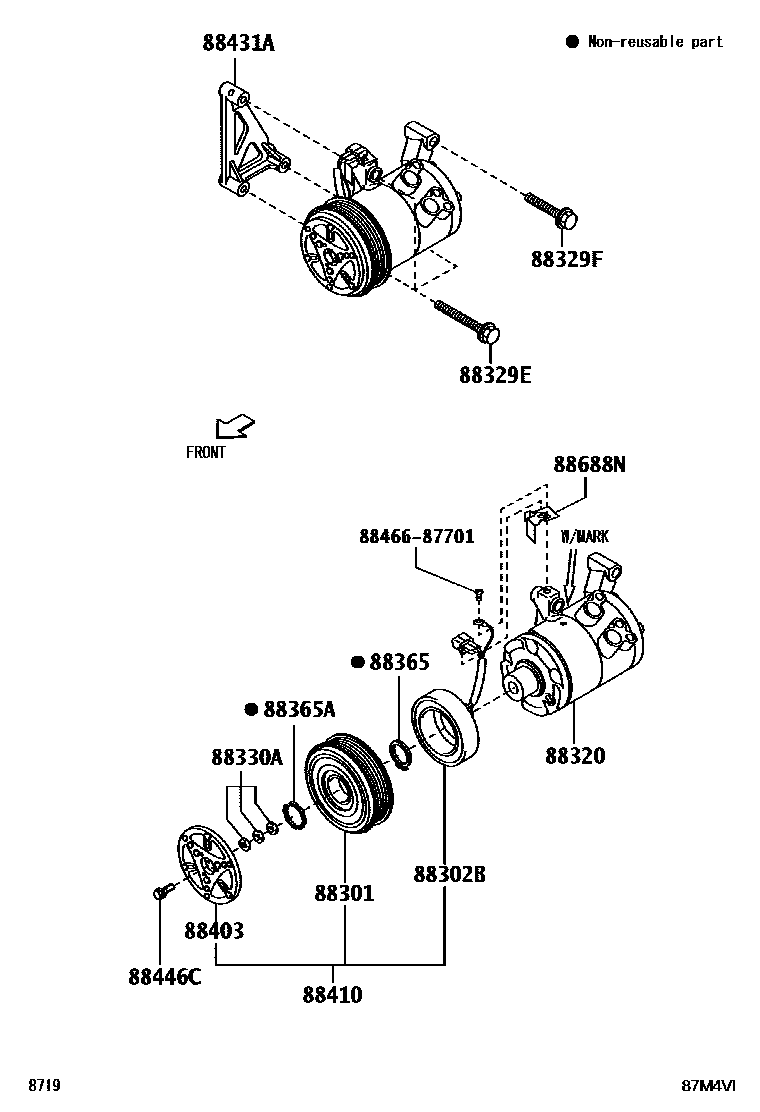

HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88320COMPRESSOR ASSY, COOLER
BLACK MARK
88329EBOLT, COMPRESSOR, NO.1
88329FBOLT, COMPRESSOR, NO.2
88330AWASHER (FOR MAGNET CLUTCH)
T=0.10
T=0.30
T=0.50
T=0.1
T=0.3
T=0.5
88410CLUTCH ASSY, MAGNET
88431ABRACKET, COMPRESSOR MOUNTING, NO.2
88446CBOLT, MAGNET CLUTCH SETTING
8846687701
main88466-87701
14 parts on this diagram · 2 diagrams in section
