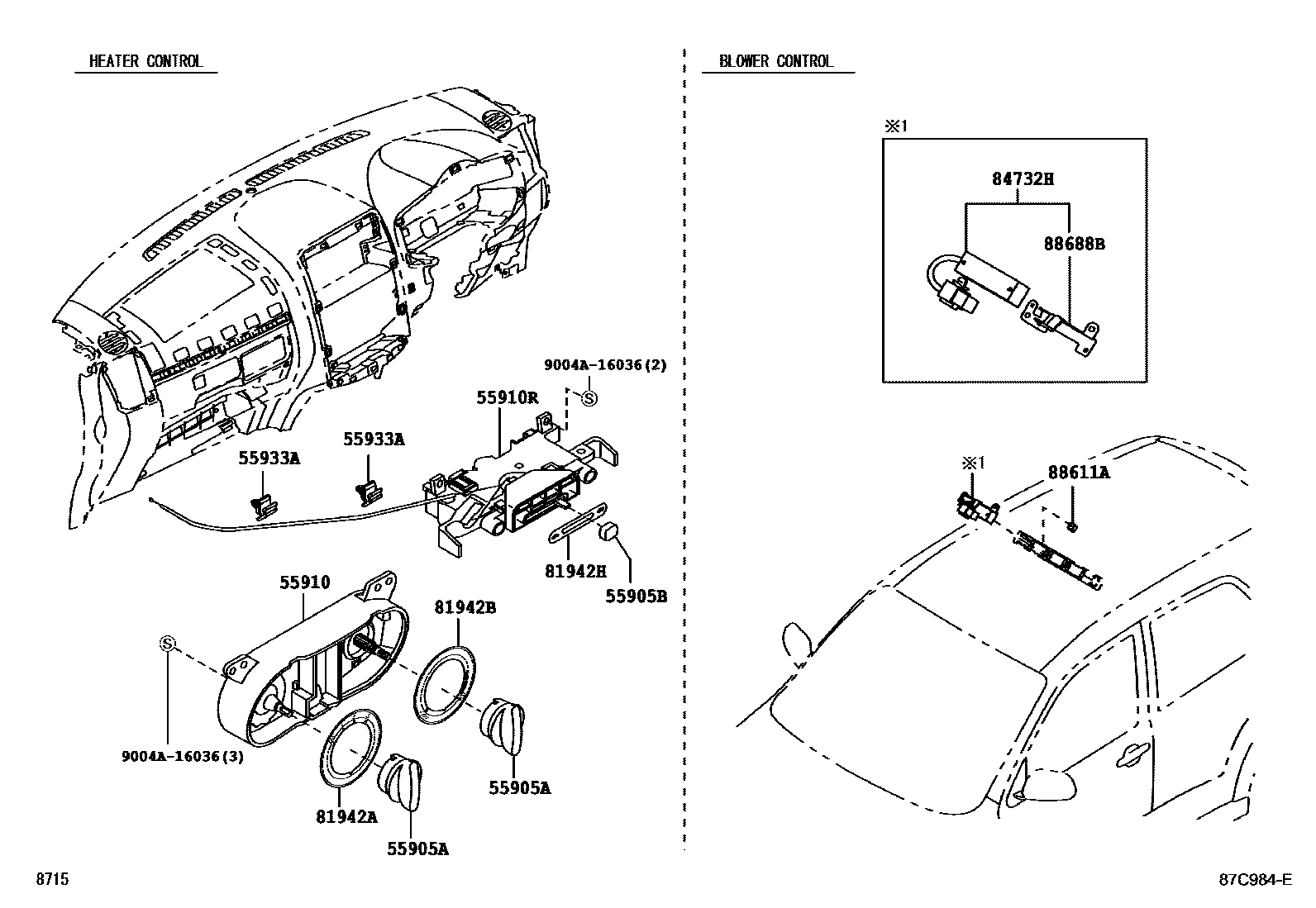

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55905AKNOB, HEATER CONTROL

main55905-BZ130iF700200612-201009

main55905-BZ170-B0iF700201010-201503

SILVER,TRIM1#,4#

main55905-BZ340-B0iF700201503

SILVER,TRIM1#

55905BKNOB, HEATER CONTROL, NO.2

main55905-BZ010iF700..MA200712-201503

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-BZ100iF700200612-201009

main55910-BZ240iF700201010-201503

main55910-BZ490iF700..MA201503-201612

main55910-BZ620iF700..MA201701

55910RCONTROL ASSY, HEATER

main55910-BZ090iF700..MA200712-201009

main55910-BZ261iF700..MA201010-201503

55933ACLAMP, HEATER CONTROL CABLE

main90044-64824iF700..MA200712-201503

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-BZ120iF700201010-201503

main81942-BZ240iF700..MA200712-201009

main81942-BZ240iF700..IDN200612-201009

LIGHT GRAY

main81942-BZ800iF700201503

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-BZ130iF700201010-201503

main81942-BZ250iF700..IDN200612-201009

LIGHT GRAY

main81942-BZ250iF700..MA200712-201009

main81942-BZ810iF700201503-201607

sub81942-BZ811

main81942-BZ811iF700201608

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-BZ330iF700..MA200712-201503

84732HSWITCH, HEATER BLOWER

main88470-BZ010iF700200612-201206

main88470-BZ011iF700201206-201503

88611AKNOB, COOLER CONTROL SWITCH

main88611-BZ020-A0iF700200612-201009

IVORY,TRIM4#

main88611-BZ020-B0iF700201010-201307

LT.GRAY,TRIM1#

main88611-BZ020-B1iF700201307-201503

LT.GRAY,TRIM1#

main88611-BZ020-E0iF700201010-201307

GREGE,TRIM4#

88688BBRACKET, AIR CONDITIONER CONTROL

main84113-BZ010iF700201206-201503

main88463-BZ160iF700200612-201206

9004A16036

main9004A-16036

12 parts on this diagram · 5 diagrams in section
