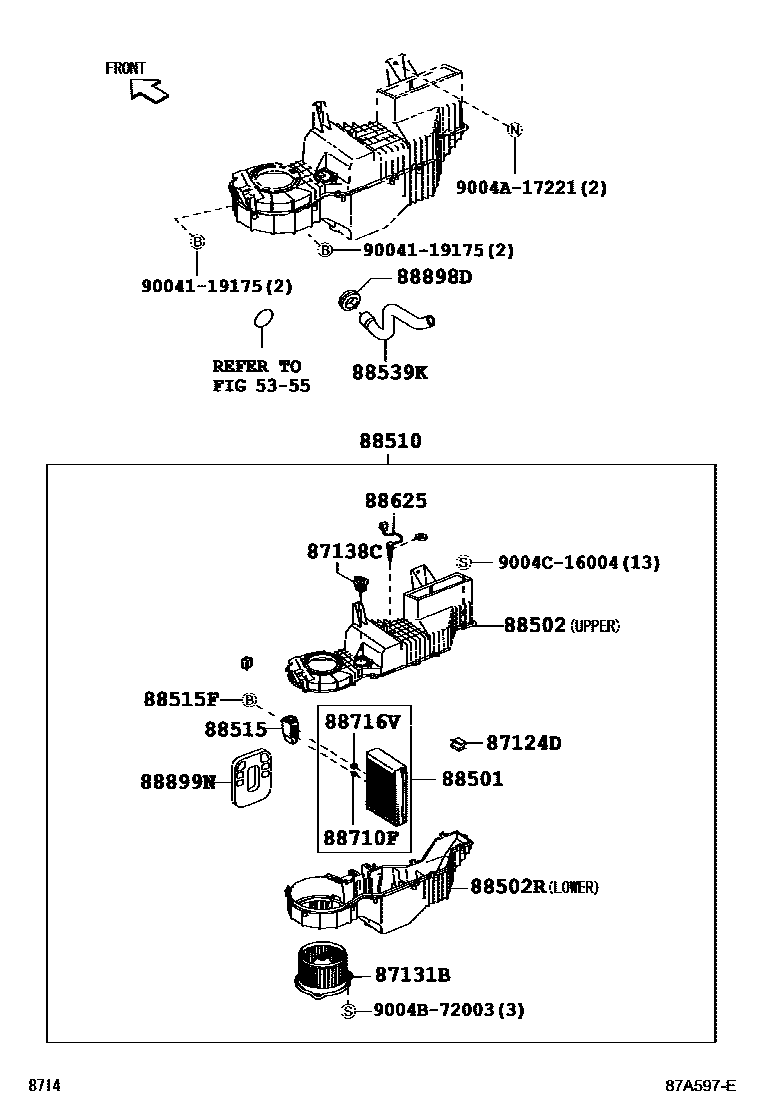

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

5355

87124DCLAMP, HEATER, NO.3

main87126-B1010iF700200612-201503

87131BCASE, HEATER BLOWER

main87103-97209iF700..IDN200612-201307

main87103-BZ020iF700..IDN200712-201503

87138CRESISTOR, BLOWER

main87138-87401iF700200612-201009

main87138-87402iF700201010-201503

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-BZ011iF700200612-201503

88502CASE SUB-ASSY, COOLING UNIT

main88502-BZ070iF700..IDN201010-201711

main88502-BZ090iF700..MA200712-201711

88502RCASE SUB-ASSY, COOLING UNIT

main88502-BZ060iF700..IDN201010-201711

main88502-BZ080iF700..MA200712-201711

88510UNIT ASSY, COOLER

main88510-BZ050iF700..IDN200612-201009

main88510-BZ110iF700..MA200712-201009

main88510-BZ200iF700..IDN201010-201306

sub88510-BZ201

main88510-BZ210iF700..MA201010-201505

main88510-BZ211iF700..MA201505-201612

sub88510-BZ212

main88510-BZ212iF700..MA201701

main88510-BZ240iF700..IDN201307-201503

main88510-BZ241iF700..IDN201503

88515VALVE, COOLER EXPANSION

main88515-BZ090iF700200612-201505

main88515-BZ140iF700..IDN201503

88515FBOLT(FOR COOLER EXPANSION VALVE)

mainC990997201iF700200612-201503

88539KHOSE, DRAIN COOLER

main88539-BZ010iF700200612-200807

sub88539-BZ011

main88539-BZ011iF700200808-201503

88625THERMISTOR, COOLER, NO.1

main88625-BZ030iF700200612-201503

88710FRING, O

main15188-87402iF700200612-201503

88716VRING, O(FOR COOLER UNIT)

main15188-87403iF700200612-201503

88898DGROMMET

main88897-87Z13iF700200612-201503

88899NPLATE, COVER

main88892-BZ080iF700200612-201503

9004119175

main90041-19175

9004A17221

main9004A-17221

9004B72003

main9004B-72003

9004C16004

main9004C-16004

20 parts on this diagram · 4 diagrams in section
