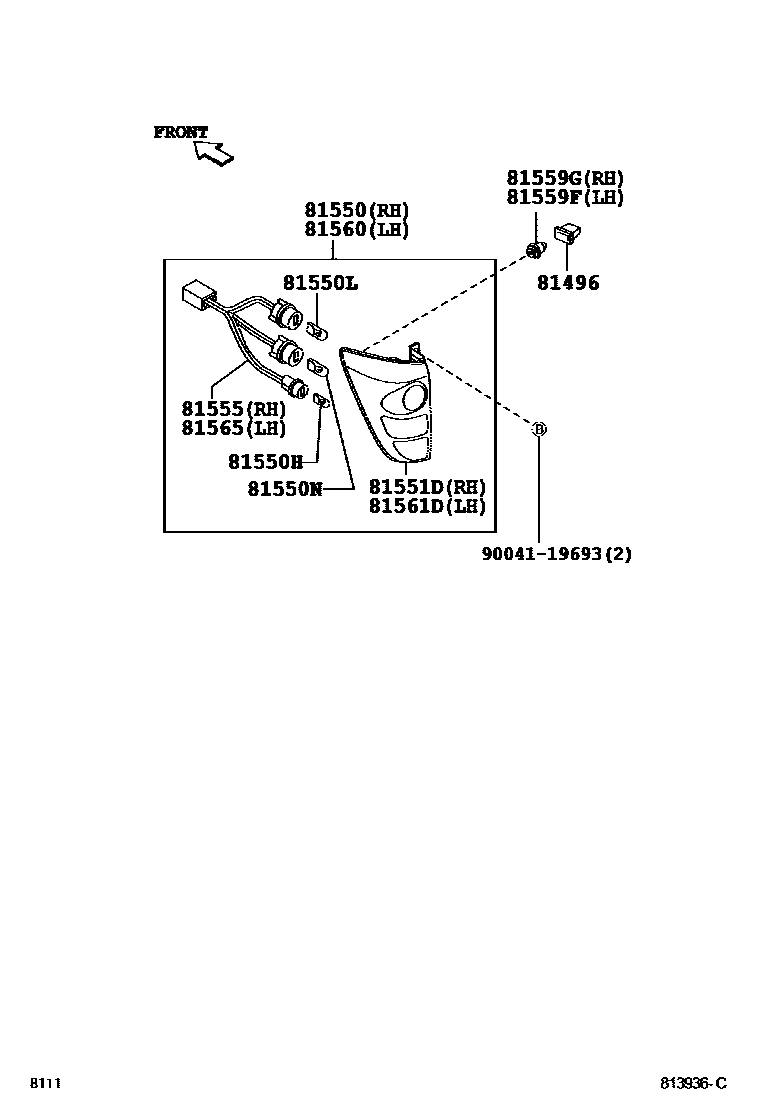

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81496GUIDE, REAR COMBINATION LAMP

main81496-B4010iF700200612-201510

main81496-BZ010iF700201511

81550LAMP ASSY, REAR COMBINATION, RH

main81550-BZ090iF700200612-201009

main81550-BZ170iF700201010-201503

main81550-BZ400iF700201503

81550HBULB, TAIL & STOP LAMP

main90049-51130iF700200612-201503

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51143iF700200612-201503

main9004A-81023iF700201503

12V 16W

81550NBULB, BACK UP LAMP

main90049-51194iF700200612-201503

main9004A-81024iF700201503

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-BZ030iF700201010-201503

main81551-BZ070iF700200612-201009

main81551-BZ230iF700201503

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-BZ020iF700200612-201503

main81555-BZ110iF700201503

81559FCLIP, RR COMBINATION LAMP, LH

main81559-B2020iF700200612-201503

81559GCLIP, RR COMBINATION LAMP, RH

main81559-B2020iF700200612-201503

81560LAMP ASSY, REAR COMBINATION, LH

main81560-BZ080iF700200612-201009

main81560-BZ170iF700201010-201503

main81560-BZ400iF700201503

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-BZ030iF700201010-201503

main81561-BZ070iF700200612-201009

main81561-BZ230iF700201503

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-BZ020iF700200612-201503

main81555-BZ110iF700201503

9004119693

main90041-19693

13 parts on this diagram · 3 diagrams in section
