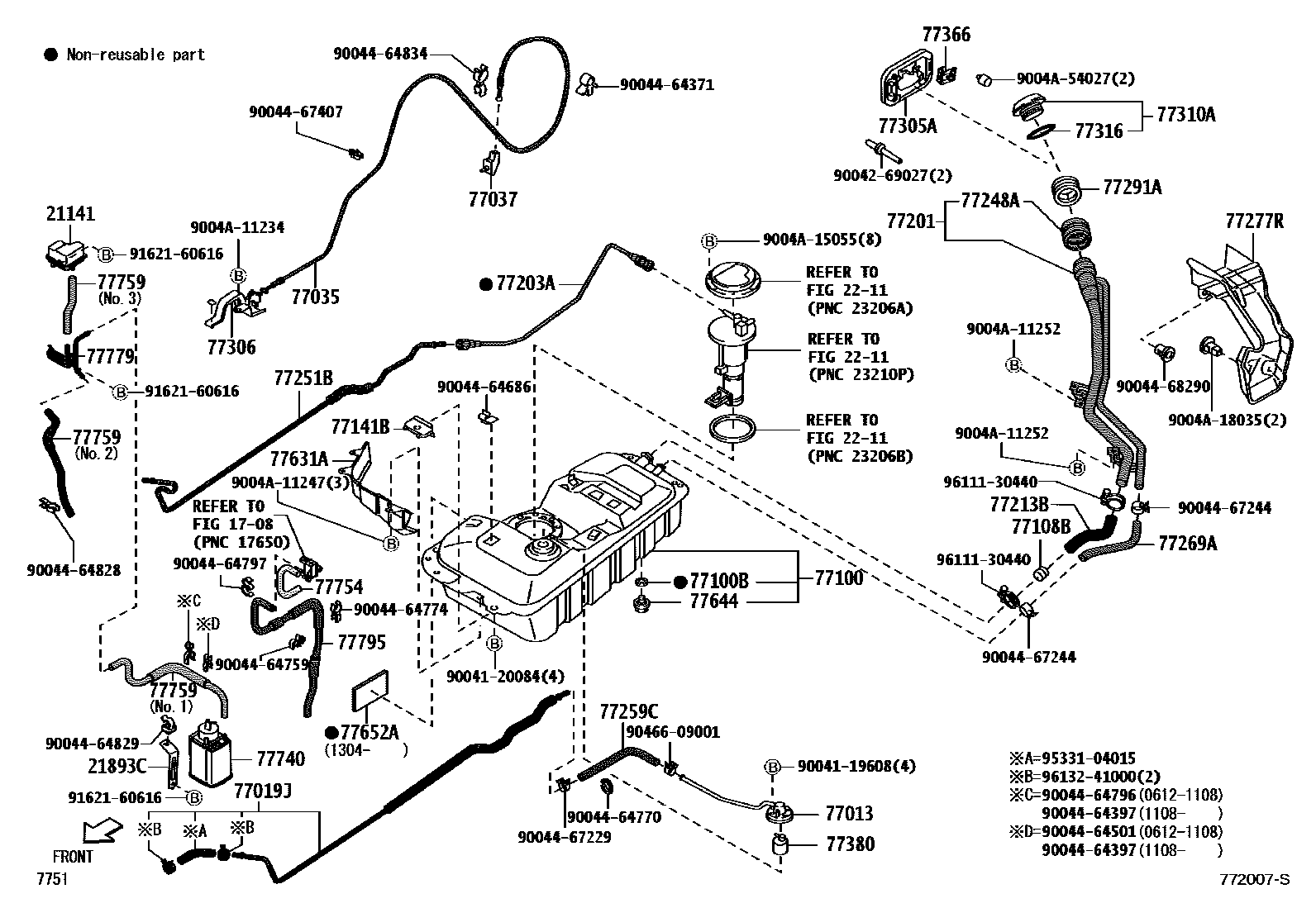

FUEL TANK & TUBE

0001 1 0002 1

1708

21141CHAMBER, SUCTION

main21141-B0020i3SZVE..F700200612-200810

main21141-BZ040i3SZVE..F700200811-201503

21893CBRACKET

main21893-BZ030i3SZVE..F700200612-201503

2211

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ010iF700200612-201312

main77013-BZ100iF700201312-201503

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-BZ070iF700200612-201503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-BZ040iF700200612-201503

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-B4010iF700200612-201503

77100TANK ASSY, FUEL

main77001-BZ020iF700..IDN200612-201312

sub77001-BZ590

main77001-BZ140iF700..MA200712-201312

main77001-BZ280iF700..MA201312-201503

main77001-BZ290iF700..IDN201312-201503

sub77001-BZ380

77100BGASKET(FOR FUEL TANK)

main90044-30291iF700200612-201503

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iF700200612-201503

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ010iF700200612-201503

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ070iF700200612-201009

sub77201-BZ071

main77201-BZ071iF700201010-201503

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ010iF700200612-201304

main77203-BZ100iF700201312-201503

main77203-BZ110iF700201304-201312

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ010iF700200612-201610

sub77213-B0010

sub77213-BZ190

main77213-BZ190iF700201610

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iF700200612-201503

77251BTUBE, FUEL MAIN

main77251-BZ090iF700200612-201503

main77251-BZ280iF700201503

77259CHOSE, FUEL

main77259-BZ010iF700200612-201503

77269AHOSE, FUEL TANK BREATHER

main77269-BZ010iF700200612-201503

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-BZ030iF700200612-200910

sub77277-BZ031

main77277-BZ031iF700200911-201503

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2020iF700200612-201503

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-B0020iF700200612-200707

sub77305-BZ030

main77305-BZ030iF700200708-201503

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-BZ050iF700200612-201503

77310ACAP ASSY, FUEL TANK

main77300-52030iF700201701

main77310-48010iF700200612-201701

77316GASKET, FUEL TANK CAP

main77316-16010iF700200612-201701

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iF700200612-201503

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iF700200612-201503

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ010iF700200612-201612

sub77631-BZ061

main77631-BZ061iF700201701

77644BOLT, FUEL TANK

main90041-05177iF700200612-201308

main90041-05481iF700..MA201310-201511

main9004A-10137iF700..MA201309-201312

main9004A-10186iF700201512

77652ACUSHION, FUEL TANK, NO.2

main77652-B2010iF700201304-201610

main77652-BZ040iF700201611

77740CANISTER ASSY, CHARCOAL

main77740-BZ020iF700200612-201503

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-BZ040iF700200612-201503

L=90

77759HOSE, CHARCOAL CANISTER

main77759-BZ020iF700200612-201108

L=133,NO.1

sub77759-BZ021

sub90044-64397

main77759-BZ021iF700201108-201503

L=133,NO.1

main77759-BZ030iF700200612-201503

L=45,NO.2

main77759-BZ040iF700200612-201503

L=75,NO.3

77779TUBE, CHARCOAL CANISTER OUTLET

main77779-BZ010iF700200612-201503

77795HOSE, CHARCOAL CANISTER OUTLET, NO.2

main77795-BZ050iF700200612-201503

9004119608

main90041-19608

9004120084

main90041-20084

9004269027

main90042-69027

9004464371

main90044-64371

9004464397

main90044-64397

9004464501

main90044-64501

9004464686

main90044-64686

9004464759

main90044-64759

9004464770

main90044-64770

9004464774

main90044-64774

9004464796

main90044-64796

9004464797

main90044-64797

9004464828

main90044-64828

9004464829

main90044-64829

9004464834

main90044-64834

9004467229

main90044-67229

9004467244

main90044-67244

9004467407

main90044-67407

9004468290

main90044-68290

9004A11234

main9004A-11234

9004A11247

main9004A-11247

9004A11252

main9004A-11252

9004A15055

main9004A-15055

9004A18035

main9004A-18035

9004A54027

main9004A-54027

9046609001

main90466-09001

9162160616

main91621-60616

9533104015

main95331-04015

9611130440

main96111-30440

9613241000

main96132-41000

65 parts on this diagram · 2 diagrams in section
