ARMREST & VISOR

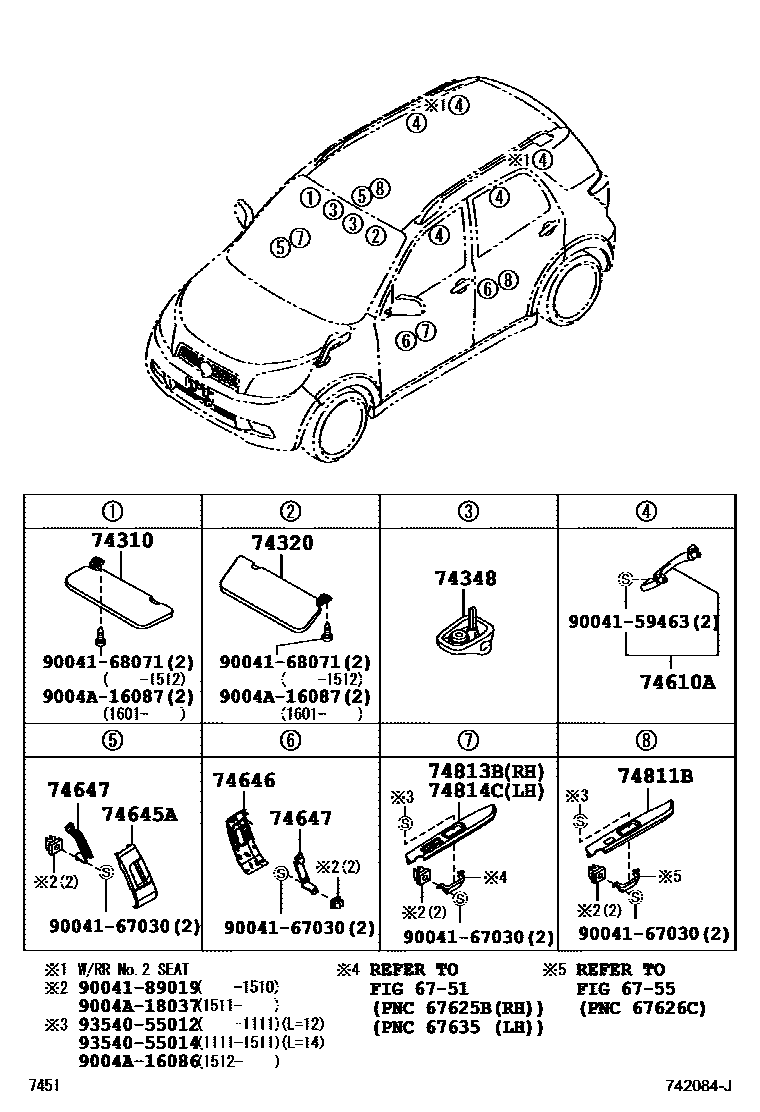

Parts diagram
6751
6755
74310VISOR ASSY, RH
main74310-BZ170-A0i200612-201009
IVORY,TRIM4#
main74310-BZ170-B1i201503-201701
LT.GRAY,TRIM1#,L/CAUTION LABEL
main74310-BZ170-E0i201010-201307
GREGE,TRIM4#,L/CAUTION LABEL
main74310-BZ190-A0i200612-201009
IVORY,TRIM4#
main74310-BZ190-B1i201307-201503
LT.GRAY,TRIM1#,W/CAUTION LABEL
main74310-BZ190-E0i201010-201307
GREGE,TRIM4#,W/CAUTION LABEL
main74310-BZ390-A0i200712-201009
IVORY,TRIM4#
main74310-BZ390-B0i201010-201207
LT.GRAY,TRIM1#
main74310-BZ410-A0i200712-201009
IVORY,TRIM4#
main74310-BZ410-B0i201010-201307
LT.GRAY,TRIM1#
main74310-BZ410-B1i201307-201503
LT.GRAY,TRIM1#
main74310-BZ720-B0i201701
LT.GRAY,TRIM1#,W/CAUTION LABEL
74320VISOR ASSY, LH
main74320-BZ180-A0i200612-201009
IVORY,TRIM4#
sub74320-BZ181
main74320-BZ180-B0i201010-201207
LT.GRAY,TRIM1#
sub74320-BZ181
main74320-BZ180-B1i201307-201503
LT.GRAY,TRIM1#
sub74320-BZ181
main74320-BZ180-E0i201010-201307
GREGE,TRIM4#
sub74320-BZ181
main74320-BZ630-B0i201207-201307
LT.GRAY,TRIM1#
sub74320-BZ631
main74320-BZ630-B1i201307-201612
LT.GRAY,TRIM1#
sub74320-BZ631
main74320-BZ631-B1i201701
LT.GRAY,TRIM1#
74348HOLDER, VISOR
main74348-BZ010-A0i200612-200812
IVORY,TRIM4#
sub74348-BZ060¥340
main74348-BZ060-A0i200901-201009
IVORY,TRIM4#
main74348-BZ060-B0i201010-201307
LT.GRAY,TRIM1#
main74348-BZ060-B1i201307-201503
LT.GRAY,TRIM1#
main74348-BZ060-E0i201010-201307
GREGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-BZ020-A0i200612-201009
IVORY,TRIM4#
main74610-BZ020-B0i201010-201307
LT.GRAY,TRIM1#
main74610-BZ020-B1i201307-201602
LT.GRAY,TRIM1#
main74610-BZ020-E0i201010-201307
GREGE,TRIM4#
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-BZ010-B0i201010-201503
SILVER,TRIM1#,4#
sub74645-BZ010
main74645-BZ010-B0i201010-201503
SILVER,TRIM1#
sub74645-BZ010
main74645-BZ010-B1i200612-201009
GRAY ME,TRIM4#
sub74645-BZ010
main74645-BZ090-B0i201503
SILVER,TRIM1#
74646COVER, DOOR ASSIST GRIP, LH
main74646-BZ010-B0i201010-201503
SILVER,TRIM1#
sub74646-BZ010
main74646-BZ010-B0i201010-201503
SILVER,TRIM1#,4#
sub74646-BZ010
main74646-BZ010-B1i200612-201009
GRAY ME,TRIM4#
sub74646-BZ010
main74646-BZ090-B0i201503
SILVER,TRIM1#
74647BASE, DOOR ASSIST GRIP
main74647-BZ010-A0i200612-201009
IVORY,TRIM4#,RH
main74647-BZ010-B0i201010-201503
DK.GRAY,TRIM1#,RH
main74647-BZ010-E0i201010-201307
GREGE,TRIM4#,RH
main74648-BZ010-A0i200612-201009
IVORY,TRIM4#,LH
main74648-BZ010-B0i201010-201503
DK.GRAY,TRIM1#,LH
main74648-BZ010-E0i201010-201307
GREGE,TRIM4#,LH
74811BHANDLE, DOOR PULL
main74815-BZ010-A0i200612-201009
IVORY,TRIM4#,RH
main74815-BZ010-B0i201010-201503
DK.GRAY,TRIM1#,RH
main74815-BZ010-E0i201010-201307
GREGE,TRIM4#,RH
main74816-BZ010-A0i200612-201009
IVORY,TRIM4#,LH
main74816-BZ010-B0i201010-201503
DK.GRAY,TRIM1#,LH
main74816-BZ010-E0i201010-201307
GREGE,TRIM4#,LH
74813BHANDLE, FRONT DOOR PULL, RH
main74813-BZ010-A0i200612-201009
IVORY,TRIM4#
main74813-BZ010-B0i201010-201503
DK.GRAY,TRIM1#
main74813-BZ010-E0i201010-201307
GREGE,TRIM4#
main74813-BZ120-B0i201503
DK.GRAY,TRIM1#
74814CHANDLE, FRONT DOOR PULL, LH
main74814-BZ010-A0i200612-201009
IVORY,TRIM4#
main74814-BZ010-B0i201010-201503
DK.GRAY,TRIM1#
main74814-BZ010-E0i201010-201307
GREGE,TRIM4#
9004159463
main90041-59463
9004167030
main90041-67030¥120
9004168071
main90041-68071¥120
9004189019
main90041-89019¥80
9004A16086
main9004A-16086
9004A16087
main9004A-16087
9004A18037
main9004A-18037
9354055012
main93540-55012¥60
9354055014
main93540-55014¥60

21 parts on this diagram · 1 diagram in section
