SEAT BELT

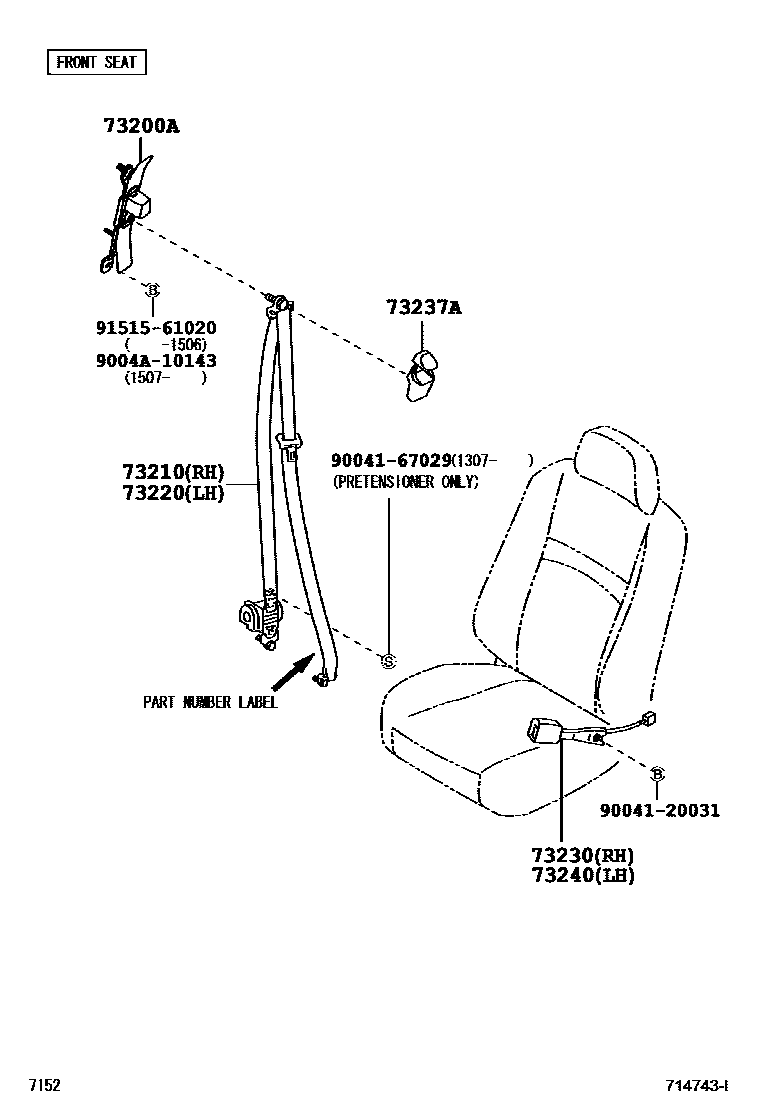

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-B0010-A0iF700200707-201009

IVORY,TRIM4#

main73200-B0010-B0iF700201010-201503

LT.GRAY,TRIM1#

main73200-B0010-E0iF700..S..MA201010-201503

GREGE,TRIM4#

main73200-B1010-A0iF700200612-200706

IVORY,TRIM4#

sub73200-B1010

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ140-A0iF700..5F..S;F700..G..IDN200612-201009

IVORY,TRIM4#

main73210-BZ140-E0iF700..5F..S;F700..G..IDN201010-201307

GREGE,TRIM4#,W/PART NUMBER LABEL

main73210-BZ220-A0iF700..G..MA;F700..E4AT..S200612-201009

IVORY,TRIM4#

main73210-BZ220-B0iF700..MA201010-201307

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

main73210-BZ220-E0iF700..E4AT..S201010-201307

GREGE,TRIM4#,W/PART NUMBER LABEL

main73210-BZ280-B0iF700201307-201503

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

main73210-BZ280-E0iF700..IDN201307-201503

GREGE,TRIM4#,W/PART NUMBER LABEL

main73210-BZ520-B0iF700201503

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ140-A0iF700..G;F700..5F..S200612-201009

IVORY,TRIM4#

main73220-BZ140-B0iF700..G..MA201010-201307

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

main73220-BZ140-E0iF700..5F..S;F700..G..IDN201010-201307

GREGE,TRIM4#,W/PART NUMBER LABEL

main73220-BZ210-A0iF700..E4AT..S200612-201009

IVORY,TRIM4#

main73220-BZ210-B0iF700..S..MA201010-201307

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

main73220-BZ210-E0iF700..E4AT..S201010-201307

GREGE,TRIM4#,W/PART NUMBER LABEL

main73220-BZ260-B0iF700201307-201503

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

main73220-BZ260-E0iF700..IDN201307-201503

GREGE,TRIM4#,W/PART NUMBER LABEL

main73220-BZ500-B0iF700201503

DK.GRAY,TRIM1#,W/PART NUMBER LABEL

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ180-A0iF700200612-201009

IVORY,TRIM4#

main73230-BZ180-B0iF700..MA201010-201503

DK.GRAY,TRIM1#

main73230-BZ180-E0iF700..S..MA201010-201503

GREGE,TRIM4#

main73230-BZ570-B0iF700201503

DK.GRAY,TRIM1#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-B1010-A0iF700200612-201009

IVORY,TRIM4#

sub73237-B1010

main73237-B1010-B0iF700..MA201010-201503

LT.GRAY,TRIM1#

sub73237-B1010

main73237-B1010-E0iF700..S..MA201010-201503

GREGE,TRIM4#

sub73237-B1010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ170-A0iF700200612-201009

IVORY,TRIM4#

main73230-BZ170-B0iF700..IDN201010-201503

DK.GRAY,TRIM1#

main73230-BZ170-E0iF700..IDN201010-201503

GREGE,TRIM4#

main73230-BZ550-B0iF700201503

DK.GRAY,TRIM1#

9004120031

main90041-20031

9004167029

main90041-67029

9004A10143

main9004A-10143

9151561020

main91515-61020

10 parts on this diagram · 3 diagrams in section
