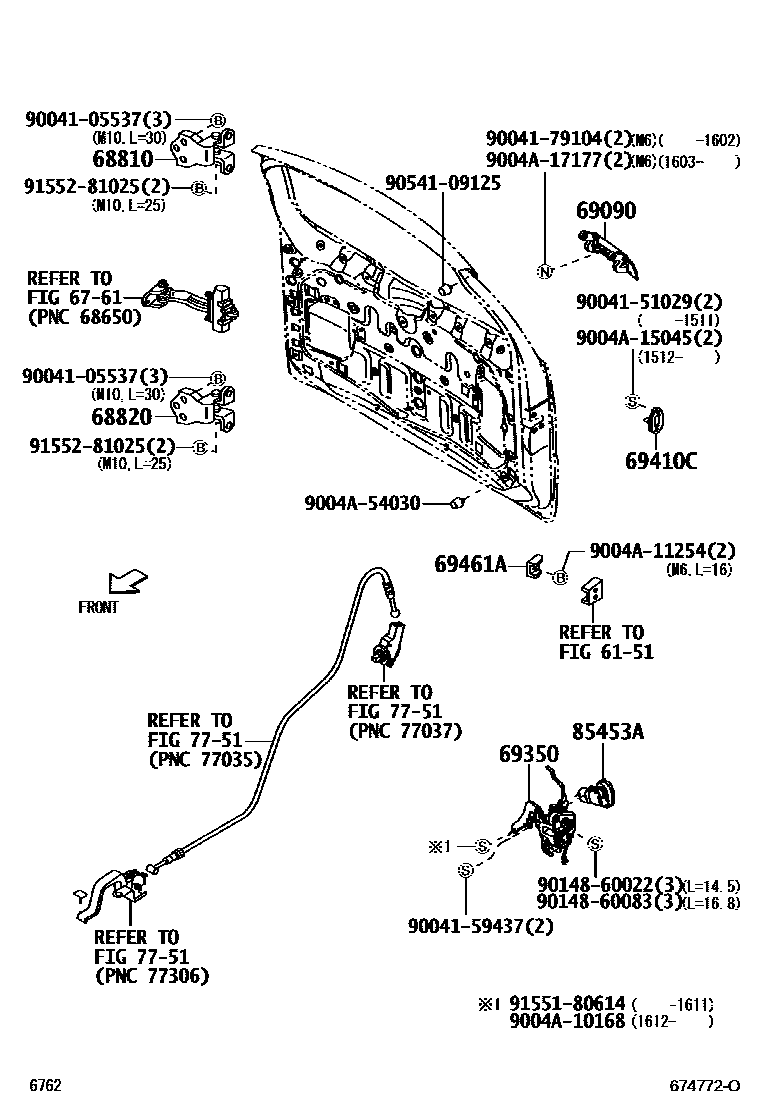

BACK DOOR LOCK & HINGE

6151

6761

68810HINGE ASSY, BACK DOOR, UPPER

main68810-BZ010iF700200612-201503

68820HINGE ASSY, BACK DOOR, LOWER

main68810-BZ010iF700200612-201503

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-BZ010iF700200612-201503

69350LOCK ASSY, BACK DOOR

main69301-BZ020iF700200612-201503

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-BZ050iF700200612-201503

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-87401iF700200612-201503

7751

85453AMOTOR, DOOR CONTROL

main85490-BZ010iF700200612-201503

9004105537

main90041-05537

9004151029

main90041-51029

9004159437

main90041-59437

9004179104

main90041-79104

9004A10168

main9004A-10168

9004A11254

main9004A-11254

9004A15045

main9004A-15045

9004A17177

main9004A-17177

9004A54030

main9004A-54030

9014860022

main90148-60022

9014860083

main90148-60083

9054109125

main90541-09125

9155180614

main91551-80614

9155281025

main91552-81025

24 parts on this diagram · 1 diagram in section
