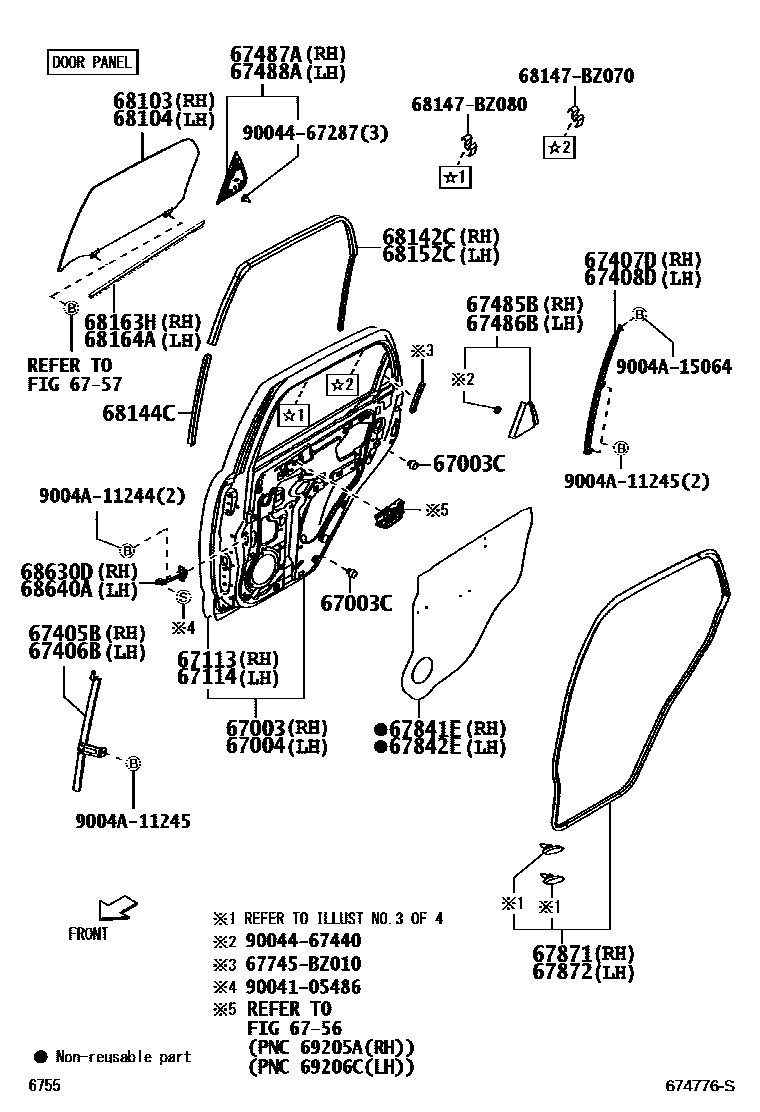

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATHERSTRIP RETAINER & CLIP 0004 1BLACK OUT TAPE

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ130iF700..MA201010-201503

main67003-BZ140iF700..IDN200612-201009

main67003-BZ420iF700201503

67003CCUSHION, REAR DOOR PANEL

main90541-09069×4iF700200612-201009

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ120iF700..MA200712-201009

main67004-BZ130iF700..IDN201010-201503

W/OVER FENDER

main67004-BZ420iF700201503

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ090iF700..MA201010-201503

main67113-BZ100iF700201503

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ090iF700..MA200712-201009

main67114-BZ100iF700..IDN200612-201009

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-BZ010iF700201503

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-BZ010iF700200612-201009

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-BZ040iF700200612-201009

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-BZ040iF700200612-201009

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-BZ020iF700200612-201009

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-BZ020iF700200612-201009

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-BZ020iF700201010-201503

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-BZ020iF700201010-201503

6756

6757

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ100iF700200612-201009

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-BZ100iF700200612-201009

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ050iF700200612-201009

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ060iF700200612-201009

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-BZ090iF700200612-200710

CLEAR

main68103-BZ100iF700200710-201009

GREEN

main68103-BZ101iF700201410-201503

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-BZ090iF700200612-200710

CLEAR

main68104-BZ100iF700200710-201009

GREEN

main68104-BZ101iF700201410-201503

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ040iF700200612-201009

68144CRUN, REAR DOOR GLASS, LOWER FRONT

main68144-BZ020×2iF700200612-201009

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ040iF700200612-201009

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-BZ050iF700200612-201009

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-BZ040iF700200612-201009

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ050iF700200612-201009

68640ACHECK ASSY, REAR DOOR, LH

main68640-BZ040iF700200612-201009

67745BZ010MOULDING, CENTER DOOR TRIM

main67745-BZ010

68147BZ070RUN, REAR DOOR WINDOW, REAR

main68147-BZ070

68147BZ080RUN, REAR DOOR WINDOW, REAR

main68147-BZ080

9004105486

main90041-05486

9004467287

main90044-67287

9004467440

main90044-67440

9004A11244

main9004A-11244

9004A11245

main9004A-11245

9004A15064

main9004A-15064

37 parts on this diagram · 4 diagrams in section
