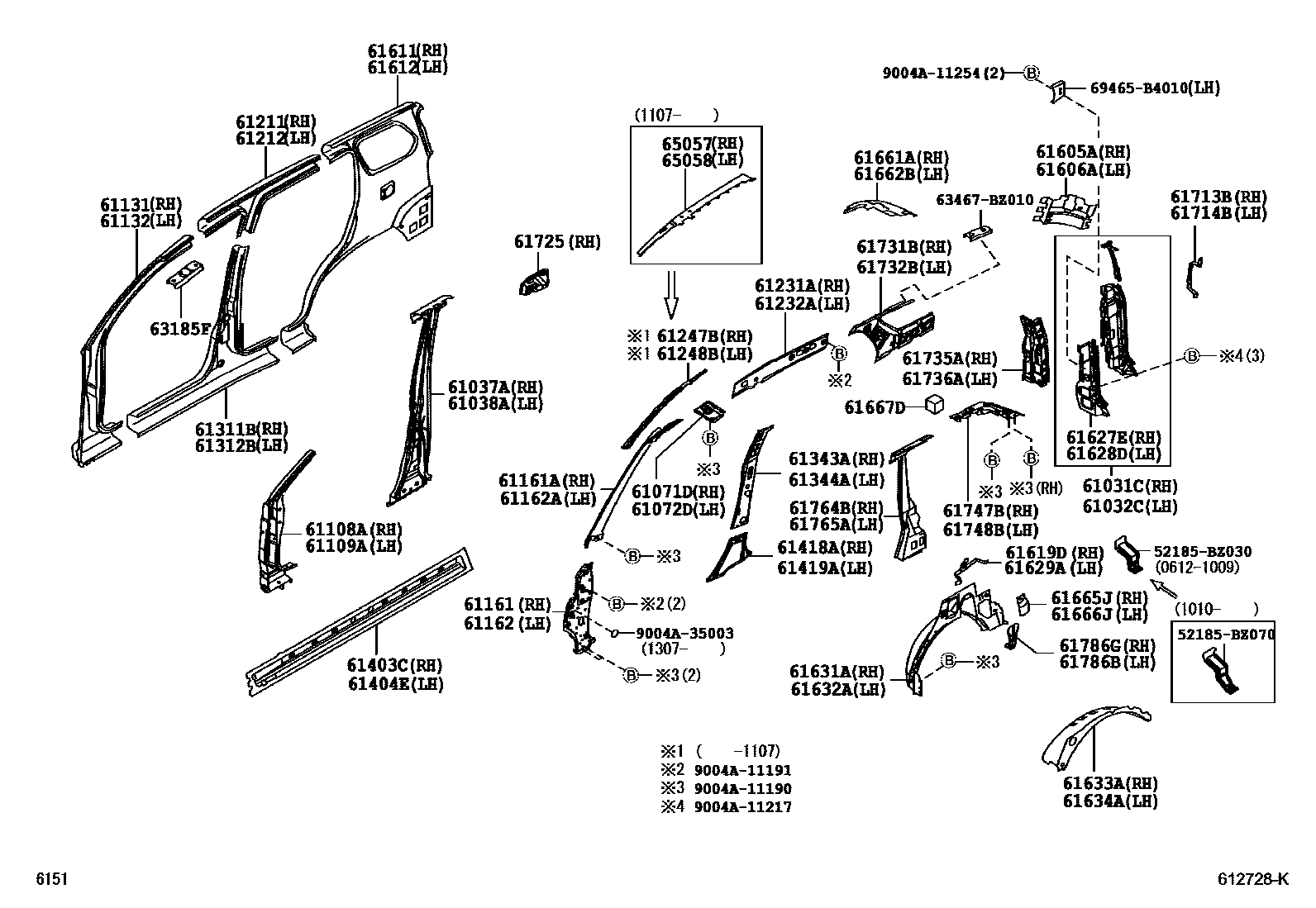

SIDE MEMBER
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
61032CEXTENSION SUB-ASSY, QUARTER PANEL, REAR LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61071DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH
61072DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
W/SIDE STONE GUARD
61132PILLAR, FRONT BODY, UPPER OUTER LH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
61161PILLAR, FRONT BODY, UPPER INNER RH
61161APILLAR, FRONT BODY, INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61162APILLAR, FRONT BODY, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231ARAIL, ROOF SIDE, INNER RH
61232ARAIL, ROOF SIDE, INNER LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
61312BPILLAR, CENTER BODY, OUTER LH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61605AREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH
61606AREINFORCEMENT SUB-ASSY, QUARTER PANEL, LH
61611PANEL, QUARTER, RH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
61612PANEL, QUARTER, LH
W/SIDE STONE GUARD
W/O SIDE STONE GUARD
61619DREINFORCEMENT, QUARTER PANEL, RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61629AREINFORCEMENT, QUARTER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W/ABS
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W/ABS
61661AEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
61665JPLATE, SEAT BELT ANCHORAGE, RH
61666JPLATE, SEAT BELT ANCHORAGE, LH
61667DSEAL, QUARTER PANEL
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61725BOX, FUEL INLET
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH
61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61786BBRACKET, REAR BUMPER SIDE, LH
61786GBRACKET, REAR BUMPER SIDE
63185FBRACKET, ROOF RACK, FRONT
65057REINFORCEMENT SUB-ASSY, SIDE PANEL, C RH
65058REINFORCEMENT SUB-ASSY, SIDE PANEL, C LH
52185BZ030BRACE, REAR BUMPER SIDE, RH
main52185-BZ030
52185BZ070BRACE, REAR BUMPER SIDE, RH
main52185-BZ070
63467BZ010BRACKET, ROOF RACK, REAR RH
main63467-BZ010
69465B4010CUSHION, TAIL GATE LOCK STRIKER, A
main69465-B4010
9004A11190
main9004A-11190
9004A11191
main9004A-11191
9004A11217
main9004A-11217
9004A11254
main9004A-11254
9004A35003
main9004A-35003
70 parts on this diagram · 1 diagram in section
