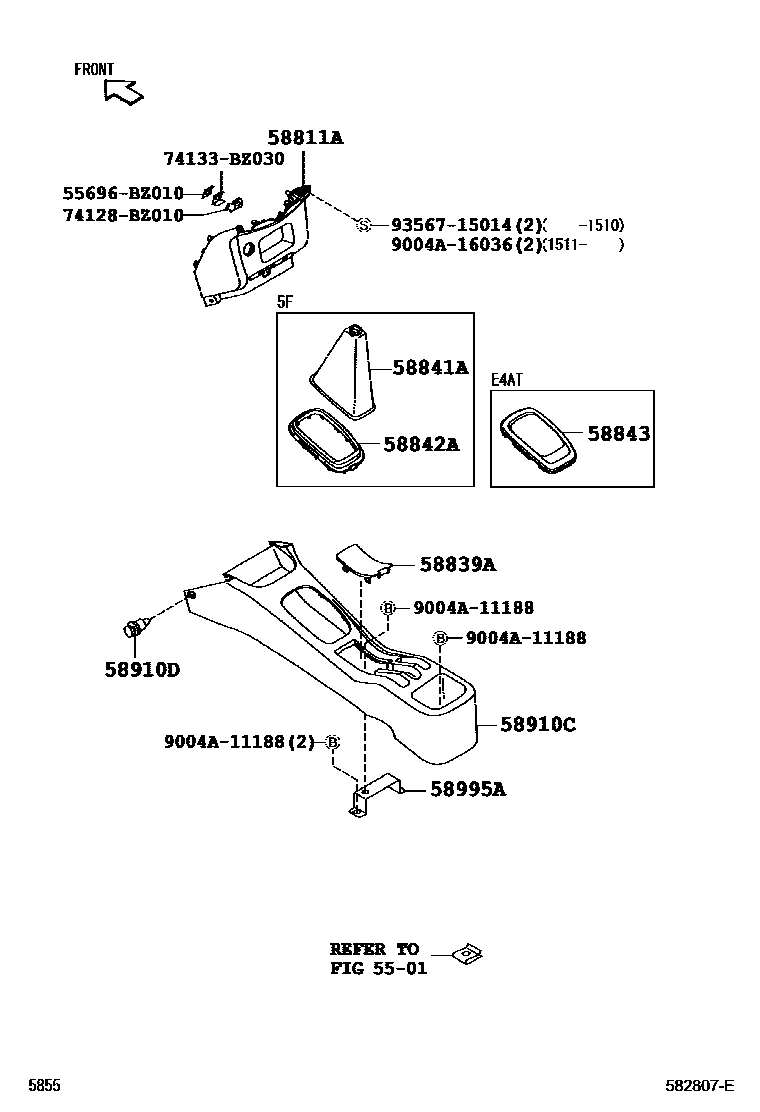

CONSOLE BOX & BRACKET

5501

58811ABOX, CONSOLE, FRONT

main58811-BZ020-B0iF700201010-201503

DK.GRAY,TRIM1#

main58811-BZ020-E0iF700200612-201009

SANDAL WOOD,TRIM4#

main58811-BZ020-E1iF700201010-201307

ASH BROWN,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-BZ020-B0iF700201010-201503

DK.GRAY,TRIM1#

main58839-BZ020-E0iF700200612-201009

SANDAL WOOD,TRIM4#

main58839-BZ020-E1iF700201010-201307

ASH BROWN,TRIM4#

58841ACOVER, SHIFTING HOLE

main58841-BZ070-B0iF700..5F201010-201307

DK.GRAY,TRIM1#

main58841-BZ070-C0iF700..5F201307-201503

BLACK,TRIM1#

main58841-BZ070-E0iF700..5F200612-201009

SANDAL WOOD,TRIM4#

main58841-BZ070-E1iF700..5F201010-201503

ASH BROWN,TRIM4#

58842AFRAME, SHIFTING HOLE

main58842-BZ010iF700..5F200612-201503

58843BEZEL, SHIFTING HOLE

main58843-BZ070-B0iF700..E4AT201010-201503

DK.GRAY,TRIM1#

main58843-BZ070-E0iF700..E4AT200612-201009

SANDAL WOOD,TRIM4#

main58843-BZ070-E1iF700..E4AT201010-201503

ASH BROWN,TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58910-BZ030-B0iF700201010-201503

DK.GRAY,TRIM1#

main58910-BZ030-E0iF700200612-201009

SANDAL WOOD,TRIM4#

main58910-BZ030-E1iF700201010-201307

ASH BROWN,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

main90044-67556-B0iF700201010-201708

DK.GRAY,TRIM1#

sub90044-67556

main90044-67556-C0iF700201708

BLACK,TRIM1#

sub90044-67556

main90044-67556-E0iF700200612-201009

SANDAL WOOD,TRIM4#

sub90044-67556

main90044-67556-E1iF700201010-201307

ASH BROWN,TRIM4#

sub90044-67556

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-BZ010iF700200612-201503

55696BZ010

main55696-BZ010

74128BZ010SUPPORT, FRONT ASH RECEPTACLE RETAINER

main74128-BZ010

74133BZ030SEAL, FRONT ASH RECEPTACLE

main74133-BZ030

9004A11188

main9004A-11188

9004A16036

main9004A-16036

9356715014

main93567-15014

15 parts on this diagram · 1 diagram in section
