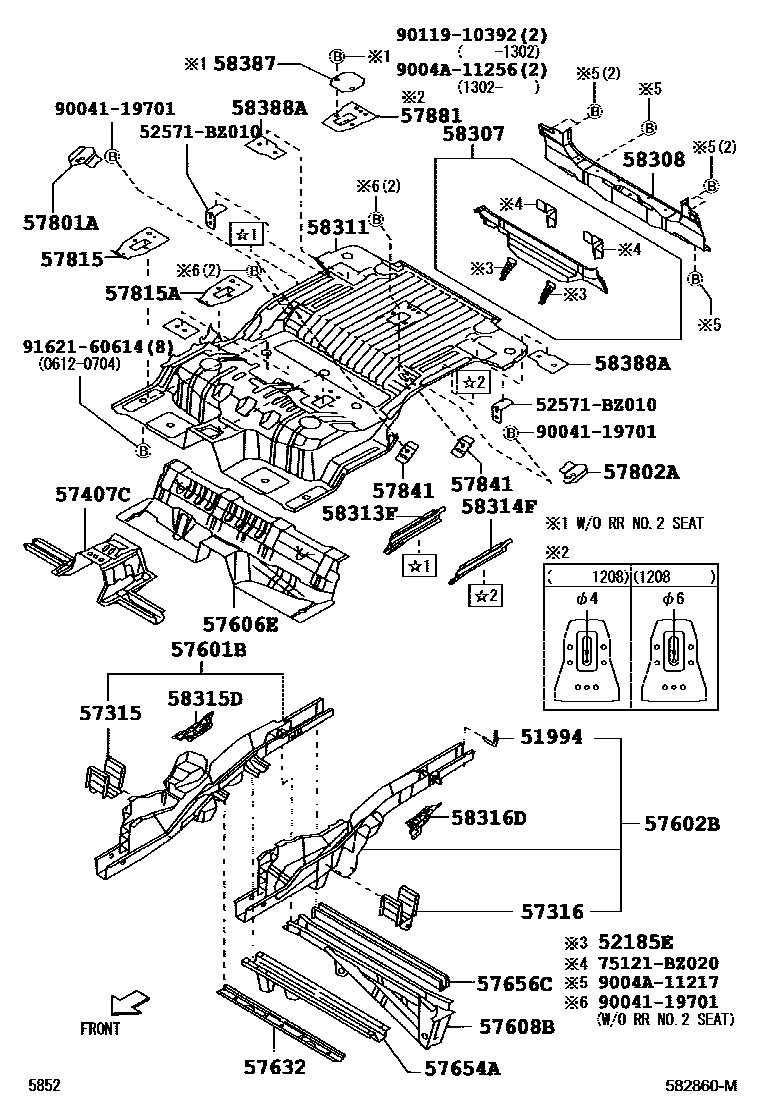

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

51994HANGER, EXHAUST PIPE, NO.4

main51994-BZ010iF700200612-201503

52185EBRACKET, REAR BUMPER SIDE MOUNTIN, RH

main52185-BZ040iF700200612-201503

57315OUTRIGGER, NO.3 RH

main57315-BZ030iF700200612-201009

main57315-BZ110iF700201010-201503

W/O SIDE STEP

main57315-BZ110iF700201503

57316OUTRIGGER, NO.3 LH

main57316-BZ030iF700200612-201009

main57316-BZ100iF700201010-201503

W/O SIDE STEP

main57316-BZ100iF700201503

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-BZ010iF700200612-201103

sub57407-BZ040

main57407-BZ040iF700201104-201503

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-BZ050iF700200612-200711

sub57601-BZ051

main57601-BZ051iF700200712-201009

main57601-BZ052iF700201010-201503

W/O SIDE STEP

main57601-BZ052iF700201503

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-BZ060iF700200612-200711

sub57602-BZ061

main57602-BZ061iF700200712-201009

main57602-BZ062iF700201010-201503

W/O SIDE STEP

main57602-BZ062iF700201503

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-BZ031iF700200612-201503

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-BZ060iF700..G201010-201503

L/ABS

main57608-BZ060iF700..G200612-201009

main57608-BZ070iF700..S200612-201009

main57608-BZ070iF700..S201010-201503

W/ABS

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-BZ010iF700200612-201503

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57607-BZ010iF700200612-201503

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-BZ010iF700¥5,300200612-201503

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57787-BZ010iF700200612-201503

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57788-BZ010iF700200612-201503

57815REINFORCEMENT, BELT ANCHOR, NO.1

main57815-BZ020iF700200612-201503

57815AREINFORCEMENT, BELT ANCHOR, RH

main57807-BZ010iF700200612-201503

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-BZ010iF700200612-201103

sub57841-BZ030

main57841-BZ030iF700201104-201110

sub57841-BZ040

main57841-BZ040iF700201111-201312

57881REINFORCEMENT, BELT ANCHOR, NO.3

main57801-BZ010iF700201511

main57801-BZ011iF700201312-201510

main57881-BZ010iF700200612-201107

sub57881-BZ011

main57881-BZ011iF700201108-201311

sub57881-BZ012

sub9004A-95060¥100

main57881-BZ012iF700201311-201312

sub57801-BZ011

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-BZ050iF700200612-201503

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-BZ060iF700200612-201503

58311PAN, REAR FLOOR

main58311-BZ060iF700200612-200711

sub58311-BZ061

main58311-BZ061iF700200712-201312

sub58311-BZ280

main58311-BZ280iF700201312-201503

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-BZ010iF700200612-201503

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-BZ010iF700200612-201503

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-BZ020iF700200612-201503

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-BZ020iF700200612-201503

58387PLATE, REAR FLOOR FINISH

main58387-BZ010iF700..IDN200612-201602

58388ABRACKET,REAR FLOOR PLATE

main72611-BZ011iF700200612-201503

sub72611-BZ030

main72611-BZ011iF700201503

W/O ID MARK

sub72611-BZ030

main72611-BZ060iF700201709

ID MARK =T

52571BZ010BRACKET, REAR BUMPER FILLER

main52571-BZ010¥200

75121BZ020COVER, DOOR PANEL AIR OUTLET, LH

main75121-BZ020

9004119701

main90041-19701¥200

9004A11217

main9004A-11217

9004A11256

main9004A-11256

9011910392

main90119-10392¥120

9162160614

main91621-60614¥120

34 parts on this diagram · 3 diagrams in section
