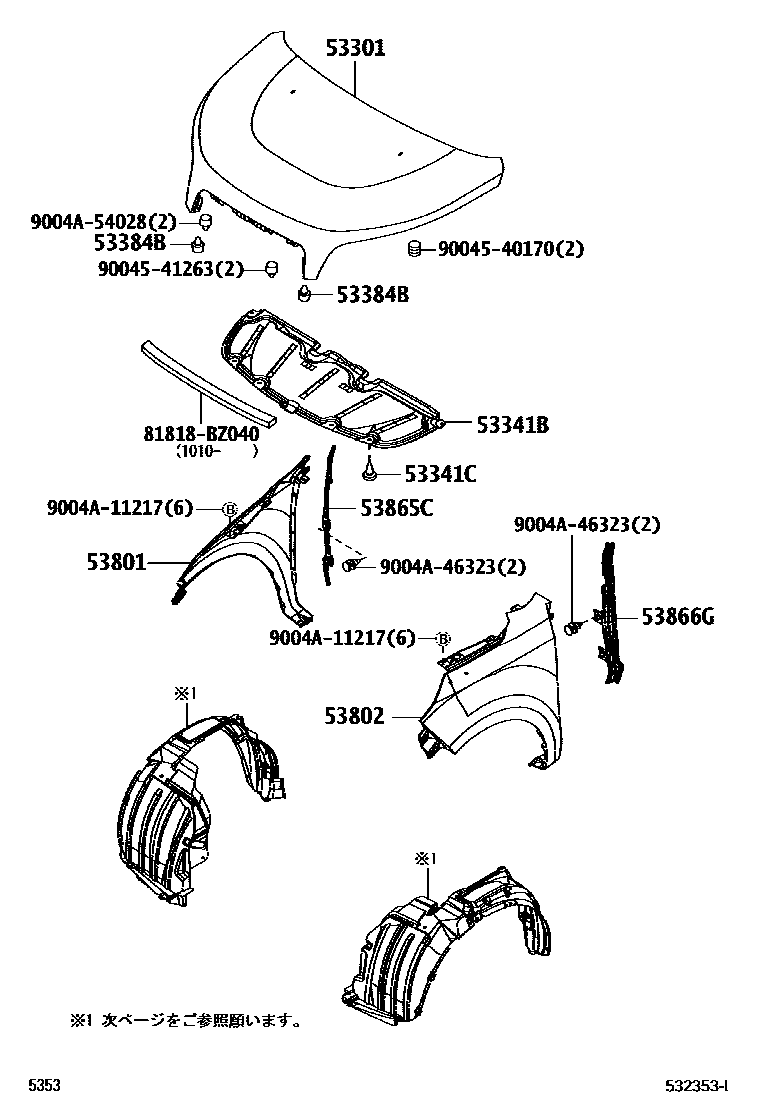

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-BZ130iF700200612-201503

main53301-BZ310iF700201503

53341BINSULATOR, HOOD

main53341-BZ020iF700200612-201503

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280iF700200612-201510

main9004A-46258iF700201511

53384BCUSHION, HOOD, CENTER

main53384-B1010iF700200612-201510

main53384-BZ020iF700201511

53801FENDER SUB-ASSY, FRONT RH

main53811-BZ130iF700..MA200712-201503

main53811-BZ140iF700201010-201503

W/OVER FENDER

main53811-BZ140iF700..IDN200612-201009

53802FENDER SUB-ASSY, FRONT LH

main53812-BZ130iF700..MA200712-201503

main53812-BZ140iF700201010-201503

W/OVER FENDER

main53812-BZ140iF700..IDN200612-201009

53865CPLATE, FRONT FENDER EXTENSION, RH

main53865-BZ040iF700200612-201503

53866GPLATE, FRONT FENDER EXTENSION, LH

main53866-BZ020iF700200612-201503

81818BZ040PACKING

main81818-BZ040

9004540170

main90045-40170

9004541263

main90045-41263

9004A11217

main9004A-11217

9004A46323

main9004A-46323

9004A54028

main9004A-54028

14 parts on this diagram · 2 diagrams in section
