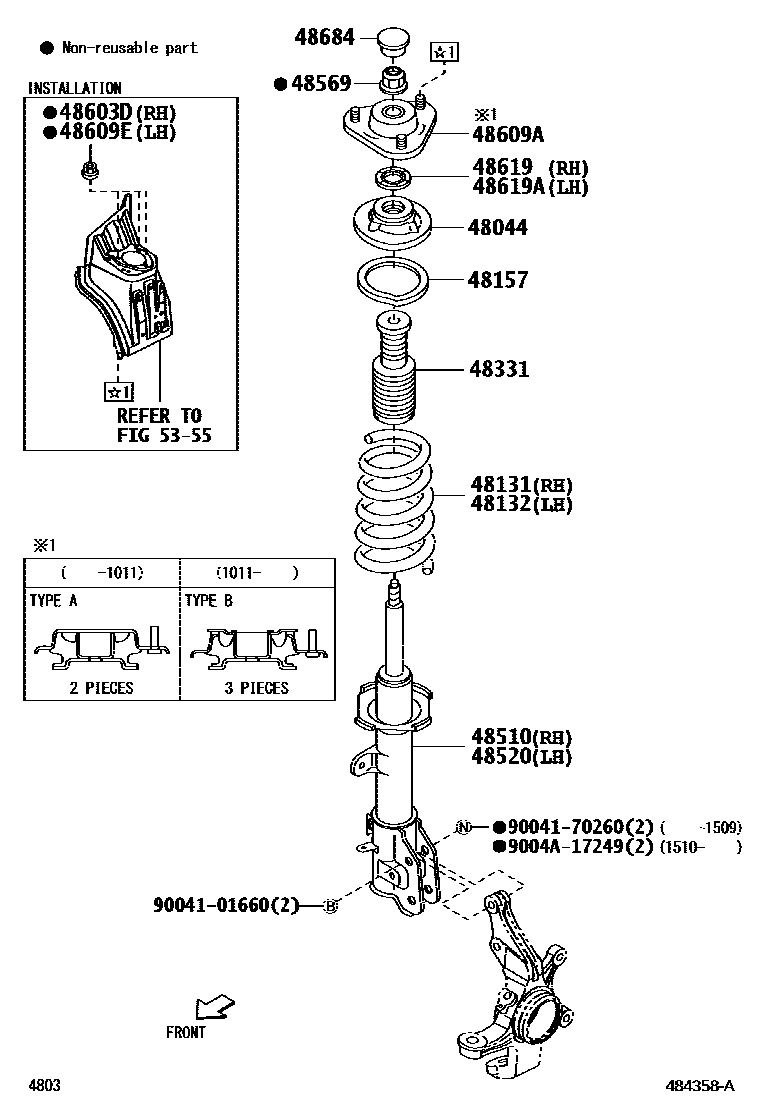

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
TIRE SIZE = 235
TRD RUSH SPECAL EDITION
48132SPRING, FRONT COIL, LH
TIRE SIZE = 235
TRD RUSH SPECAL EDITION
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-BZ300
MARK 48510-BZ560
MARK 48510-BZ560,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
MARK 48510-BZ570
MARK 48510-BZ630,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
sub48510-BZ650
MARK 48510-BZ650
MARK 48510-BZC10
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-BZD20,TRD RUSH SPECAL EDITION
MARK 48520-BZ090
MARK 48520-BZ090,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
MARK 48520-BZ150
MARK 48520-BZ280
MARK 48520-BZ530,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS
sub48520-BZ540
MARK 48520-BZ540
MARK 48520-BZ700
MARK 48520-BZ880,TRD RUSH SPECAL EDITION
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
TYPE A
TYPE B
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
RH
48619ABEARING, STRUT MOUNTING, LH
LH
48684COVER, BEARING DUST
5355
9004101660
main90041-01660
9004170260
main90041-70260
9004A17249
main9004A-17249
18 parts on this diagram · 2 diagrams in section
