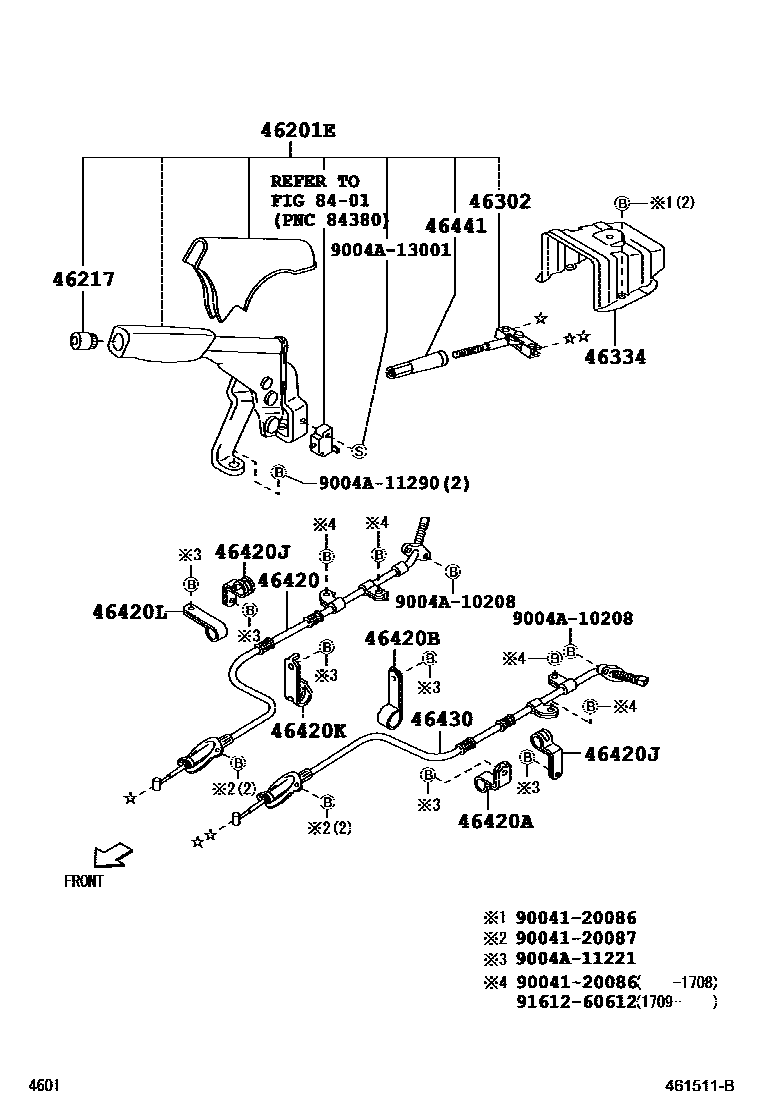

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-BZ020-B0iF700201010-201307

DK.GRAY,TRIM1#

main46210-BZ020-C0iF700201307-201503

BLACK,TRIM1#

main46210-BZ020-E0iF700200612-201009

SANDAL WOOD,TRIM4#

main46210-BZ020-E1iF700201010-201503

ASH BROWN,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-BZ010iF700201307-201503

main46217-BZ010-B0iF700..S;F700..5F..G..IDN200612-201009

DK.GRAY

main46217-BZ010-E0iF700200612-201009

SANDAL WOOD

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-87Z03iF700200612-201503

46334PROTECTOR, INTERMEDIATE LEVER

main46334-BZ010iF700200612-201503

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ051iF700200612-200910

sub46420-BZ052

main46420-BZ052iF700200911-201009

main46420-BZ120iF700201010-201503

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main9004A-46126iF700200612-201503

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main9004A-46133iF700200612-201503

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main9004A-46134iF700200612-201503

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46467-BZ010iF700200612-201503

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main9004A-46133iF700200612-201304

main9004A-46316iF700201304-201503

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ031iF700200612-200910

TYPE A

sub46430-BZ032

main46430-BZ032iF700200911-201009

TYPE A

main46430-BZ110iF700201010-201304

main46430-BZ111iF700201304-201503

46441NUT, WIRE ADJUSTING, NO.1

main46441-87Z04iF700200612-201503

8401

9004120086

main90041-20086¥60

9004120087

main90041-20087¥60

9004A10208

main9004A-10208¥110

9004A11221

main9004A-11221

9004A11290

main9004A-11290

9004A13001

main9004A-13001

9161260612

main91612-60612¥200

20 parts on this diagram · 1 diagram in section
