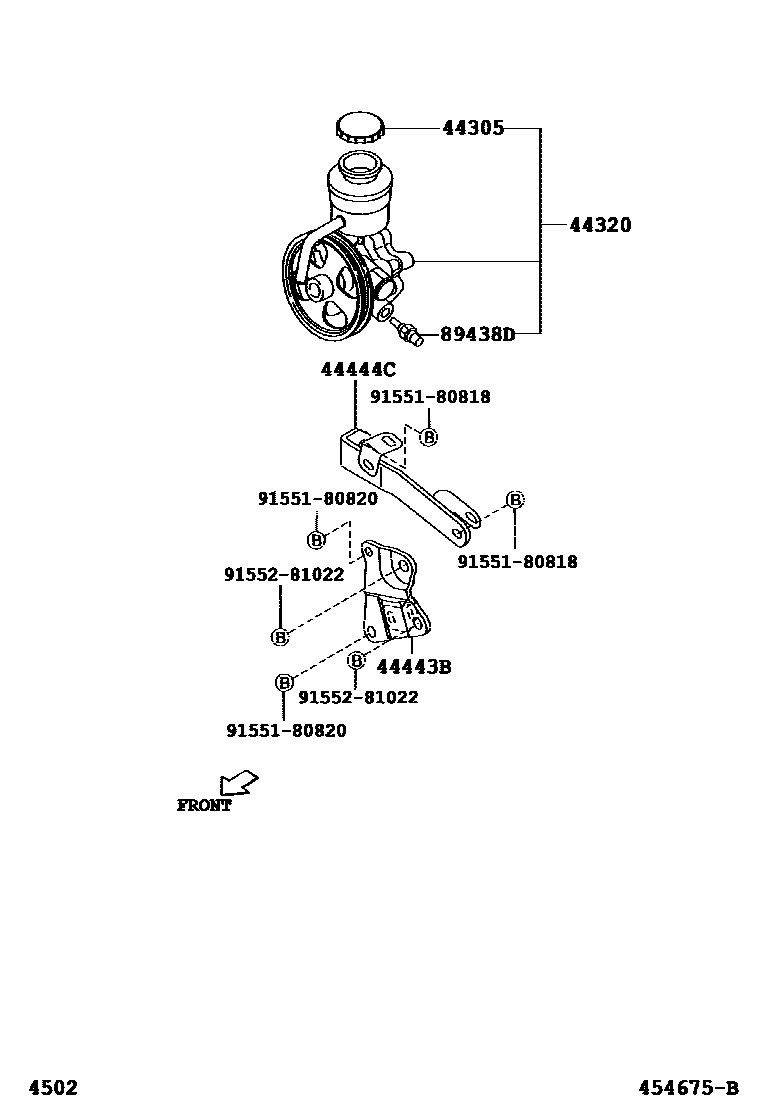

VANE PUMP & RESERVOIR (POWER STEERING)

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-BZ010iF700200612-201010

44320PUMP ASSY, VANE

main44310-BZ120iF700200612-201010

44443BBRACKET, VANE PUMP

main44443-BZ050iF700200612-201010

44444CSTAY, VANE PUMP, REAR

main44444-BZ030iF700200612-201010

89438DSWITCH, POWER STEERING OIL PRESSURE

main89438-BZ010iF700200612-201010

9155180818

main91551-80818

9155180820

main91551-80820

9155281022

main91552-81022

8 parts on this diagram · 1 diagram in section
