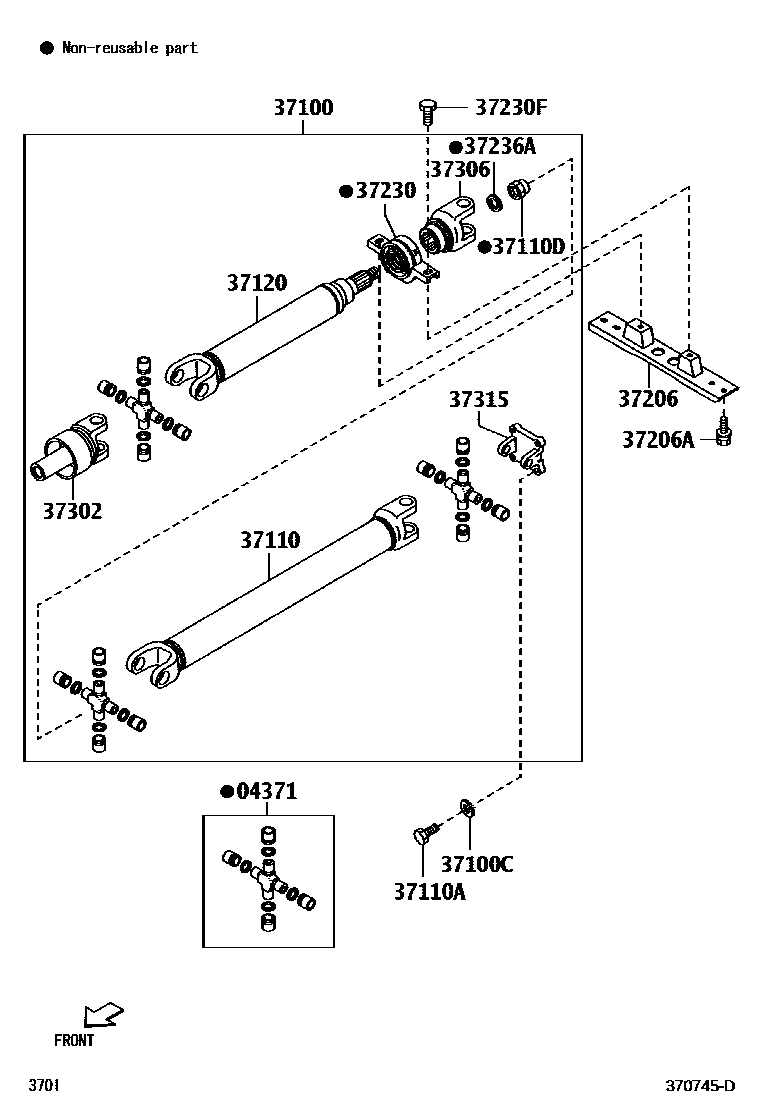

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37206BRACKET SUB-ASSY, CENTER SUPPORT BEARING
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
*10-1.25PX25-25
37236AWASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37306YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER
15 parts on this diagram · 1 diagram in section
