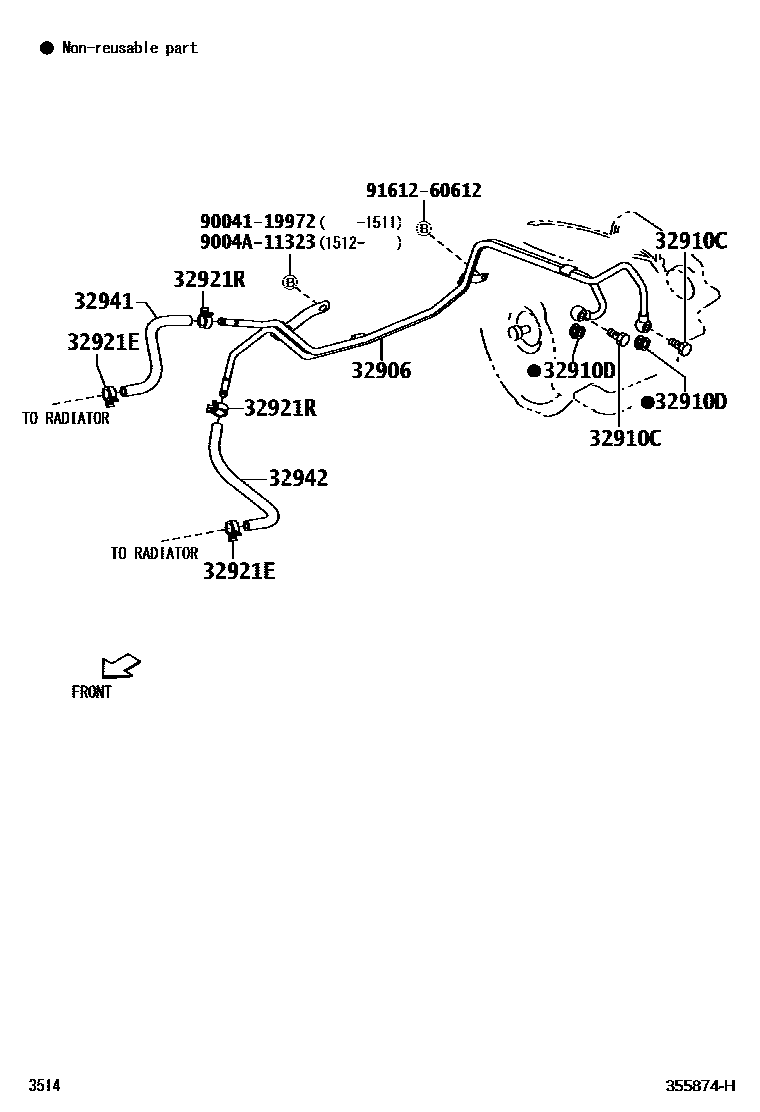

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32909-BZ010iF700..E4AT200612-201009

sub32909-BZ011

main32909-BZ011iF700..E4AT201010-201205

sub32909-BZ012

main32909-BZ012iF700..E4AT201205-201503

32910CBOLT, UNION(FOR OIL COOLER)

main90044-01081iF700..E4AT200612-201503

32910DGASKET(FOR OIL COOLER)

main90044-30302iF700..E4AT200612-201711

32921ECLAMP, HOSE(FOR OIL COOLER)

main90044-66043iF700..E4AT201201-201803

main90044-67257iF700..E4AT200612-201112

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90044-67257iF700..E4AT200612-200809

main90466-16002iF700..E4AT200809-201503

32941HOSE, OIL COOLER INLET, NO.1

main32941-B0090iF700..E4AT201205-201503

main32941-BZ060iF700..E4AT200612-200808

sub32941-BZ061

main32941-BZ061iF700..E4AT200809-201204

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-B0090iF700..E4AT201205-201503

main32942-BZ050iF700..E4AT200612-200808

sub32942-BZ051

main32942-BZ051iF700..E4AT200809-201204

9004119972

main90041-19972

9004A11323

main9004A-11323

9161260612

main91612-60612

10 parts on this diagram · 1 diagram in section
