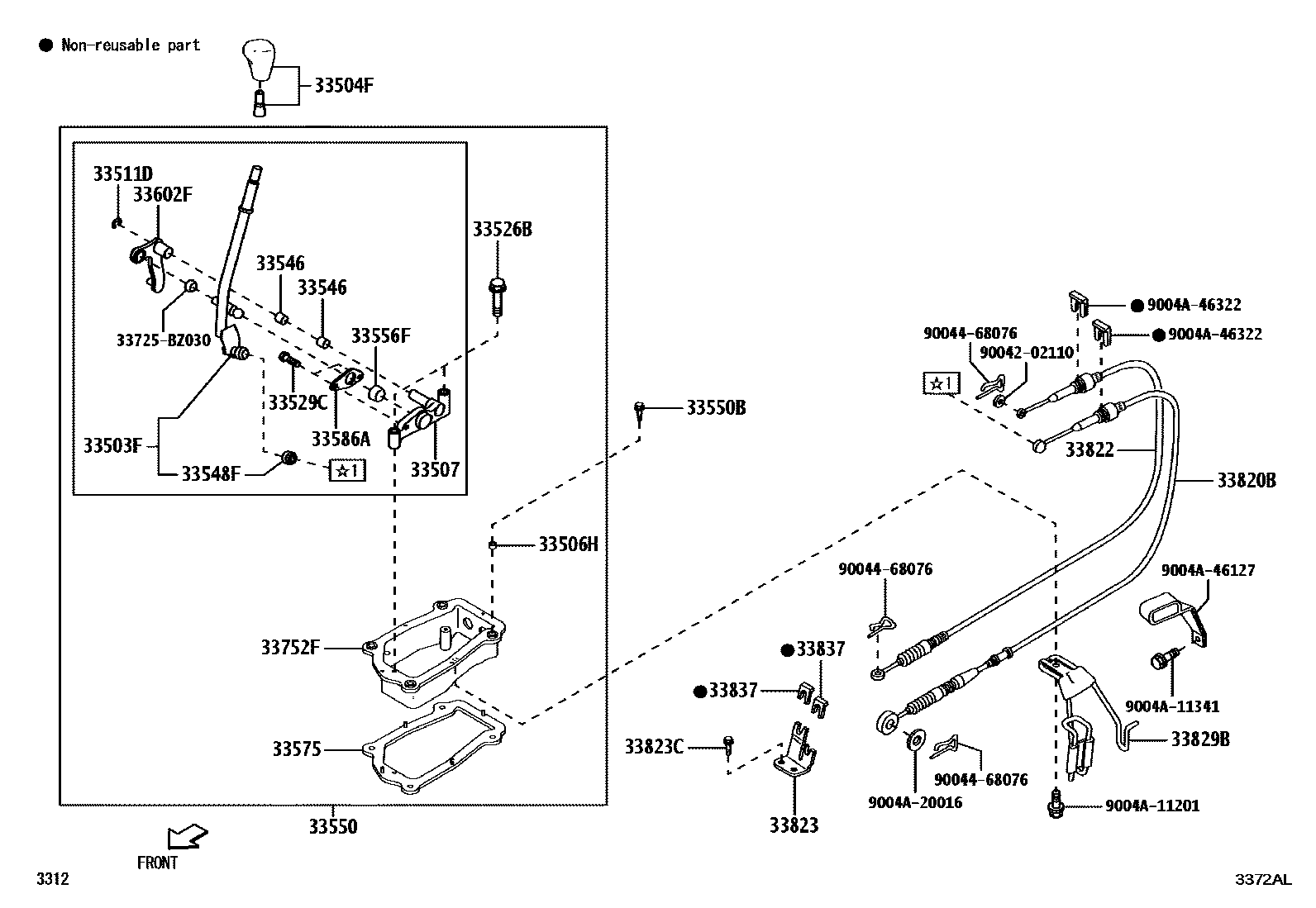

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
SANDAL WOOD,TRIM4#
SANDAL WOOD,TRIM4#
SANDAL WOOD,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM1#
ASH BROWN,TRIM4#
BLACK,TRIM1#
33506HBUSH (FOR SHIFT LEVER RETAINER)
ID=8.5
ID=11.4
33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)
33526BBOLT, SHIFT LEVER HOUSING SET
33529CBOLT, SHIFT LEVER
33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33550BBOLT, W/WASHER (FOR FLOOR SHIFT)
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)
33820BCABLE ASSY, TRANSMISSION CONTROL
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33829BCLAMP, TRANSMISSION CONTROL CABLE
33837CLIP, TRANSMISSION CONTROL CABLE ADJUST
33725BZ030
main33725-BZ030
9004202110
main90042-02110
9004468076
main90044-68076
9004A11201
main9004A-11201
9004A11341
main9004A-11341
9004A20016
main9004A-20016
9004A46127
main9004A-46127
9004A46322
main9004A-46322
30 parts on this diagram · 2 diagrams in section
