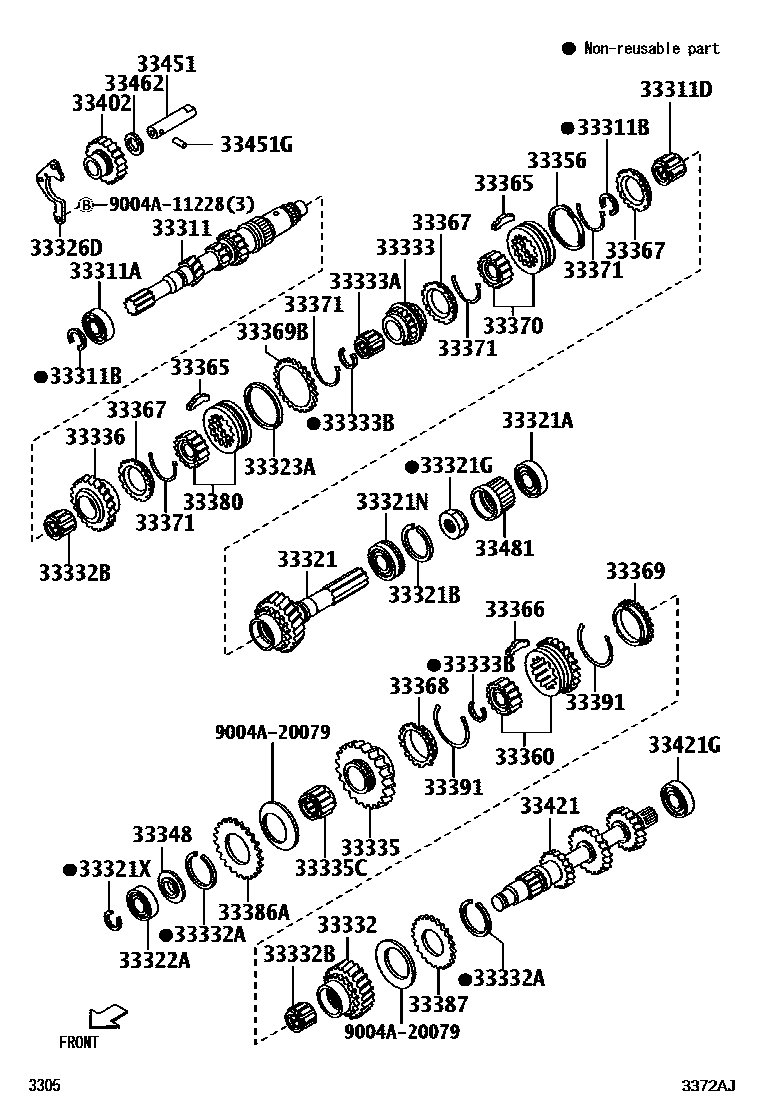

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=1.78
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
sub90043-63312
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
sub90045-21157
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
sub90041-79327
33321NBEARING (FOR OUTPUT SHAFT FRONT)
sub90043-63311
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=1.78
33322ABEARING (FOR OUTPUT SHAFT NO.2 REAR)
33332GEAR, 2ND
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
sub90043-64143
33333BRING, SHAFT SNAP (FOR 3RD REAR)
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=2.10
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90043-64034
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33356SPRING, WAVE
33360HUB ASSY, SYNCHRONIZER, NO.1
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33421GEAR, COUNTER
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33451GPIN, SLOTTED SPRING (FOR REVERSE IDLER GEAR SHAFT)
sub90042-54043
9004A11228
main9004A-11228
9004A20079
main9004A-20079
46 parts on this diagram · 1 diagram in section
