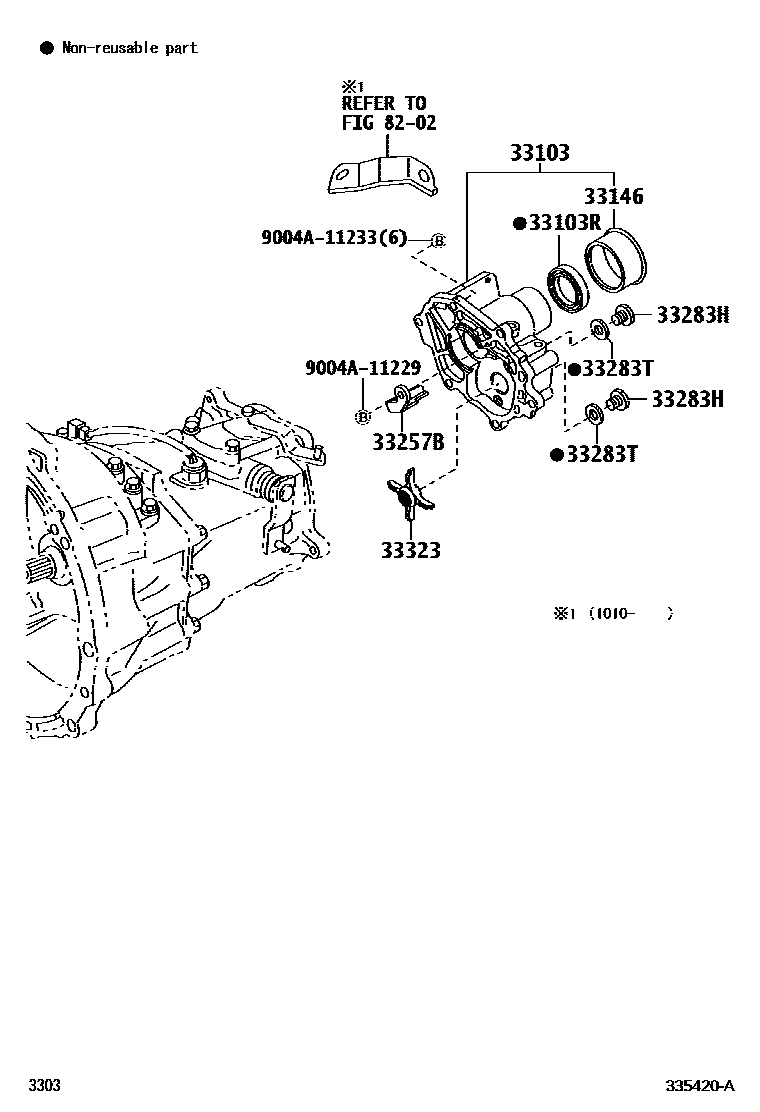

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-BZ010iF700..5F200612-200707

sub33103-BZ020

main33103-BZ020iF700..5F200708-201503

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iF700..5F200612-201503

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-BZ010iF700..5F200612-201006

sub33146-BZ040

main33146-BZ040iF700..5F201007-201503

33257BPLATE, GEAR OIL

main35345-BZ010iF700..5F200612-201503

sub35257-87501

33283HPLUG, W/HEAD STRAIGHT SCREW

main9004A-34010iF700..5F200612-201503

sub90341-16012

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006iF700..5F200612-201503

33323SLINGER, OUTPUT SHAFT OIL

main33467-BZ010iF700..5F200612-201105

sub33467-BZ020

main33467-BZ020iF700..5F201106-201503

8202

9004A11229

main9004A-11229

9004A11233

main9004A-11233

10 parts on this diagram · 1 diagram in section
