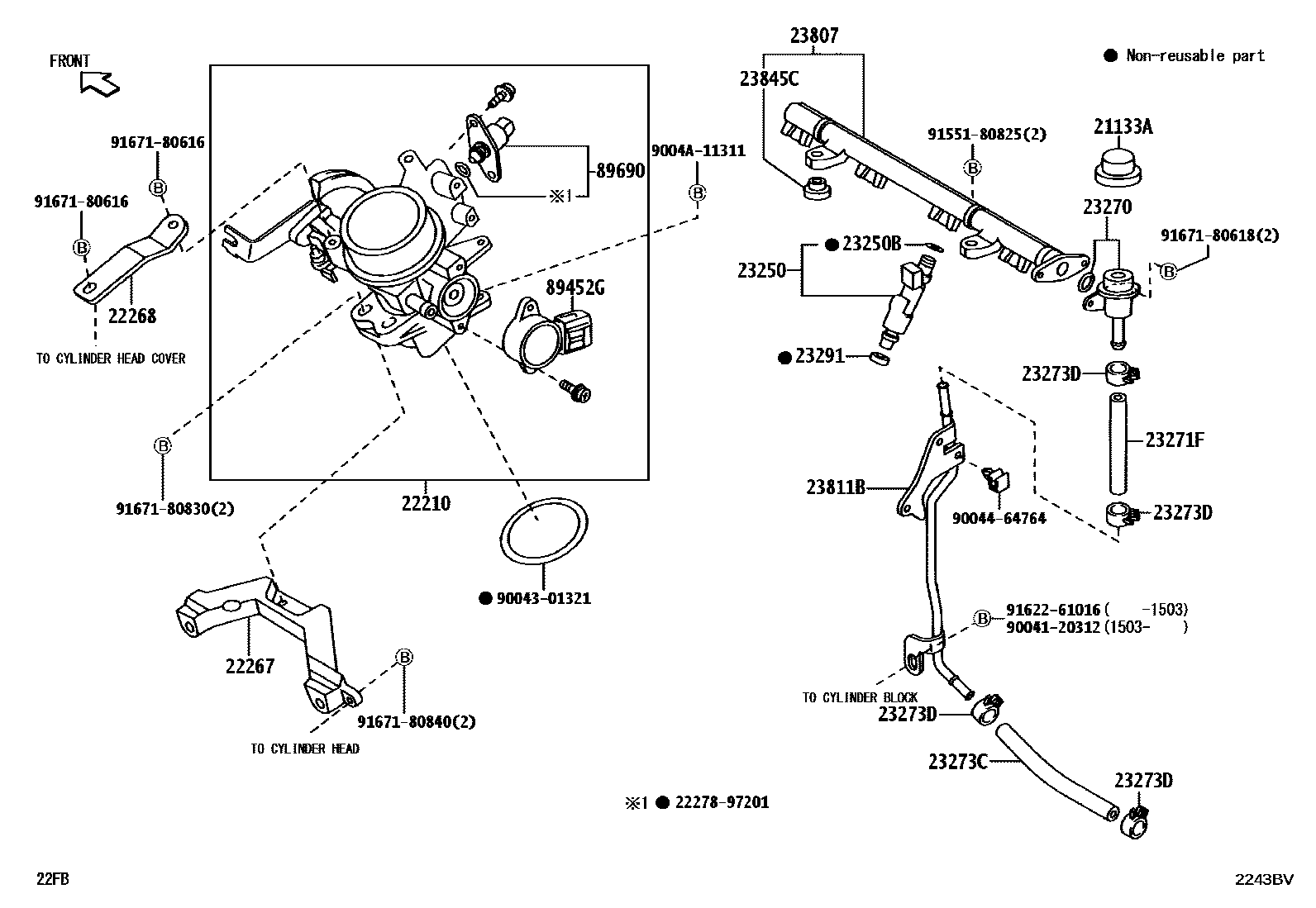

FUEL INJECTION SYSTEM

0001 1 0002 1

21133ACOVER, DUST

main21133-B0010i3SZVE..F700200612-200904

main21133-BZ020i3SZVE..F700201010-201503

22210BODY ASSY, THROTTLE

main22210-BZ080i3SZVE..F700200612-201009

main22210-BZ081i3SZVE..F700201310-201503

22267BRACKET, THROTTLE BODY

main22267-BZ020i3SZVE..F700201503

22268BRACKET, THROTTLE BODY, NO.2

main22268-BZ010i3SZVE..F700200612-201009

23250INJECTOR ASSY, FUEL

main23250-BZ010×4i3SZVE..F700200612-201009

23250BRING, O(FOR FUEL INJECTOR)

main90043-01136×4i3SZVE..F700201010-201503

main9004A-30055×4i3SZVE..F700201507

LOCAL SOURCED PARTS

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-97501i3SZVE..F700200612-201009

23271FHOSE, FUEL

main23271-B0020i3SZVE..F700200612-201009

23273CHOSE, FUEL, NO.2

main23273-B0020i3SZVE..F700200612-201003

main23273-B0021i3SZVE..F700201010-201503

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67234×4i3SZVE..F700200612-201009

main9004A-46384×4i3SZVE..F700201604

23291INSULATOR, INJECTOR VIBRATION

main23291-BZ010×4i3SZVE..F700200612-201009

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-BZ030i3SZVE..F700200612-201009

sub23807-97403

23811BPIPE, FUEL, NO.1

main23811-BZ030i3SZVE..F700200612-201003

main23811-BZ031i3SZVE..F700201003-201009

23845CINSULATOR, FUEL PIPE

main23845-BZ010×2i3SZVE..F700200612-201009

89452GSENSOR, THROTTLE POSITION

main89452-87Z01iF700200612-200901

main89452-97401iF700200902-201009

89690ACTUATOR ASSY, IDLE SPEED CONTROL

main89690-97202iF700200612-201009

sub89690-B1010

main89690-BZ010iF700201310-201503

2227897201GASKET, IDLE SPEED CONTROL VALVE

main22278-97201

9004120312

main90041-20312

9004301321

main90043-01321

9004464764

main90044-64764

9004A11311

main9004A-11311

9155180825

main91551-80825

9162261016

main91622-61016

9167180616

main91671-80616

9167180618

main91671-80618

9167180830

main91671-80830

9167180840

main91671-80840

27 parts on this diagram · 2 diagrams in section
