RADIATOR & WATER OUTLET

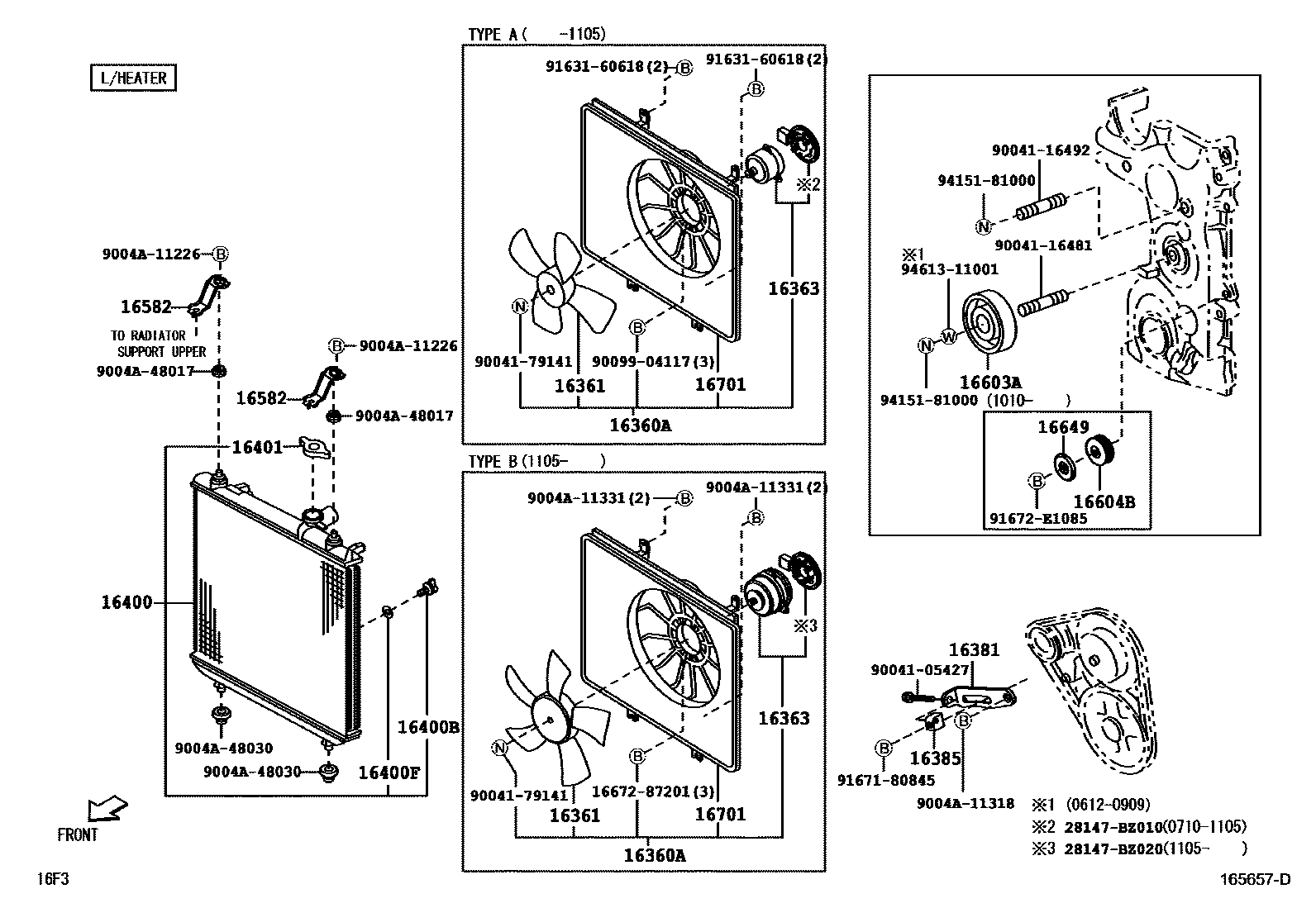

Parts diagram

16360AFAN ASSY, W/MOTOR

main16360-BZ050i200612-200709

TYPE A

main16360-BZ051i200710-201105

TYPE A

main16360-BZ210i201105-201503

TYPE B

16361FAN

main16361-BZ030i200612-201105

TYPE A

main16361-BZ090i201105-201503

TYPE B

16363MOTOR, COOLING FAN

main16363-BZ080i200612-201105

TYPE A

main16363-BZ100i201105-201503

TYPE B

16381BAR, FAN BELT ADJUSTING

main16381-BZ050i200612-201503

16385SLIDER, FAN BELT ADJUSTING

main16385-BZ010i200612-201503

16400RADIATOR ASSY

main16400-BZ170i200612-201503

main16400-BZ180i200612-201503

main16400-BZ790i201503

main16400-BZ800i201503

16400BPLUG, RADIATOR DRAIN COCK

main23322-87101i200612-201503

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201i200612-201503

16401CAP SUB-ASSY, RADIATOR

main16401-BZ010i200612-201503

16582BRACKET, RADIATOR, NO.1

main16582-BZ040i200612-201503

16603APULLEY SUB-ASSY, IDLER, NO.1

main16603-23021i200612-200702

main16603-23022i200703-200908

main16603-B0010i200909-201503

16604BPULLEY SUB-ASSY, IDLER, NO.2

main16604-B0010i201010-201503

16649PLATE, IDLER PULLEY COVER

main16649-B0010i201010-201503

16701SHROUD SUB-ASSY, FAN

main16701-BZ050i200612-201105

TYPE A

main16711-BZ050i201105-201503

TYPE B

1667287201

main16672-87201

28147BZ010

main28147-BZ010

28147BZ020

main28147-BZ020

9004105427

main90041-05427

9004116481

main90041-16481

9004116492

main90041-16492

9004179141

main90041-79141

9004A11226

main9004A-11226

9004A11318

main9004A-11318

9004A11331

main9004A-11331

9004A48017

main9004A-48017

9004A48030

main9004A-48030

9009904117

main90099-04117

9163160618

main91631-60618

9167180845

main91671-80845

91672E1085

main91672-E1085

9415181000

main94151-81000

9461311001

main94613-11001

32 parts on this diagram · 2 diagrams in section
