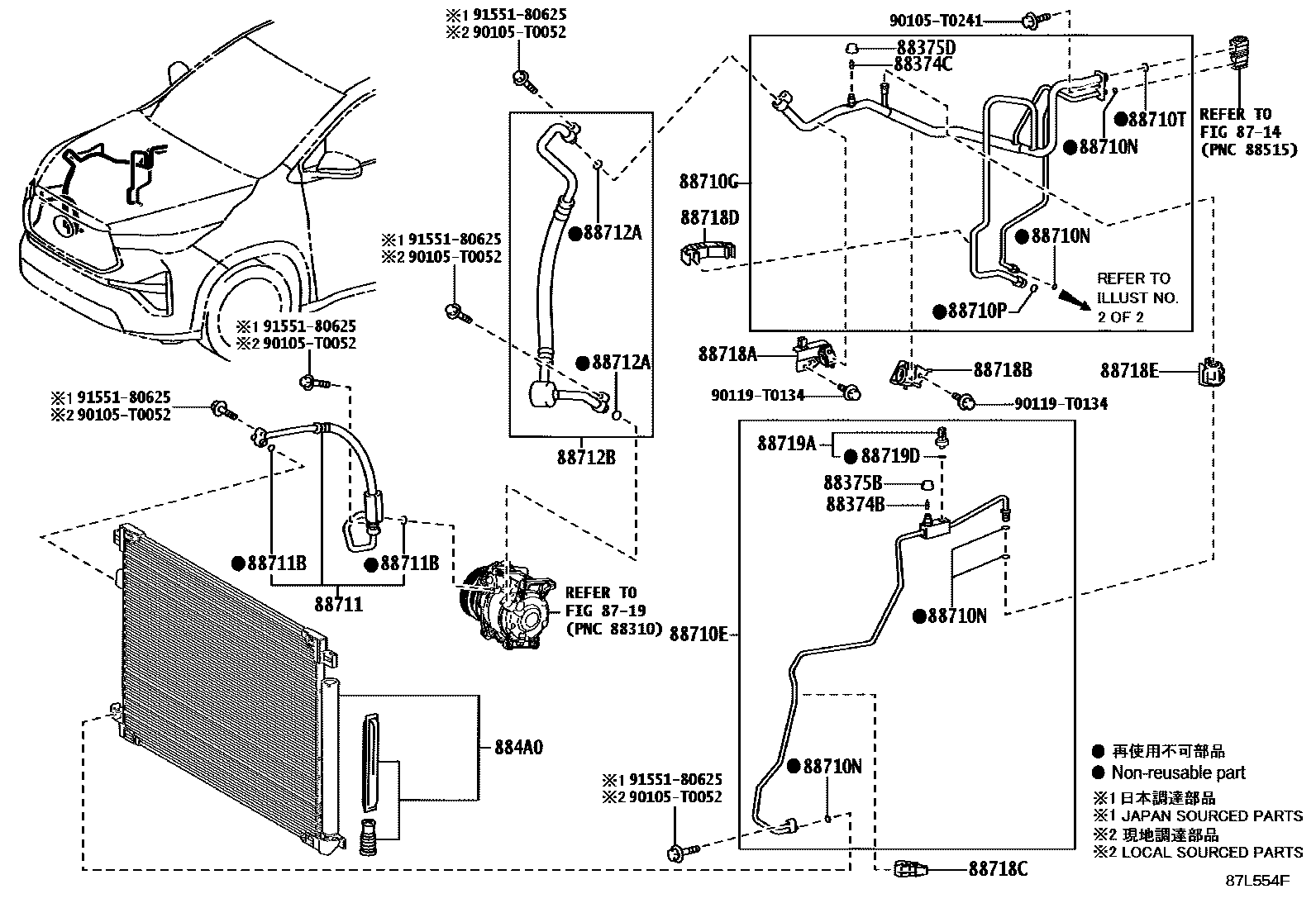

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
884A0CONDENSER ASSY, COOLER
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=10.8,OD=15.6
88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
ID=10.8,OD=15.6
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88712BHOSE, COOLER REFRIGERANT SUCTION
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
9155180625
main91551-80625
27 parts on this diagram · 9 diagrams in section
