HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0003 1FRONT WITHOUT(REAR HEATER) 0004 1FRONT WITH(REAR HEATER) 0005 1REAR

1603

8714

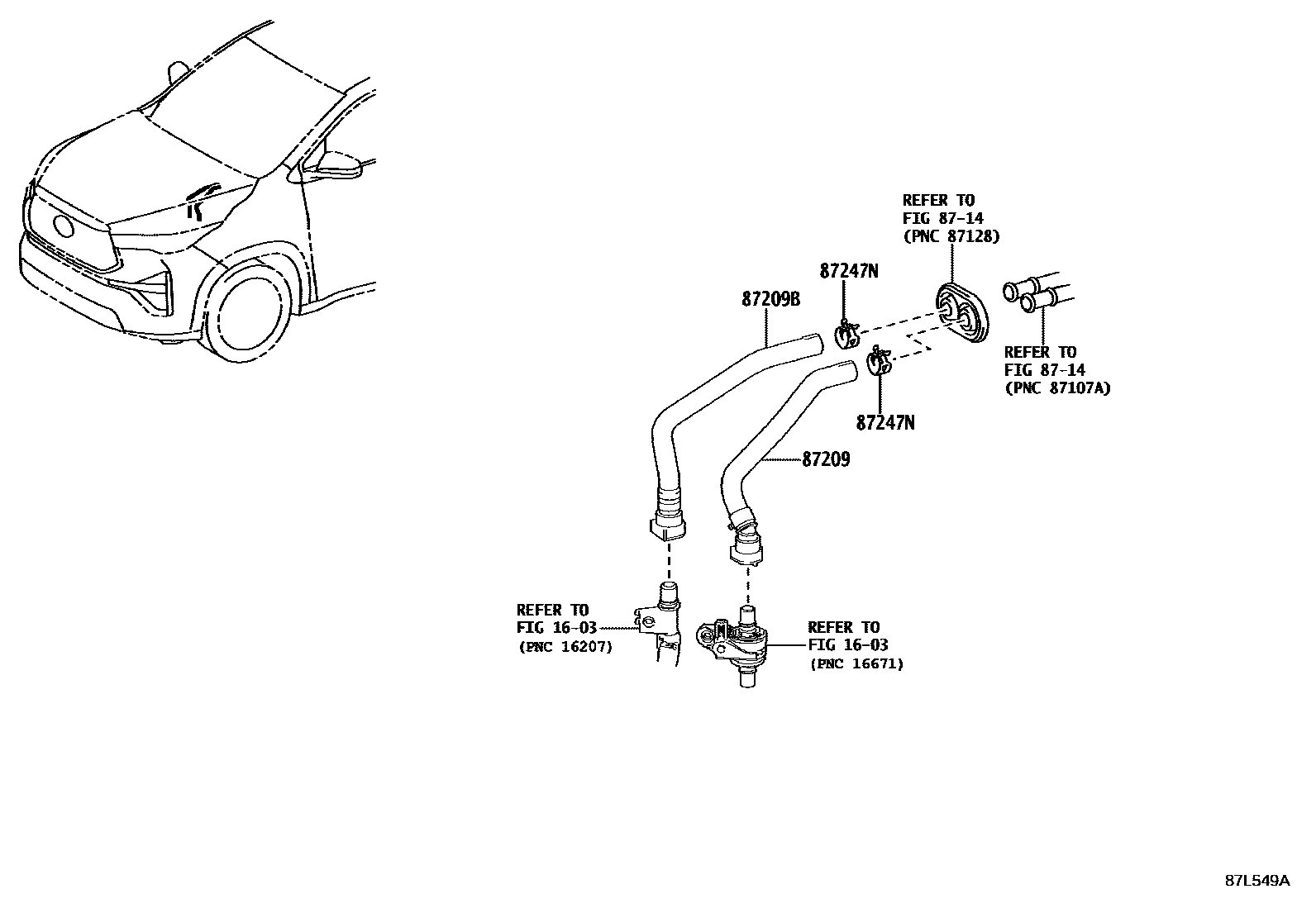

87209HOSE SUB-ASSY, WATER

main87209-V5020iMAGH10..L..GCC;MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main87209-V5050iMAGA10..H,M;MAGA10..LHD..L202211

INDONESIA PACKAGE

main87209-VT020iMAGA10..IND202212

main87209-VT060iMAGH10..(L,M)..IND202212

main87209-VT170iMAGH10..H..IND202212

87209BHOSE SUB-ASSY, WATER, B

main87209-V5010iMAGH10..L..GCC;MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main87209-V5040iMAGA10..H,M;MAGA10..LHD..L202211

INDONESIA PACKAGE

main87209-VT010iMAGA10..IND202212

main87209-VT050iMAGH10..(L,M)..IND202212

main87209-VT160iMAGH10..H..IND202212

87247NCLIP, HOSE

main90466-T0020iMAGA10,MAGH10..LHD..L;MAGA10,MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main90466-T0020iMAGA10,MAGH10..(L,M)..IND202212

(L)

main96136-42501iMAGA10,MAGH10..(L,M)..IND202212

(J)

5 parts on this diagram · 4 diagrams in section
