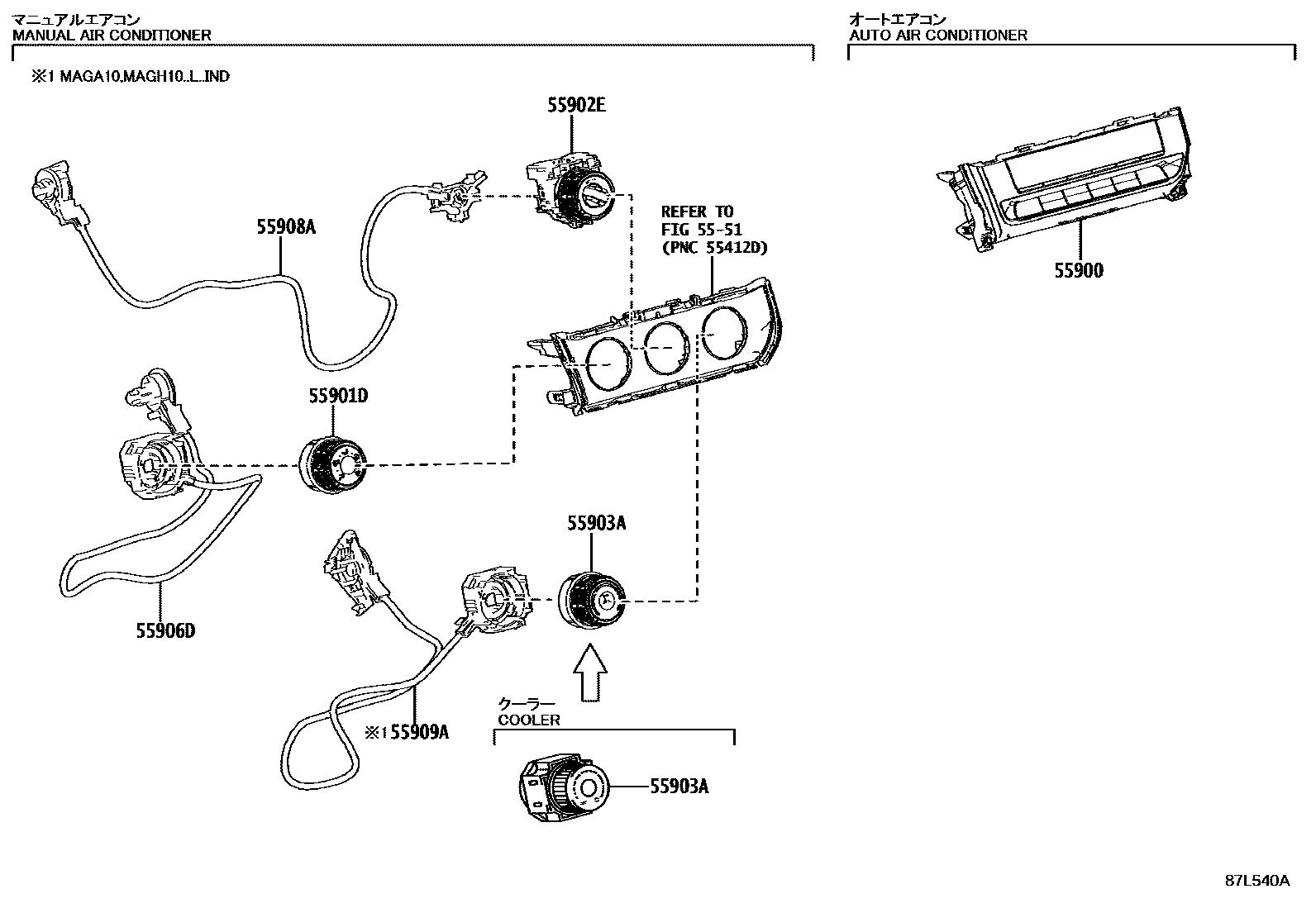

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1REAR AIR DUCT 0006 1REAR AIR DUCT 0007 1SENSOR

5551

55900CONTROL ASSY, AIR CONDITIONER

main55900-VT020iMAGH10..H..IND202212

main55900-VT030iMAGH10..M..IND202212

main55900-VT040iMAGA10,MAGH10..RHD..IDNP..(H,M)202211

main55900-VT060iMAGH10..LHD;MAGA10..M..PH;MAGA10..GCC,VN202211

main55900-VT070iMAGA10..L..PH202211

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-VT010iMAGA10..RHD..L;MAGH10..L..IDN202211

INDONESIA PACKAGE

main55901-VT020iMAGH10..L..IND202212

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-VT010iMAGA10,MAGH10..RHD..L202211

INDONESIA PACKAGE

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-VT010iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE

main55903-VT020iMAGA10,MAGH10..L..IND202212

INDIA CONVE LO+ PACKAGE

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26081iMAGA10,MAGH10..RHD..L202211

INDONESIA PACKAGE

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-VT010iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26131iMAGA10,MAGH10..L..IND202212

INDIA CONVE LO+ PACKAGE

8 parts on this diagram · 7 diagrams in section
