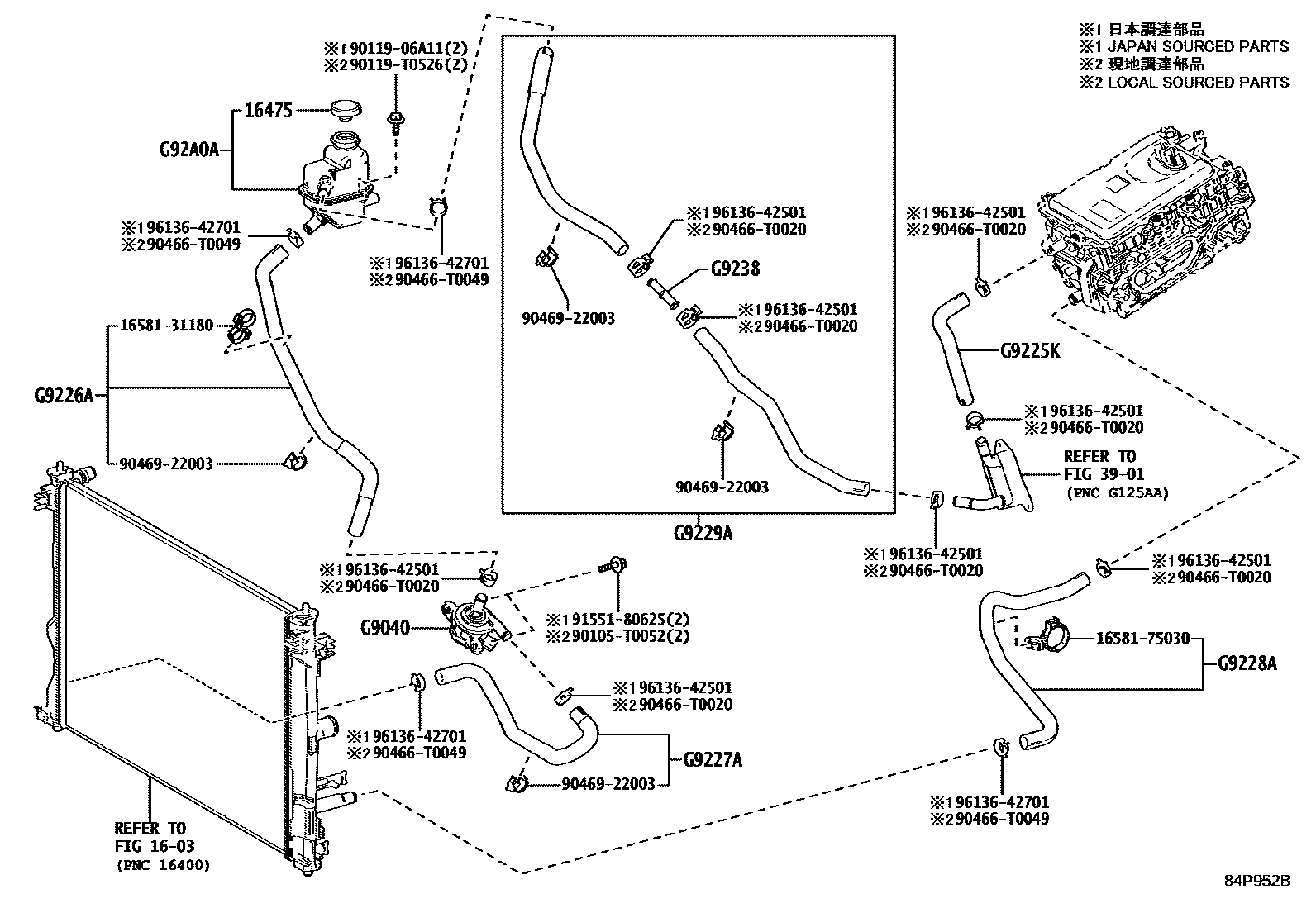

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXE..MAGH10202211

3901

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iMAGH10202211-202401

(J)

subG9040-48060

mainG9040F7010iMAGH10202211

(L)

G9225KHOSE, INVERTER COOLING, NO.1

mainG9225VT010iMAGH10..IND202212

mainG9225VT020iMAGH10..IDNP202211

G9226AHOSE, INVERTER COOLING, NO.2

mainG9226VT010iMAGH10..IND202212

mainG9226VT020iMAGH10..IDNP202211

G9227AHOSE, INVERTER COOLING, NO.3

mainG9227VT010iMAGH10..IND202212

mainG9227VT020iMAGH10..IDNP202211

G9228AHOSE, INVERTER COOLING, NO.4

mainG9228VT010iMAGH10..IND202212

mainG9228VT020iMAGH10..IDNP202211

G9229AHOSE, INVERTER COOLING, NO.5

mainG9229VT010iMAGH10..IND202212

mainG9229VT020iMAGH10..IDNP202211

G9238PIPE, INVERTER COOLING

main16268-47040iMAGH10202211

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H076010iMAGH10..IDNP202211

mainG91H0VT010iMAGH10..IND202212

1658131180CLAMP, HOSE(FOR WATER HOSE)

main16581-31180

1658175030CLAMP, HOSE(FOR WATER HOSE)

main16581-75030

90105T0052

main90105-T0052

9011906A11

main90119-06A11

90119T0526

main90119-T0526

90466T0020

main90466-T0020

90466T0049

main90466-T0049

9046922003

main90469-22003

9155180625

main91551-80625

9613642501

main96136-42501

9613642701

main96136-42701

22 parts on this diagram · 1 diagram in section
