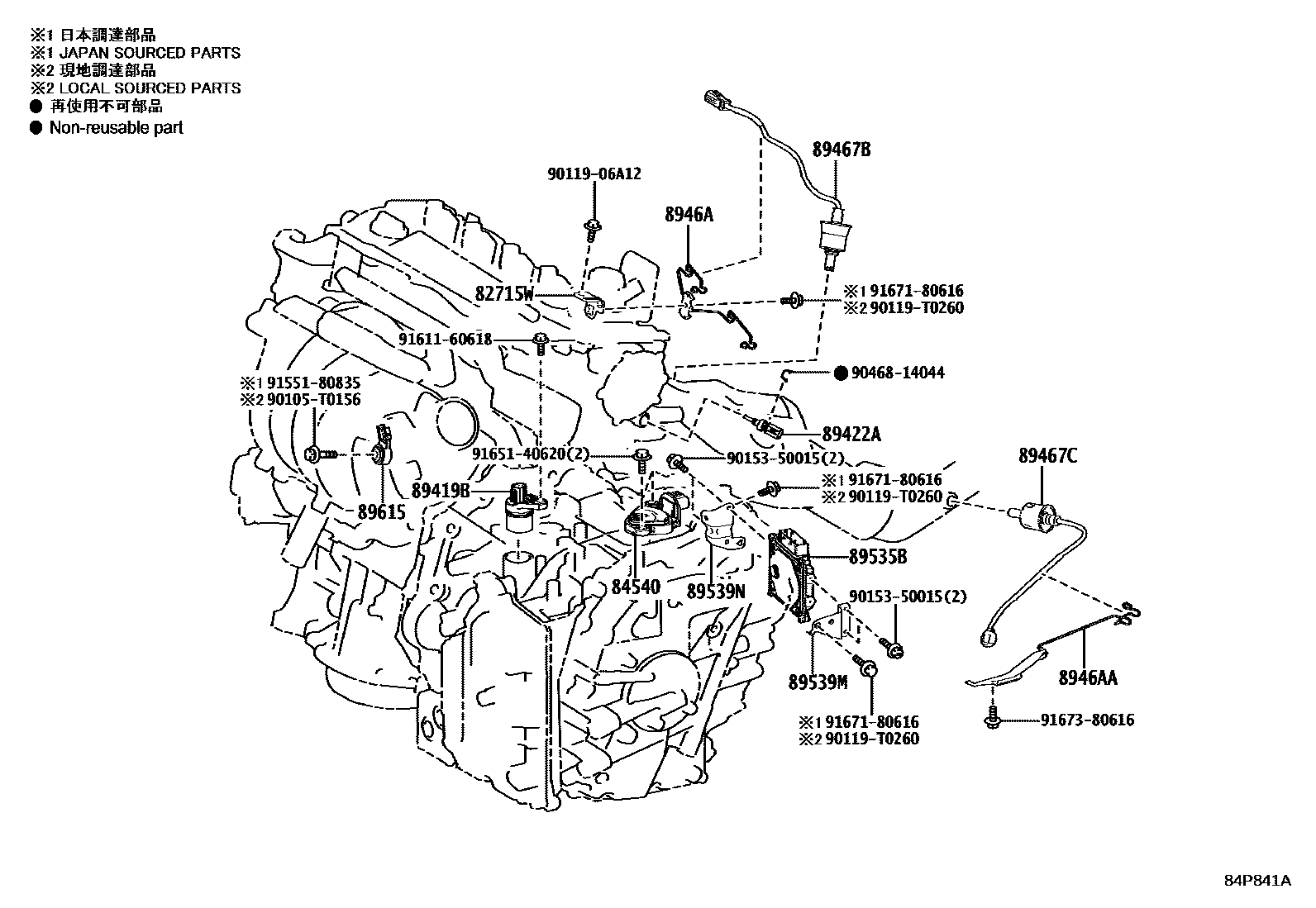

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1STEERING 0012 1FRONT SEAT 0013 1REAR SEAT 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-VT850iMAGA10,MAGH10..LHD202211

82715WBRACKET, WIRING HARNESS CLAMP

main82715-12X50iMAGA10,MAGH10202211

(J)

main8946A-F7050iMAGA10,MAGH10202211

(L)

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMAGA10202211

89419BSENSOR, SHIFT STROKE

main89419-K2010iMAGA10202211

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMAGA10,MAGH10202211

89467BSENSOR, AIR FUEL RATIO

main89467-28130iMAGA10,MAGH10202211

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-28140iMAGA10,MAGH10202211

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-28010iMAGA10,MAGH10..IND202212

main8946A-F7010iMAGA10,MAGH10..IDNP202211

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-28020iMAGA10,MAGH10..IND202212

main8946A-F7020iMAGA10,MAGH10..IDNP202211

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-63010iMAGA10..IND202212

*614

main89535-63020iMAGA10..IDN,MA,PH202211

*614

main89535-63020iMAGA10..IDN,MA,PH202211

EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS),*614

main89535-63030iMAGA10..GCC,VN202211

OCEANIA SOEC,*614

main89535-63030iMAGA10..08S..M..IDN202211

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-28030iMAGA10202211

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-63020iMAGA10202211

89615SENSOR, KNOCK CONTROL

main89615-20090iMAGA10,MAGH10202211

90105T0156

main90105-T0156

9011906A12

main90119-06A12

90119T0260

main90119-T0260

9015350015

main90153-50015

9046814044

main90468-14044

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

23 parts on this diagram · 15 diagrams in section
