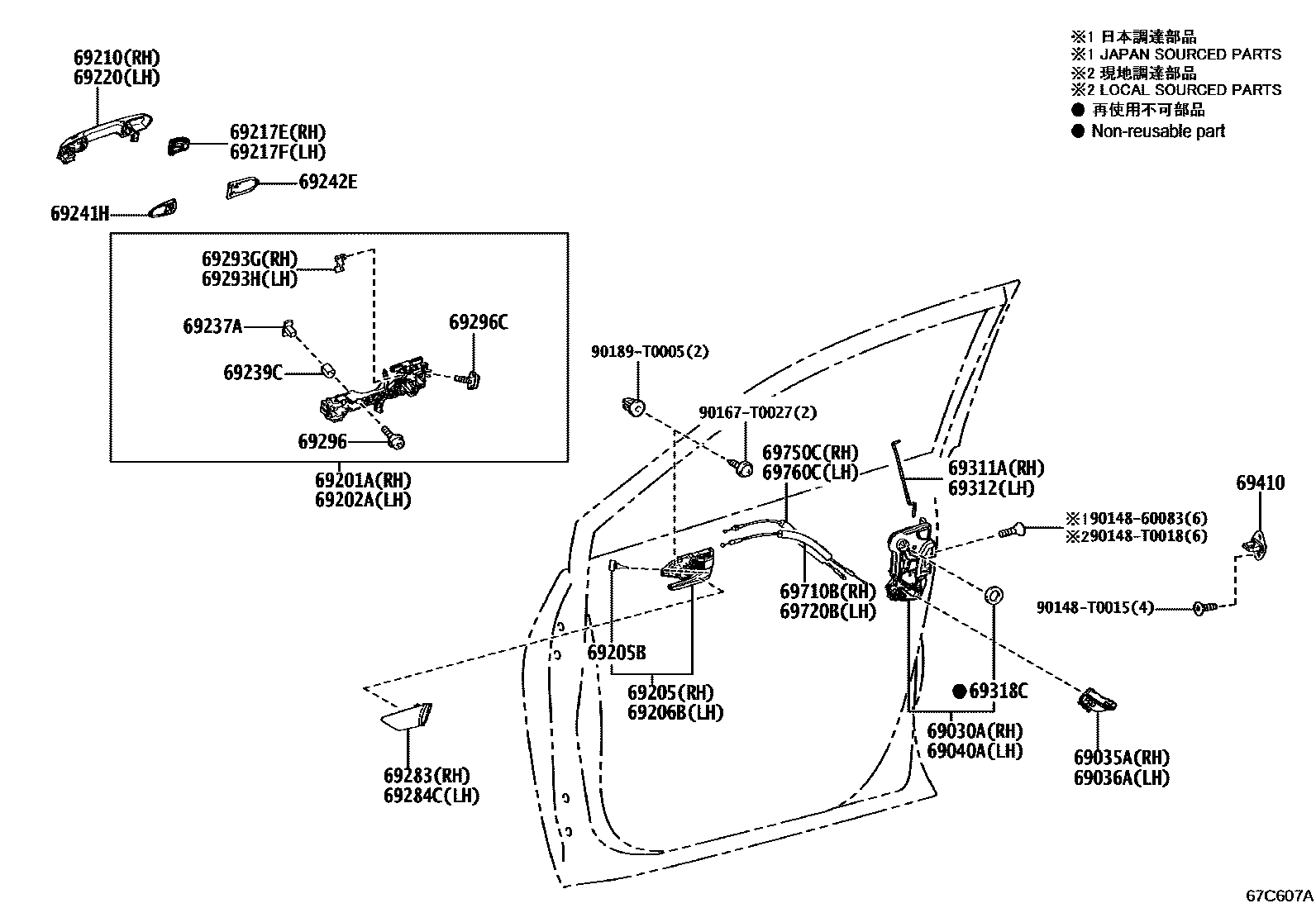

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02610iMAGA10,MAGH10..IND202212

main69030-0K090iMAGA10,MAGH10..RHD..IDNP202211

main69030-0K100iMAGA10,MAGH10..LHD202211

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iMAGA10,MAGH10..IDNP202211

main69035-02080iMAGA10,MAGH10..IND202212

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iMAGA10,MAGH10..IDNP202211

main69036-02080iMAGA10,MAGH10..IND202212

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02570iMAGA10,MAGH10..IND202212

main69040-0K030iMAGA10,MAGH10..RHD..IDNP202211

main69040-0K090iMAGA10,MAGH10..LHD202211

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-VT010iMAGA10,MAGH10..IDNP202211

main69201-VT020iMAGA10,MAGH10..IND202212

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-VT010iMAGA10,MAGH10..IDNP202211

main69202-VT020iMAGA10,MAGH10..IND202212

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0K160-C1iMAGH10..VN202211

BLACK,TRIM4#

main69205-0K160-C1iMAGH10..VN202211

BLACK,TRIM2#,4#

main69205-0K160-C1iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#

main69205-VT010-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

main69205-VT010-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iMAGA10,MAGH10202211

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0K150-C1iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main69206-0K150-C1iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main69206-0K150-C1iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main69206-VT010-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main69206-VT010-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-VT010-A0iMAGA10,MAGH10..M..IDN202211

SUPER WHITE 2,040

main69210-VT010-A0iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,SUPER WHITE 2,040

main69210-VT010-A1iMAGA10,MAGH10..L..IDN202211

PLATINUM WHITE PEARL MC.,089

main69210-VT010-A1iMAGA10,MAGH10..M..IDN202211

INDONESIA PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-VT010-B0iMAGA10,MAGH10..M..IDN202211

SILVER ME.,1D6

main69210-VT010-B0iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,SILVER ME.,1D6

main69210-VT010-B1iMAGA10,MAGH10..M..IDN202211

GRAY ME.,1G3

main69210-VT010-B1iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,GRAY ME.,1G3

main69210-VT010-B2iMAGA10,MAGH10..L..IDN202211-202508

DK. STEEL MC.,1H2

main69210-VT010-B2iMAGA10,MAGH10..L..IDN202211-202508

INDONESIA PACKAGE,DK. STEEL MC.,1H2

main69210-VT010-C0iMAGA10,MAGH10..M..IDN202211

INDONESIA PACKAGE,ATTITUDE BLACK MC.,218

main69210-VT010-C0iMAGA10,MAGH10..M..IDN202211

ATTITUDE BLACK MC.,218

main69210-VT010-E0iMAGA10,MAGH10..M..IDN202211-202508

AVANT-GARDE BRONZE ME.,4V8

main69210-VT010-E0iMAGA10,MAGH10..L..IDN202211-202508

INDONESIA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-VT010-E1iMAGA10,MAGH10..L..IDN202211-202508

INDONESIA PACKAGE,BLACKISH BROWN MC.,4X9

main69210-VT010-E1iMAGA10,MAGH10..M..IDN202211-202508

BLACKISH BROWN MC.,4X9

main69210-VT030-A0iMAGA10..VN;MAGA10..M..PH202211

SUPER WHITE 2,040

main69210-VT030-A1iMAGA10..VN;MAGA10..M..PH202211

PLATINUM WHITE PEARL MC.,089

main69210-VT030-B0iMAGA10..VN;MAGA10..M..PH202211

SILVER ME.,1D6

main69210-VT030-B1iMAGA10..VN;MAGA10..M..PH202211

GRAY ME.,1G3

main69210-VT030-B2iMAGA10..VN;MAGA10..M..PH202211-202508

DK. STEEL MC.,1H2

main69210-VT030-C0iMAGA10..VN;MAGA10..M..PH202211

ATTITUDE BLACK MC.,218

main69210-VT030-E0iMAGA10..VN;MAGA10..M..PH202211-202508

AVANT-GARDE BRONZE ME.,4V8

main69210-VT030-E1iMAGA10..VN;MAGA10..M..PH202211-202508

BLACKISH BROWN MC.,4X9

main69210-VT040-A0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,SUPER WHITE 2,040

main69210-VT040-A1iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT040-B0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,SILVER ME.,1D6

main69210-VT040-B1iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,GRAY ME.,1G3

main69210-VT040-B2iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,DK. STEEL MC.,1H2

main69210-VT040-C0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,ATTITUDE BLACK MC.,218

main69210-VT040-E0iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69210-VT040-E1iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,BLACKISH BROWN MC.,4X9

main69210-VT050-A0iMAGH10..LHD..H202211

PLATED,SUPER WHITE 2,040

main69210-VT050-A1iMAGH10..LHD..H202211

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT050-B0iMAGH10..LHD..H202211

PLATED,SILVER ME.,1D6

main69210-VT050-B1iMAGH10..LHD..H202211

PLATED,GRAY ME.,1G3

main69210-VT050-B2iMAGH10..LHD..H202211-202508

PLATED,DK. STEEL MC.,1H2

main69210-VT050-C0iMAGH10..LHD..H202211

PLATED,ATTITUDE BLACK MC.,218

main69210-VT050-E0iMAGH10..LHD..H202211-202508

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69210-VT050-E1iMAGH10..LHD..H202211-202508

PLATED,BLACKISH BROWN MC.,4X9

main69210-VT070-A0iMAGA10,MAGH10..(L,M)..IND202212

SUPER WHITE 2,040

main69210-VT070-A1iMAGA10,MAGH10..(L,M)..IND202212

PLATINUM WHITE PEARL MC.,089

main69210-VT070-B0iMAGA10,MAGH10..(L,M)..IND202212

SILVER ME.,1D6

main69210-VT070-C0iMAGA10,MAGH10..(L,M)..IND202212

ATTITUDE BLACK MC.,218

main69210-VT070-C1iMAGA10,MAGH10..(L,M)..IND202212-202503

SPARKLING BLACK PEARL CS.,220

main69210-VT070-C2iMAGA10,MAGH10..(L,M)..IND202212

BLACKISH AGEHA GF.,221

main69210-VT070-E0iMAGA10,MAGH10..(L,M)..IND202212

AVANT-GARDE BRONZE ME.,4V8

main69210-VT090-A0iMAGH10..H..IND202212

PLATED,SUPER WHITE 2,040

main69210-VT090-A1iMAGH10..H..IND202212

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT090-B0iMAGH10..H..IND202212

PLATED,SILVER ME.,1D6

main69210-VT090-C0iMAGH10..H..IND202212

PLATED,ATTITUDE BLACK MC.,218

main69210-VT090-C1iMAGH10..H..IND202212-202503

PLATED,SPARKLING BLACK PEARL CS.,220

main69210-VT090-C2iMAGH10..H..IND202212

PLATED,BLACKISH AGEHA GF.,221

main69210-VT090-E0iMAGH10..H..IND202212

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69211-VT900iMAGA10,MAGH10..L..IDN202211

PAINT REQ.

main69211-VT901iMAGA10,MAGH10..L..(GCC,PH)202211

PAINT REQ.

main69211-VT902iMAGA10,MAGH10..L..IND202212

PAINT REQ.,INDIA PACKAGE

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-30140iMAGA10,MAGH10..LHD202211

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-30140iMAGH10..RHD..IDNP;MAGA10..08S..M..IDN;MAGA10..RHD..IDNP..(H,L)202211

main69217-VT020iMAGA10,MAGH10..IND202212

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-VT010-A0iMAGA10..VN;MAGA10..M..PH202211

SUPER WHITE 2,040

main69210-VT010-A1iMAGA10..VN;MAGA10..M..PH202211

PLATINUM WHITE PEARL MC.,089

main69210-VT010-B0iMAGA10..VN;MAGA10..M..PH202211

SILVER ME.,1D6

main69210-VT010-B1iMAGA10..VN;MAGA10..M..PH202211

GRAY ME.,1G3

main69210-VT010-B2iMAGA10..VN;MAGA10..M..PH202211-202508

DK. STEEL MC.,1H2

main69210-VT010-C0iMAGA10..VN;MAGA10..M..PH202211

ATTITUDE BLACK MC.,218

main69210-VT010-E0iMAGA10..VN;MAGA10..M..PH202211-202508

AVANT-GARDE BRONZE ME.,4V8

main69210-VT010-E1iMAGA10..VN;MAGA10..M..PH202211-202508

BLACKISH BROWN MC.,4X9

main69210-VT030-A0iMAGA10,MAGH10..L..IDN202211

SUPER WHITE 2,040

main69210-VT030-A0iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,SUPER WHITE 2,040

main69210-VT030-A1iMAGA10,MAGH10..L..IDN202211

PLATINUM WHITE PEARL MC.,089

main69210-VT030-A1iMAGA10,MAGH10..M..IDN202211

INDONESIA PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-VT030-B0iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,SILVER ME.,1D6

main69210-VT030-B0iMAGA10,MAGH10..L..IDN202211

SILVER ME.,1D6

main69210-VT030-B1iMAGA10,MAGH10..M..IDN202211

GRAY ME.,1G3

main69210-VT030-B1iMAGA10,MAGH10..M..IDN202211

INDONESIA PACKAGE,GRAY ME.,1G3

main69210-VT030-B2iMAGA10,MAGH10..L..IDN202211-202508

DK. STEEL MC.,1H2

main69210-VT030-B2iMAGA10,MAGH10..M..IDN202211-202508

INDONESIA PACKAGE,DK. STEEL MC.,1H2

main69210-VT030-C0iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE,ATTITUDE BLACK MC.,218

main69210-VT030-C0iMAGA10,MAGH10..L..IDN202211

ATTITUDE BLACK MC.,218

main69210-VT030-E0iMAGA10,MAGH10..M..IDN202211-202508

INDONESIA PACKAGE,AVANT-GARDE BRONZE ME.,4V8

main69210-VT030-E0iMAGA10,MAGH10..L..IDN202211-202508

AVANT-GARDE BRONZE ME.,4V8

main69210-VT030-E1iMAGA10,MAGH10..M..IDN202211-202508

BLACKISH BROWN MC.,4X9

main69210-VT030-E1iMAGA10,MAGH10..M..IDN202211-202508

INDONESIA PACKAGE,BLACKISH BROWN MC.,4X9

main69210-VT040-A0iMAGH10..LHD..H202211

PLATED,SUPER WHITE 2,040

main69210-VT040-A1iMAGH10..LHD..H202211

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT040-B0iMAGH10..LHD..H202211

PLATED,SILVER ME.,1D6

main69210-VT040-B1iMAGH10..LHD..H202211

PLATED,GRAY ME.,1G3

main69210-VT040-B2iMAGH10..LHD..H202211-202508

PLATED,DK. STEEL MC.,1H2

main69210-VT040-C0iMAGH10..LHD..H202211

PLATED,ATTITUDE BLACK MC.,218

main69210-VT040-E0iMAGH10..LHD..H202211-202508

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69210-VT040-E1iMAGH10..LHD..H202211-202508

PLATED,BLACKISH BROWN MC.,4X9

main69210-VT050-A0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,SUPER WHITE 2,040

main69210-VT050-A1iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT050-B0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,SILVER ME.,1D6

main69210-VT050-B1iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,GRAY ME.,1G3

main69210-VT050-B2iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,DK. STEEL MC.,1H2

main69210-VT050-C0iMAGA10,MAGH10..RHD..IDNP..H202211

PLATED,ATTITUDE BLACK MC.,218

main69210-VT050-E0iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69210-VT050-E1iMAGA10,MAGH10..RHD..IDNP..H202211-202508

PLATED,BLACKISH BROWN MC.,4X9

main69210-VT080-A0iMAGA10,MAGH10..(L,M)..IND202212

SUPER WHITE 2,040

main69210-VT080-A1iMAGA10,MAGH10..(L,M)..IND202212

PLATINUM WHITE PEARL MC.,089

main69210-VT080-B0iMAGA10,MAGH10..(L,M)..IND202212

SILVER ME.,1D6

main69210-VT080-C0iMAGA10,MAGH10..(L,M)..IND202212

ATTITUDE BLACK MC.,218

main69210-VT080-C1iMAGA10,MAGH10..(L,M)..IND202212-202503

SPARKLING BLACK PEARL CS.,220

main69210-VT080-C2iMAGA10,MAGH10..(L,M)..IND202212

BLACKISH AGEHA GF.,221

main69210-VT080-E0iMAGA10,MAGH10..(L,M)..IND202212

AVANT-GARDE BRONZE ME.,4V8

main69210-VT100-A0iMAGH10..H..IND202212

PLATED,SUPER WHITE 2,040

main69210-VT100-A1iMAGH10..H..IND202212

PLATED,PLATINUM WHITE PEARL MC.,089

main69210-VT100-B0iMAGH10..H..IND202212

PLATED,SILVER ME.,1D6

main69210-VT100-C0iMAGH10..H..IND202212

PLATED,ATTITUDE BLACK MC.,218

main69210-VT100-C1iMAGH10..H..IND202212-202503

PLATED,SPARKLING BLACK PEARL CS.,220

main69210-VT100-C2iMAGH10..H..IND202212

PLATED,BLACKISH AGEHA GF.,221

main69210-VT100-E0iMAGH10..H..IND202212

PLATED,AVANT-GARDE BRONZE ME.,4V8

main69211-VT900iMAGA10,MAGH10..L..(GCC,PH)202211

PAINT REQ.

main69211-VT901iMAGA10,MAGH10..L..IDN202211

PAINT REQ.

main69211-VT903iMAGA10,MAGH10..L..IND202212

PAINT REQ.,INDIA PACKAGE

69237ANUT, FRONT DOOR HANDLE

main69237-0E010iMAGA10,MAGH10202211

69239CBUSH, FRONT DOOR HANDLE

main69239-VT010iMAGA10,MAGH10..IDNP202211

main69239-VT020iMAGA10,MAGH10..IND202212

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130iMAGA10,MAGH10..IDNP202211

main69241-VT020iMAGA10,MAGH10..IND202212

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110iMAGA10,MAGH10..IDNP202211

main69242-VT020iMAGA10,MAGH10..IND202212

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-VT010-C0iMAGH10..VN202211

BLACK,TRIM2#,4#

main69283-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main69283-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main69283-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main69283-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM4#

main69284-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main69284-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main69284-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main69284-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-VT010iMAGA10,MAGH10..IDNP202211

main69293-VT020iMAGA10,MAGH10..IND202212

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-VT030iMAGA10,MAGH10..IDNP202211

main69293-VT040iMAGA10,MAGH10..IND202212

69296SCREW, DOOR INSIDE HANDLE

main69296-0M010iMAGA10,MAGH10202211

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iMAGA10,MAGH10202211

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-VT010iMAGA10,MAGH10..IDNP202211

main69311-VT020iMAGA10,MAGH10..IND202212

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-VT010iMAGA10,MAGH10..IDNP202211

main69312-VT020iMAGA10,MAGH10..IND202212

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMAGA10,MAGH10202211

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D050iMAGA10,MAGH10..IND202212

main69410-0D060iMAGA10,MAGH10..IDNP202211

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-VT010iMAGA10,MAGH10..IDNP202211

main69710-VT020iMAGA10,MAGH10..IND202212

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-VT010iMAGA10,MAGH10..IDNP202211

main69710-VT020iMAGA10,MAGH10..IND202212

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-VT010iMAGA10,MAGH10..IDNP202211

main69750-VT020iMAGA10,MAGH10..IND202212

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-VT010iMAGA10,MAGH10..IDNP202211

main69750-VT020iMAGA10,MAGH10..IND202212

9014860083

main90148-60083

90148T0015

main90148-T0015

90148T0018

main90148-T0018

90167T0027

main90167-T0027

90189T0005

main90189-T0005

36 parts on this diagram · 1 diagram in section
