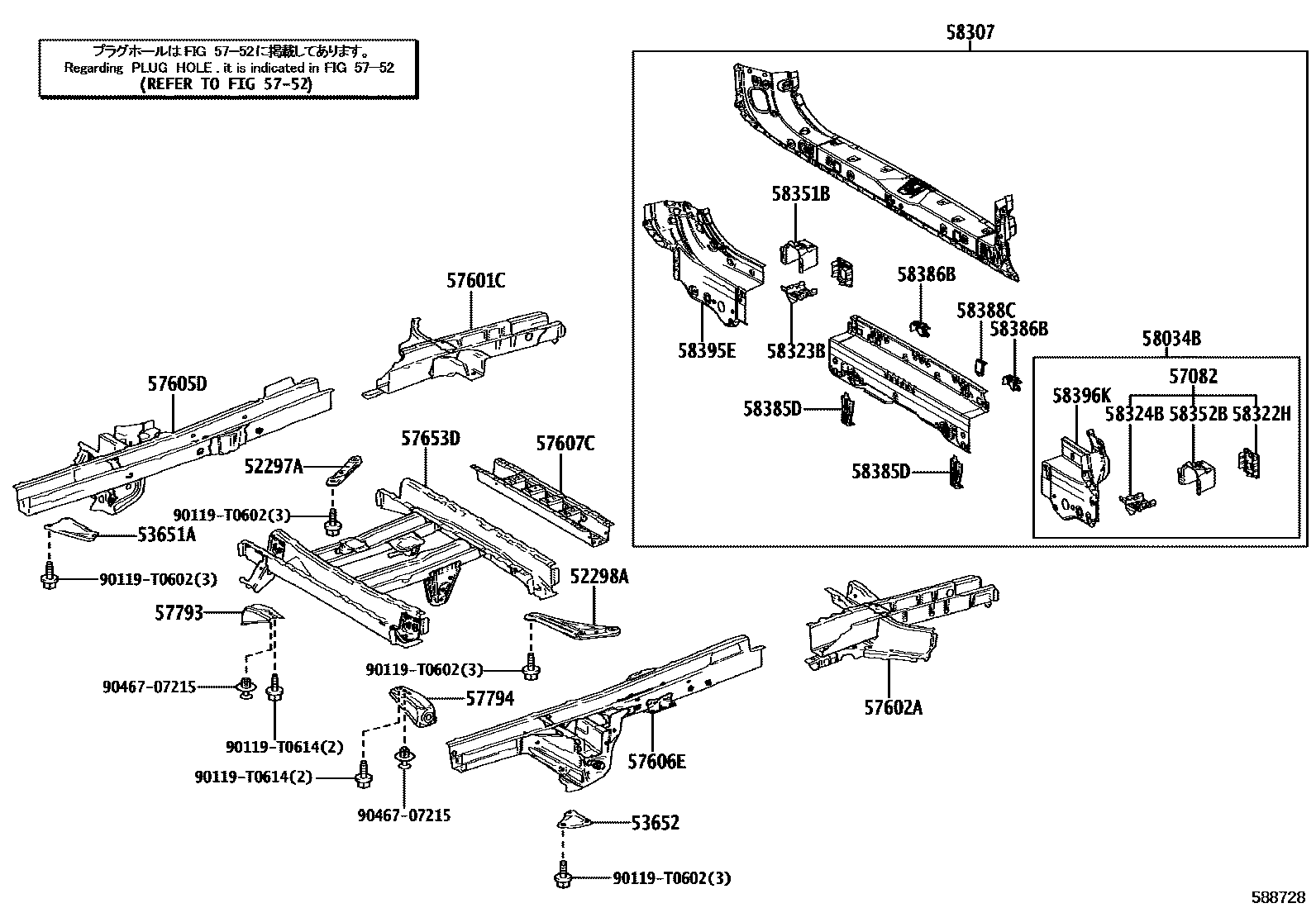

REAR FLOOR PANEL & REAR FLOOR MEMBER
52297ABRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52298ABRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
53651ABRACE, REAR SUSPENSION, UPPER RH
53652BRACE, REAR SUSPENSION, UPPER LH
57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
5752
57601CMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57653DMEMBER, REAR FLOOR CROSS, NO.2
57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58385DBRACKET, REAR BUMPER COVER
58386BBRACKET, REAR BUMPER COVER, NO.2
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58395EGUSSET, BACK DOOR OPENING, LOWER RH
58396KGUSSET, BACK DOOR OPENING, LOWER LH
90119T0602
main90119-T0602
90119T0614
main90119-T0614
9046707215
main90467-07215
29 parts on this diagram · 3 diagrams in section
