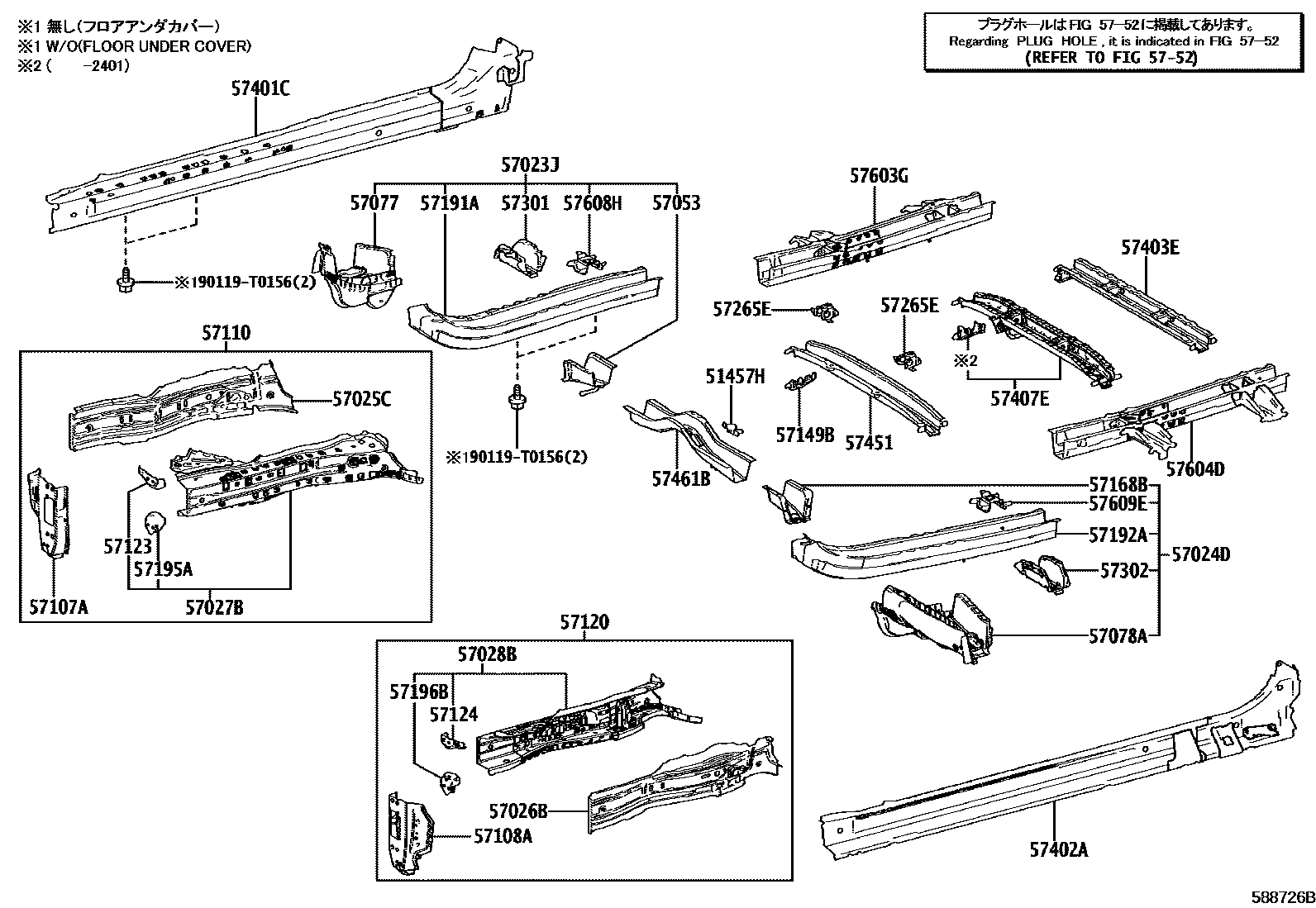

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51457HBRACKET, ENGINE UNDER COVER, REAR NO.2
57023JMEMBER SUB-ASSY, REAR SIDE, RH
57024DMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57110MEMBER ASSY, FRONT SIDE, RH
57120MEMBER ASSY, FRONT SIDE, LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57149BGUSSET, FRONT SIDE MEMBER PLATE
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57265EBRACKET, FLOOR CROSS STRENGTH, NO.1
57301OUTRIGGER SUB-ASSY, NO.1 RH
57302OUTRIGGER SUB-ASSY, NO.1, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57451MEMBER, FRONT FLOOR CROSS
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
5752
57603GEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH
57604DEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
90119T0156
37 parts on this diagram · 2 diagrams in section
