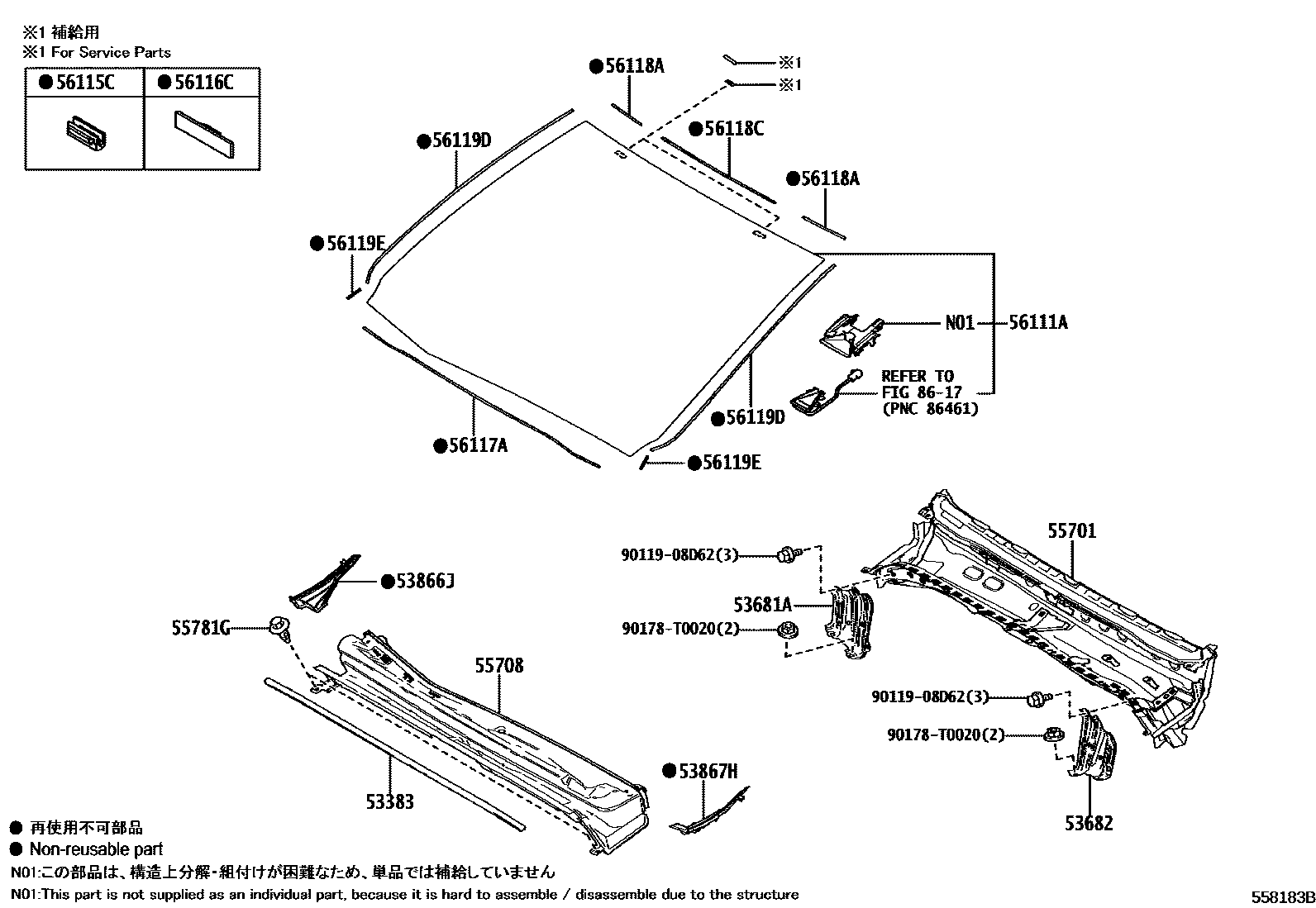

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53681ABRACE, FRONT SUSPENSION UPPER TO COWL, RH
53682BRACE, FRONT SUSPENSION UPPER TO COWL, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
(L)
(J)
56111AGLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),WITOUT(HEATER)
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1197
L=1197,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)
L=1197,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),WITOUT(HEATER)
L=1197
L=1197,SAUDI ARABIA SPEC&AUDIO-8INCH DISPLAY & *DA
L=1197,UAE SPEC&AUDIO-8INCH DISPLAY & *DA
L=1197,GUATEMALA SPEC
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=188,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)
L=188
L=188,GUATEMALA SPEC
L=188
L=188,SAUDI ARABIA SPEC&AUDIO-8INCH DISPLAY & *DA
L=188,UAE SPEC&AUDIO-8INCH DISPLAY & *DA
L=188,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),WITOUT(HEATER)
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119DDAM, WINDOW GLASS ADHESIVE, NO.3
L=779
L=779,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)
L=779
L=779,SAUDI ARABIA SPEC&AUDIO-8INCH DISPLAY & *DA
L=779,UAE SPEC&AUDIO-8INCH DISPLAY & *DA
L=779,GUATEMALA SPEC
L=779,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),WITOUT(HEATER)
56119EDAM, WINDOW GLASS ADHESIVE, NO.4
L=50
L=50,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)
L=50,ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),WITOUT(HEATER)
L=50
L=50,SAUDI ARABIA SPEC&AUDIO-8INCH DISPLAY & *DA
L=50,UAE SPEC&AUDIO-8INCH DISPLAY & *DA
L=50,GUATEMALA SPEC
8617
9011908D62
main90119-08D62
90178T0020
main90178-T0020
19 parts on this diagram · 2 diagrams in section
