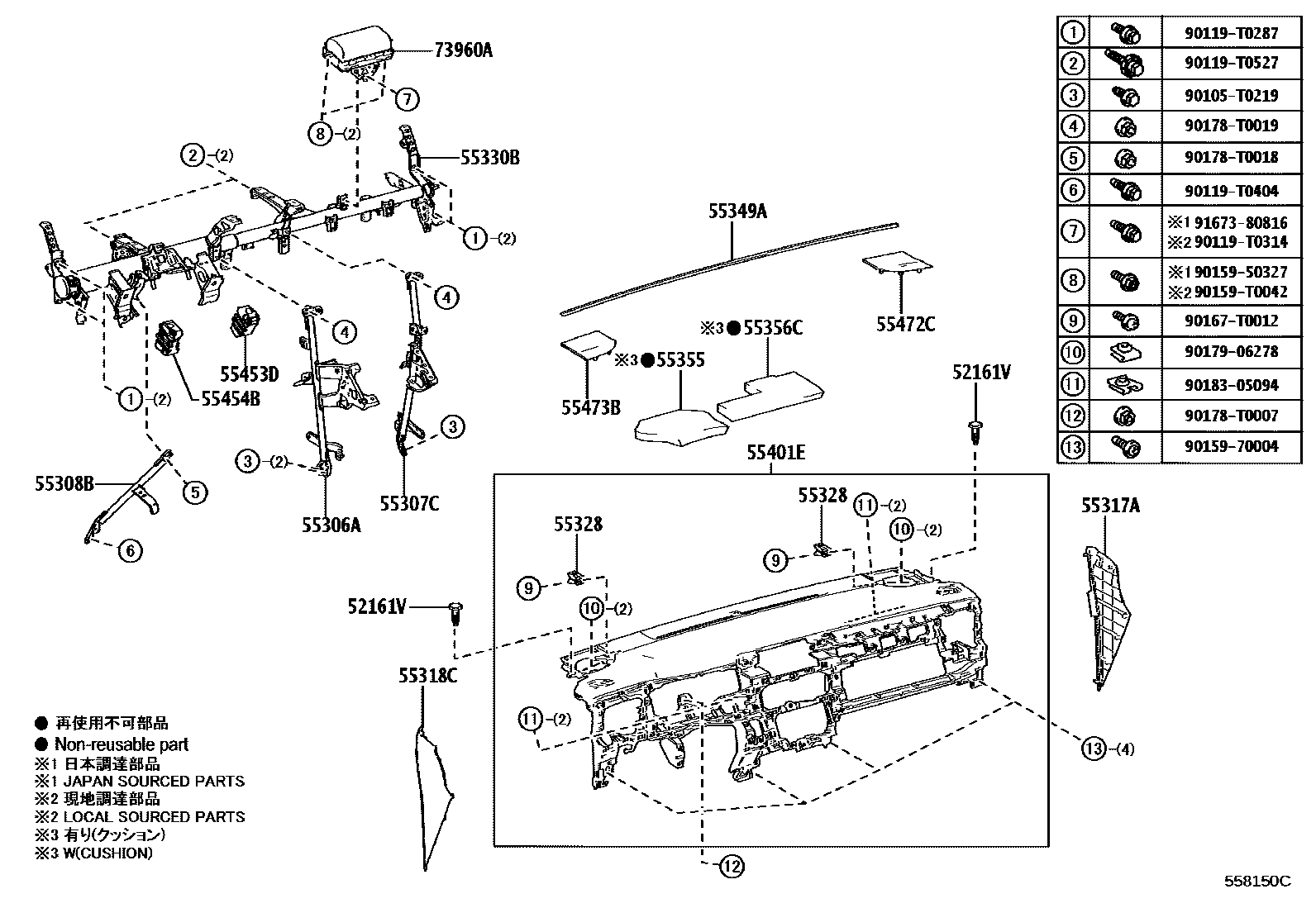

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iMAGA10,MAGH10¥120202211

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-VT010iMAGA10,MAGH10..RHD..IDNP202211

main55306-VT020iMAGA10,MAGH10..LHD202211

main55306-VT030iMAGA10,MAGH10..IND202212

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-VT010iMAGA10,MAGH10..RHD..IDNP202211

main55307-VT020iMAGA10,MAGH10..LHD202211

main55307-VT030iMAGA10,MAGH10..IND202212

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-VT010iMAGA10,MAGH10..RHD..IDNP202211

main55308-VT020iMAGA10,MAGH10..LHD202211

main55308-VT030iMAGA10,MAGH10..IND202212

55317APANEL, INSTRUMENT SIDE, RH

main55317-VT010-C0iMAGH10..VN202211

BLACK,TRIM4#

main55317-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main55317-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main55317-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main55317-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM4#

main55318-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#,4#

main55318-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main55318-VT020-C0iMAGA10,MAGH10..L..IND202212-202503

BLACK,TRIM2#,4#

main55318-VT020-C0iMAGH10..(H,M)..IND202212-202503

BLACK,TRIM4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130iMAGA10,MAGH10¥350202211

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-VT010iMAGA10,MAGH10..RHD..IDNP202211

main55330-VT020iMAGA10,MAGH10..LHD202211

main55330-VT030iMAGA10,MAGH10..IND202212

55349ACUSHION, INSTRUMENT PANEL

main55349-VT020iMAGA10,MAGH10..IDNP202211

main55349-VT030iMAGA10,MAGH10..IND202212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-VT030iMAGA10,MAGH10..IDNP..(H,M)202211

main55355-VT040iMAGH10..(H,M)..IND202212

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-VT030iMAGA10,MAGH10..IDNP..(H,M)202211

main55356-VT040iMAGH10..(H,M)..IND202212

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main55401-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main55401-VT020-C0iMAGH10..VN202211

BLACK,TRIM4#

main55401-VT020-C0iMAGH10..VN202211

BLACK,TRIM2#,4#

main55401-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main55401-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-VT010iMAGA10,MAGH10..IDNP202211

main55453-VT020iMAGA10,MAGH10..IND202212

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-VT010iMAGA10,MAGH10..IDNP202211

main55454-VT020iMAGA10,MAGH10..IND202212

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main55472-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main55472-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main55472-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main55472-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main55473-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main55473-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main55473-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main55473-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-VT010iMAGA10,MAGH10..IDNP202211

main73960-VT020iMAGA10,MAGH10..IND202212

90105T0219

main90105-T0219

90119T0287

main90119-T0287

90119T0314

main90119-T0314

90119T0404

main90119-T0404

90119T0527

main90119-T0527

9015950327

main90159-50327¥70

9015970004

main90159-70004¥60

90159T0042

main90159-T0042

90167T0012

main90167-T0012

90178T0007

main90178-T0007¥80

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9167380816

main91673-80816¥80

32 parts on this diagram · 12 diagrams in section
