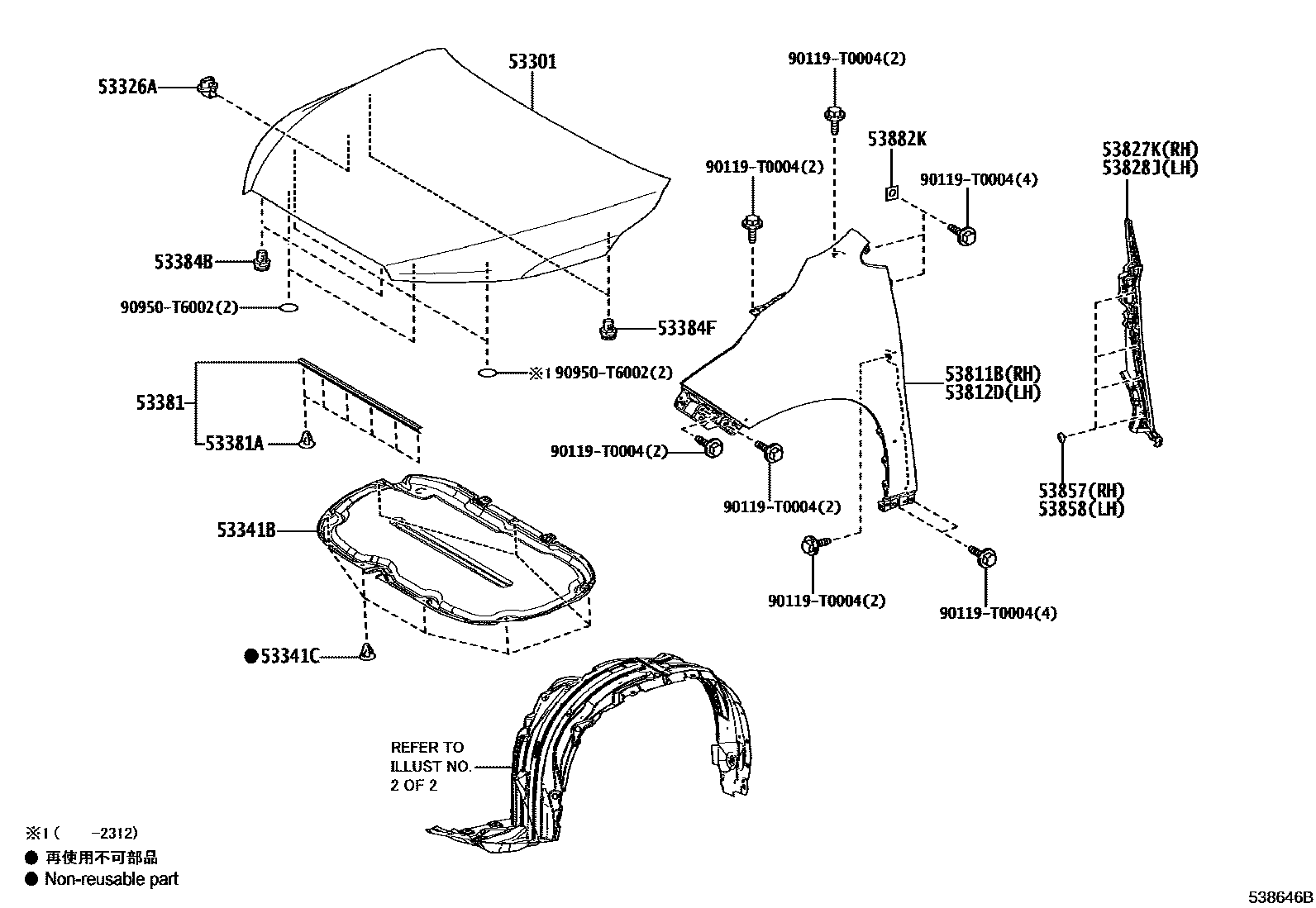

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-VT010iMAGA10,MAGH10..IND202212

main53301-VT020iMAGA10,MAGH10..IDNP202211

53326ACLIP, HOOD MOULDING

main53326-0D010iMAGA10,MAGH10202211

53341BINSULATOR, HOOD

main53341-VT010iMAGH10..IND202212

main53341-VT020iMAGA10..H,M;MAGH10..IDNP202211

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iMAGH10;MAGA10..H,M202211

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-VT010iMAGA10,MAGH10..IND202212

main53381-VT020iMAGA10,MAGH10..IDNP202211

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iMAGA10,MAGH10202211

53384BCUSHION, HOOD, CENTER

main53384-0K040iMAGA10,MAGH10202211

53384FCUSHION, HOOD, CENTER

main53384-0K040iMAGA10,MAGH10202211

53811BPANEL, FRONT FENDER, RH

main53811-VT010iMAGA10,MAGH10..(L,M)..IND202212

PLANT TKM

main53811-VT020iMAGH10..H..IND202212

PLANT TKM

main53811-VT030iMAGA10,MAGH10..(L,M)..(IDN,PH,VN)202211

PLANT TMMIN

main53811-VT040iMAGA10,MAGH10..H..(IDN,MA,PH,TH,VN)202211

PLANT TMMIN

main53811-VT050iMAGA10..L..PH202211

PLANT TMMIN

main53811-VT050iMAGA10..L..PH202211

AFRICA SPEC,PLANT TMMIN

main53811-VT060iMAGH10..H..GCC202211

PLANT TMMIN

53812DPANEL, FRONT FENDER, LH

main53812-VT010iMAGA10,MAGH10..(L,M)..IND202212

PLANT TKM

main53812-VT020iMAGH10..H..IND202212

PLANT TKM

main53812-VT030iMAGA10,MAGH10..(L,M)..(IDN,PH,VN)202211

PLANT TMMIN

main53812-VT040iMAGA10,MAGH10..H..(IDN,MA,PH,TH,VN)202211

PLANT TMMIN

main53812-VT050iMAGA10..L..PH202211

PLANT TMMIN

main53812-VT050iMAGA10..L..PH202211

AFRICA SPEC,PLANT TMMIN

main53812-VT060iMAGH10..H..GCC202211

PLANT TMMIN

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-VT010iMAGA10,MAGH10..IND202212

main53827-VT020iMAGA10,MAGH10..IDNP202211

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-VT010iMAGA10,MAGH10..IND202212

main53828-VT020iMAGA10,MAGH10..IDNP202211

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iMAGA10,MAGH10202211

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iMAGA10,MAGH10202211

53882KSEAL, FRONT FENDER

main53882-0K020iMAGA10,MAGH10202211

90119T0004

main90119-T0004

90950T6002

main90950-T6002

17 parts on this diagram · 2 diagrams in section
