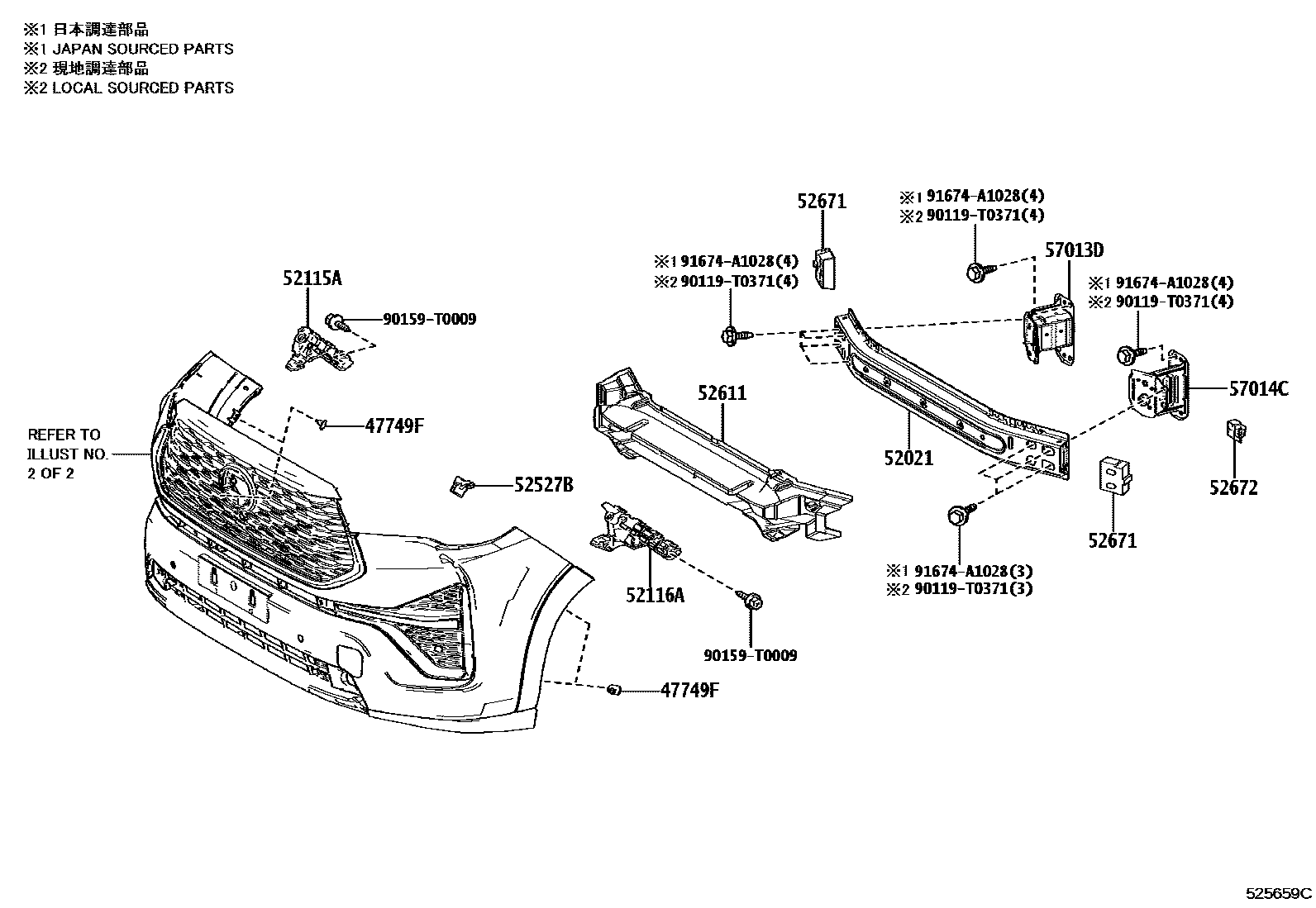

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-30090iMAGA10,MAGH10202211

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-VT010iMAGA10,MAGH10..IND202212

main52021-VT020iMAGA10,MAGH10..IDNP202211

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-VT010iMAGA10,MAGH10..IND202212

main52115-VT020iMAGA10,MAGH10..IDNP202211

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-VT010iMAGA10,MAGH10..IND202212

main52116-VT020iMAGA10,MAGH10..IDNP202211

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-VT010iMAGA10,MAGH10..IND202212

main52527-VT020iMAGA10,MAGH10..IDNP202211

52611ABSORBER, FRONT BUMPER ENERGY

main52611-VT010iMAGA10,MAGH10..IND202212

main52611-VT020iMAGA10,MAGH10..IDNP202211

52671EXTENSION, FRONT BUMPER ARM

main52671-VT010iMAGA10,MAGH10202211

52672EXTENSION, FRONT BUMPER ARM, LH

main52672-VT010iMAGA10..IND202212

main52672-VT020iMAGA10..IDNP202211

57013DBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-VT010iMAGA10,MAGH10..IND202212

main57013-VT020iMAGA10,MAGH10..IDNP202211

57014CBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-VT010iMAGA10,MAGH10..IND202212

main57014-VT020iMAGA10,MAGH10..IDNP202211

90119T0371

main90119-T0371

90159T0009

main90159-T0009

91674A1028

main91674-A1028

13 parts on this diagram · 2 diagrams in section
