SPARE WHEEL CARRIER

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-VT010iMAGA10,MAGH10..IND202212

main51903-VT020iMAGA10,MAGH10..IDNP202211

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-VT010iMAGA10,MAGH10..IND202212

main51907-VT020iMAGA10,MAGH10..IDNP202211

51915ABASE, SPARE WHEEL CARRIER

main51915-VT010iMAGA10,MAGH10..IND202212

main51915-VT020iMAGA10,MAGH10..IDNP202211

51938LOCK, SPARE WHEEL CARRIER

main51938-VT010iMAGA10,MAGH10..IND202212

main51938-VT020iMAGA10,MAGH10..IDNP202211

51978BCLIP, SPARE WHEEL CARRIER PROTECTOR

main90467-06020-C0iMAGA10,MAGH10..IDNP202211-202403

BLACK

sub90467-06020

main90467-T0046-C0iMAGA10,MAGH10..IDNP202403

BLACK

9011908D21

main90119-08D21

9011912501

main90119-12501

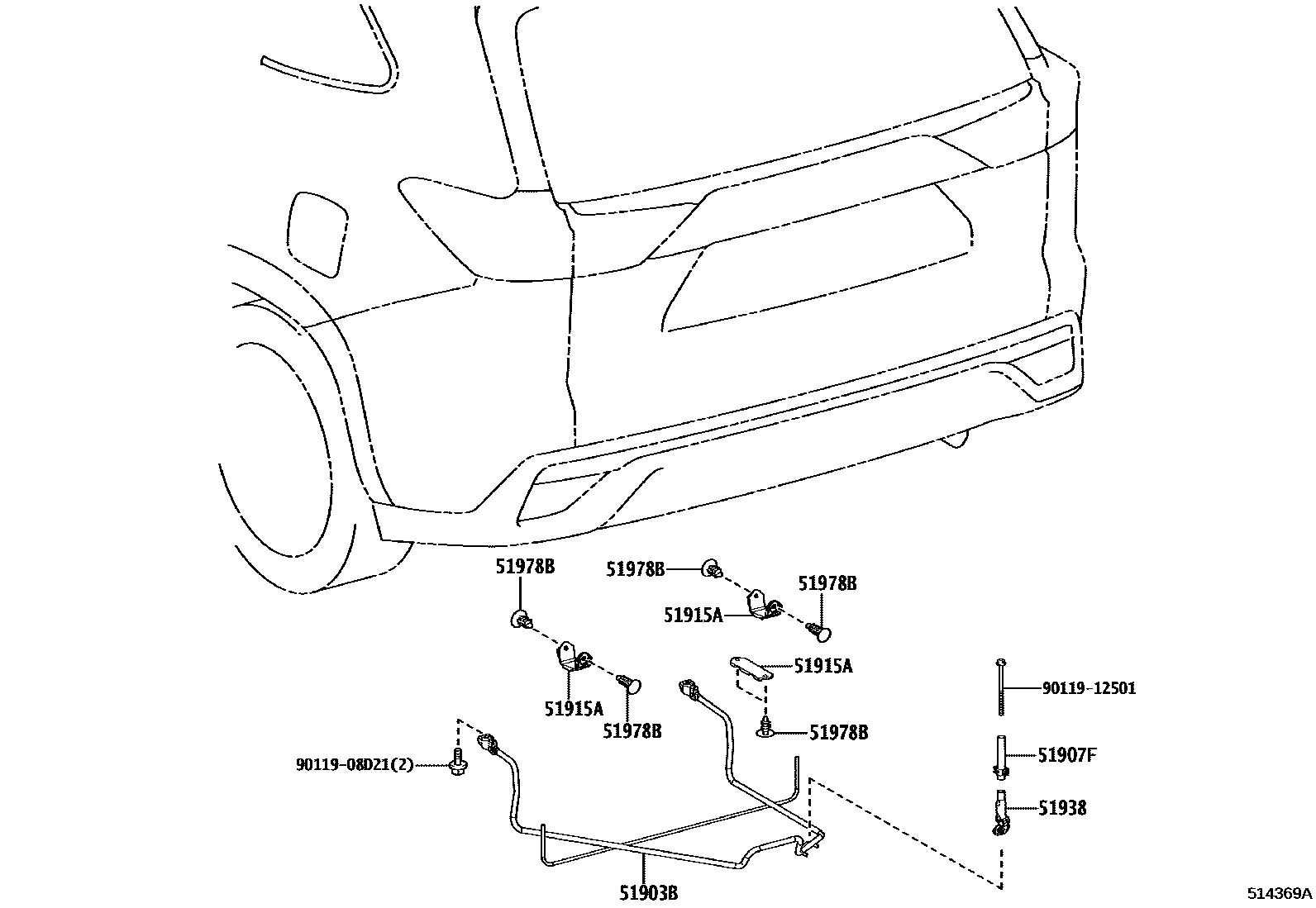

7 parts on this diagram · 1 diagram in section
