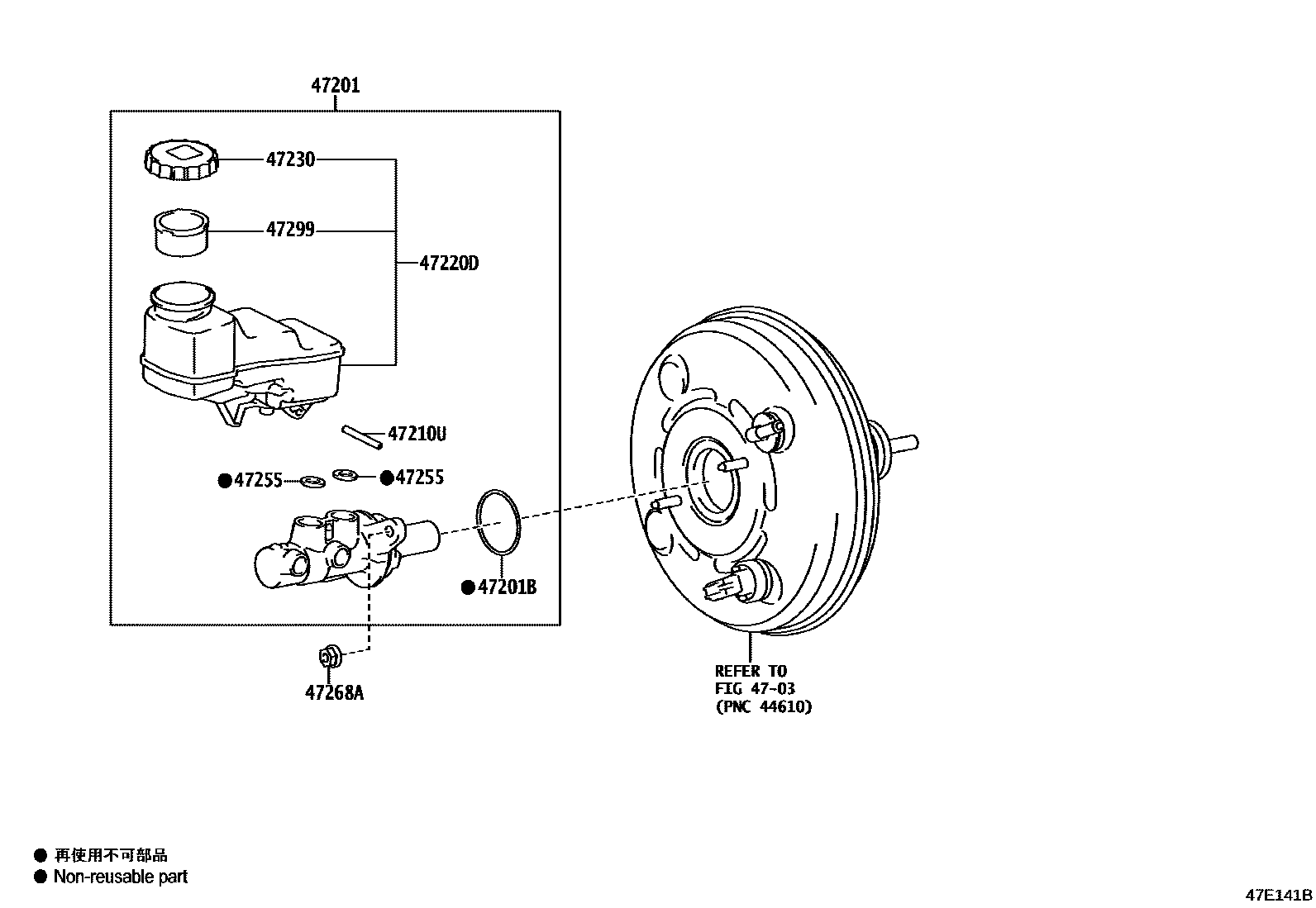

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-VT010iMAGA10..RHD..IDNP202211

main47201-VT020iMAGA10..LHD202211

main47201-VT030iMAGA10..IND202212

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMAGA10..IND202212

main90016-AH903iMAGA10..IDNP202211

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMAGA10202211

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-VT010iMAGA10..RHD..IDNP202211

main47220-VT020iMAGA10..LHD202211

main47220-VT030iMAGA10..IND202212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMAGH10..IND202211-202405

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT004iMAGA10..IDNP202211

main90029-48001iMAGA10..IND202212

sub90016-AT001

47268ANUT, BRAKE MASTER CYLINDER

main90179-08204iMAGA10202211

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iMAGA10202211

9 parts on this diagram · 5 diagrams in section
