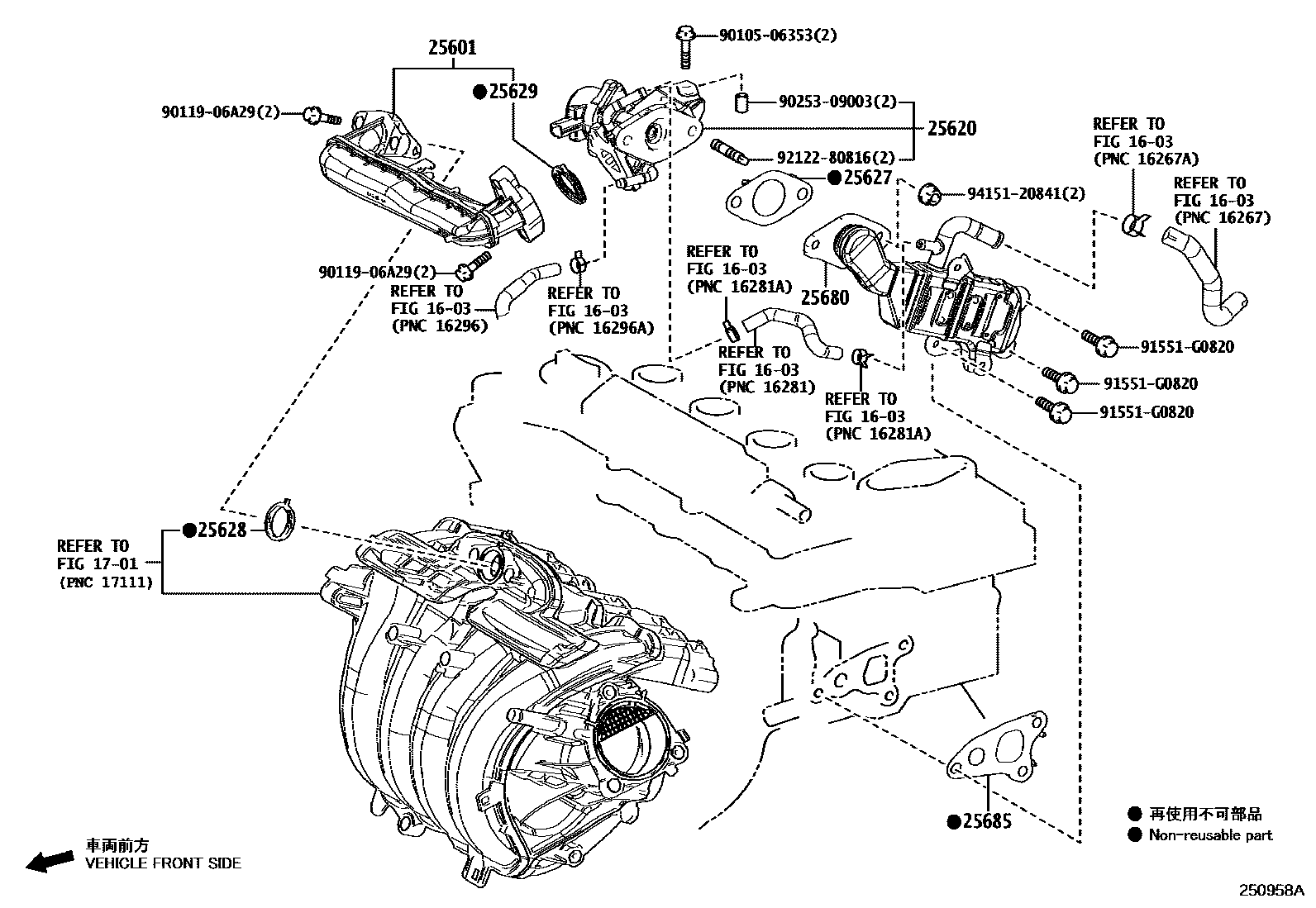

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20#..MAGA10,MAGH10202211

(J)

main25601-F2060iM20#..MAGA10,MAGH10202211

(L)

25620VALVE ASSY, EGR

main25620-24050iM20#..MAGA10,MAGH10..IDN,MA,PH,TH,VN202211

main25620-24060iM20#..MAGA10,MAGH10..GCC,IND202211

25627GASKET, EGR VALVE

main25627-24010iM20#..MAGA10,MAGH10202211

(J)

main25627-F2050iM20#..MAGA10,MAGH10202211

(L)

25628GASKET, EGR INLET

main25628-25010iM20#..MAGA10,MAGH10202211

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20#..MAGA10,MAGH10202211

(J)

main25629-F2030iM20#..MAGA10,MAGH10202211

(L)

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MAGA10..IDN,MA,PH,VN202211

main25680-24020iM20AFKS..MAGA10..GCC,IND202211

main25680-24030iM20AFXE..MAGH10..IDN,MA,PH,TH,VN202211

main25680-24040iM20AFXE..MAGH10..GCC,IND202211

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20#..MAGA10,MAGH10202211

(J)

main25685-F2030iM20#..MAGA10,MAGH10202211

(L)

9010506353

main90105-06353

9011906A29

main90119-06A29

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

15 parts on this diagram · 1 diagram in section
