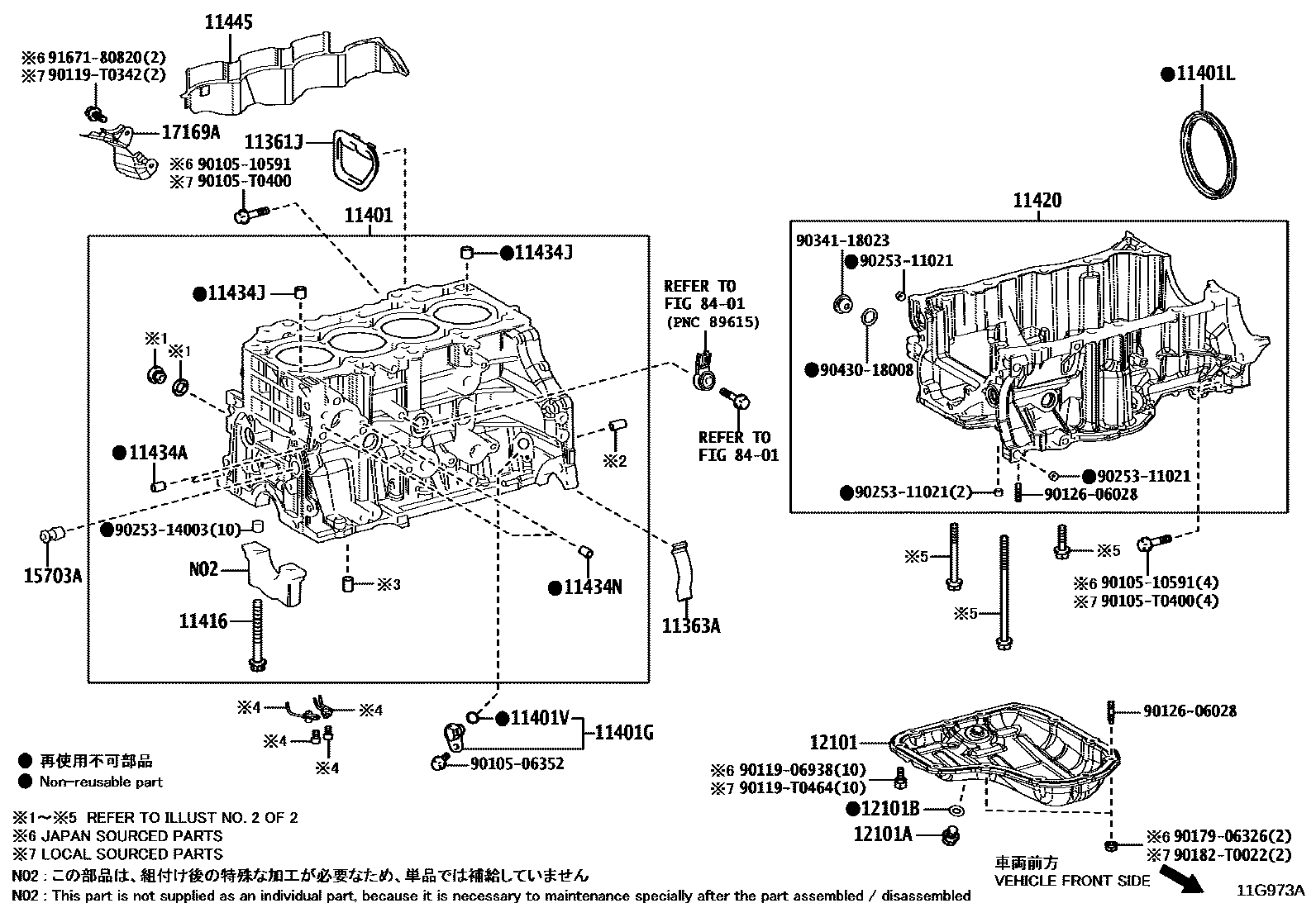

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
(J)
(L)
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
(J)
(L)
12101PAN SUB-ASSY, OIL
(J)
(L)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15703AVALVE SUB-ASSY, OIL NOZZLE
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
(J)
(L)
8401
9010506352
9010510591
90105T0400
main90105-T0400
9011906938
90119T0342
main90119-T0342
90119T0464
main90119-T0464
9012606028
9017906326
90182T0022
main90182-T0022
9025311021
9025314003
9034118023
9043018008
9167180820
32 parts on this diagram · 3 diagrams in section
