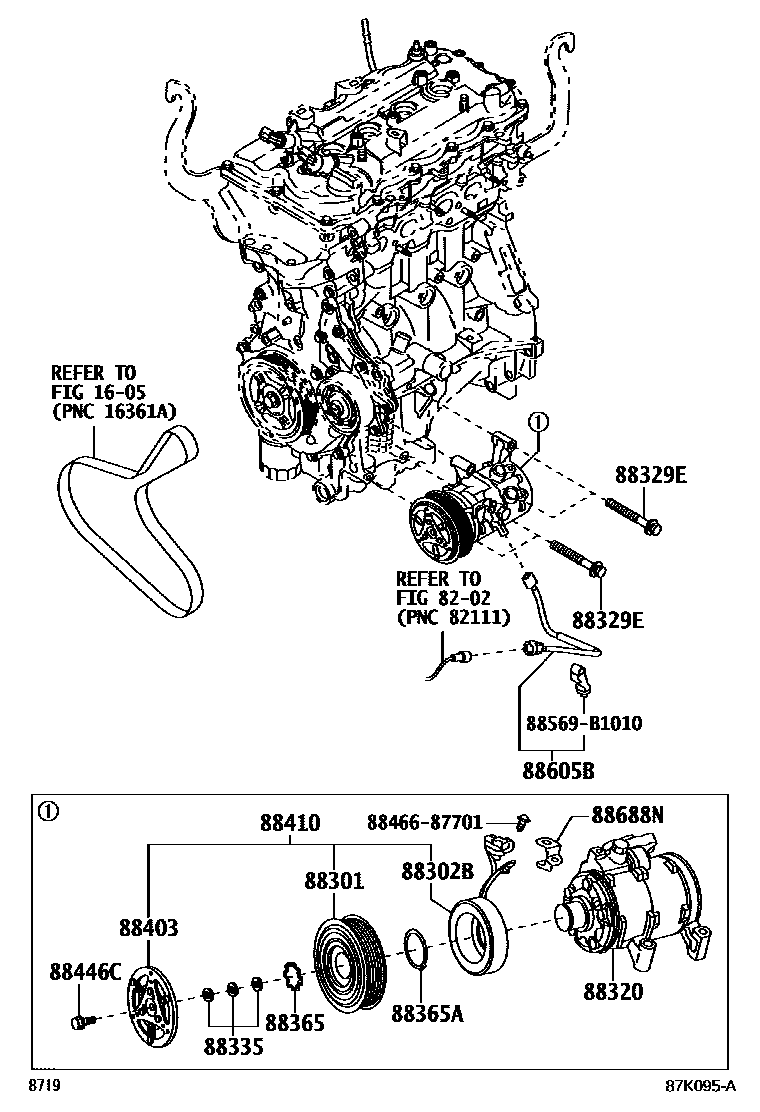

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ200iW100;W101..CVT..PHL;W101..GEN,IDN,MXC,THAI,VN202111-202309

main88412-BZ210iW101..GCC202212

88302BSTATOR, MAGNET CLUTCH

main88411-BZ270iW100;W101..CVT..PHL;W101..GEN,IDN,MXC,THAI,VN202111-202309

main88411-BZ300iW101..GCC202212

88320COMPRESSOR ASSY, COOLER

main88320-BZ400iW100,101..5F..GEN202201

PERU + BOLIVIA

main88320-BZ410iW100..IDN,PHL;W101..(G,S,V)..(MXC,PHL);W101..(M,S,V)..(GEN,IDN,THAI,VN);W101..LHD..CVT..(G,M)..(GEN,PHL)202111-202309

main88320-BZ440iW101..GCC202212

88329EBOLT, COMPRESSOR, NO.1

main88329-B1020iW101..GCC¥440202212

main9004A-10144iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

88335GASKET KIT, OVERHAUL

main88335-14020iW101..5F..PHL202111-202309

88365RING, SNAP

main90099-07125iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN¥250202111-202309

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iW101..5F..PHL202111-202309

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iW101..GCC202212

main88403-BZ080iW100;W101..CVT..PHL;W101..GEN,IDN,MXC,THAI,VN202111-202309

88410CLUTCH ASSY, MAGNET

main88410-BZ410iW101..5F..PHL202111-202309

main88410-BZ460iW101..GCC202212

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iW101..5F..PHL202111-202309

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main82210-BZ020iW101..5F..PHL202111-202309

88688NBRACKET, COOLER

main88688-BZ290iW101..5F..PHL202111-202309

main88688-BZ320iW101..GCC202212

8846687701

main88466-87701

88569B1010CLAMP (FOR COOLER RELAY)

main88569-B1010¥170

16 parts on this diagram · 2 diagrams in section
