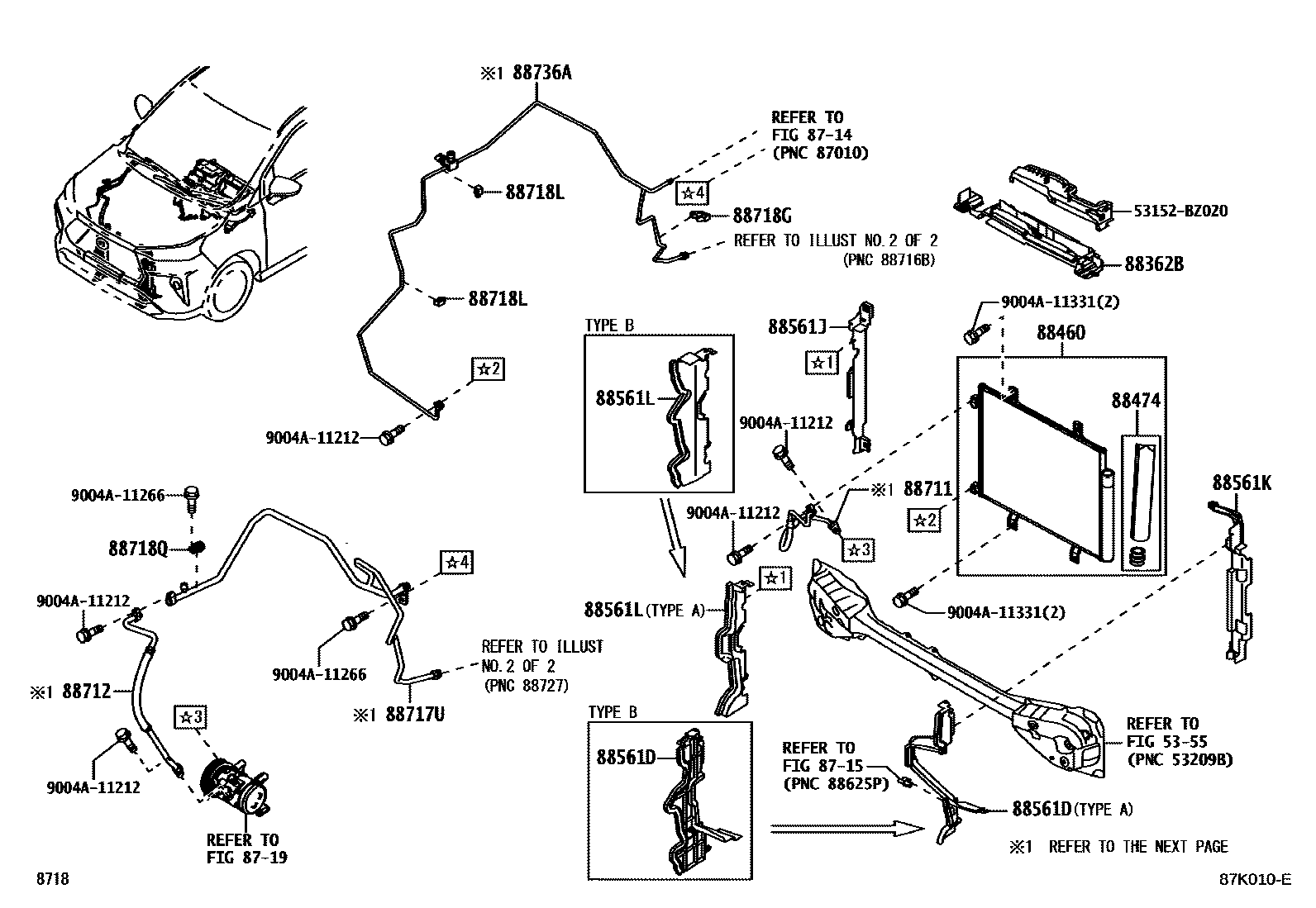

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1DUAL(CONDENSER) 0004 1CONDENSER 0005 1SINGLE(CONDENSER) 0006 1TUBE ASSY 0007 1DUAL(TUBE ASSY) 0009 1SINGLE(TUBE ASSY) 0010 1REAR

5355

8714

8715

8719

88362BPLATE, SEAL

main88561-BZ430iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88561-BZA10iW101..GCC202212

88460CONDENSER ASSY, COOLER

main88460-BZ320iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88460-BZ330iW101..GCC202212

88474DRYER, COOLER

main88474-B2010iW100,101202111

88561DGRILLE, AIR INLET NO.3

main88561-BZ840iW100,101..D,G,M202111

TYPE A

main88561-BZ850iW101..(S,V)..(IDN,PHL,THAI,VN)202111

TYPE B

main88561-BZC80iW101..GCC202212

88561JGRILLE, AIR INLET NO.1

main88561-BZ760iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88561-BZ770iW101..GCC202212

88561KGRILLE, AIR INLET NO.2

main88561-BZ780iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88561-BZ790iW101..GCC202212

88561LGRILLE, AIR INLET NO.4

main88561-BZ810iW100,101..D,G,M202111

TYPE A

main88561-BZ820iW101..(S,V)..(IDN,PHL,THAI,VN)202111

TYPE B

main88561-BZC70iW101..GCC202212

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ770iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88711-BZ780iW101..GCC202212

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZ830iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88712-BZ840iW101..GCC202212

88717UTUBE, SUCTION, NO.1

main88717-BZ480iW100,101..RHD202111

main88717-BZ490iW100,101..5F..GEN202201

PERU + BOLIVIA

main88717-BZ500iW101..CVT..G..GEN;W100,101..MXC,PHL,VN202201

main88717-BZ510iW101..GCC202212

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-BZ650iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

88718LCLAMP, PIPING

main88718-13060iW100,101202111

88718QCLAMP, PIPING

main88718-BZ800iW100,101..GEN,IDN,MXC,PHL,THAI,VN202111

main88718-BZ810iW101..GCC202212

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZF60iW100,101..RHD202111

main88716-BZF70iW100,101..5F..GEN202201

PERU + BOLIVIA

main88716-BZF80iW101..CVT..G..GEN;W100,101..MXC,PHL,VN202201

main88716-BZF90iW101..GCC202212

53152BZ020HINGE, RADIATOR COVER SUPPORT

main53152-BZ020

9004A11212

main9004A-11212

9004A11266

main9004A-11266

9004A11331

main9004A-11331

22 parts on this diagram · 8 diagrams in section
