HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1AIR DUCT 0005 1AIR FILTER 0006 1SENSOR

5551

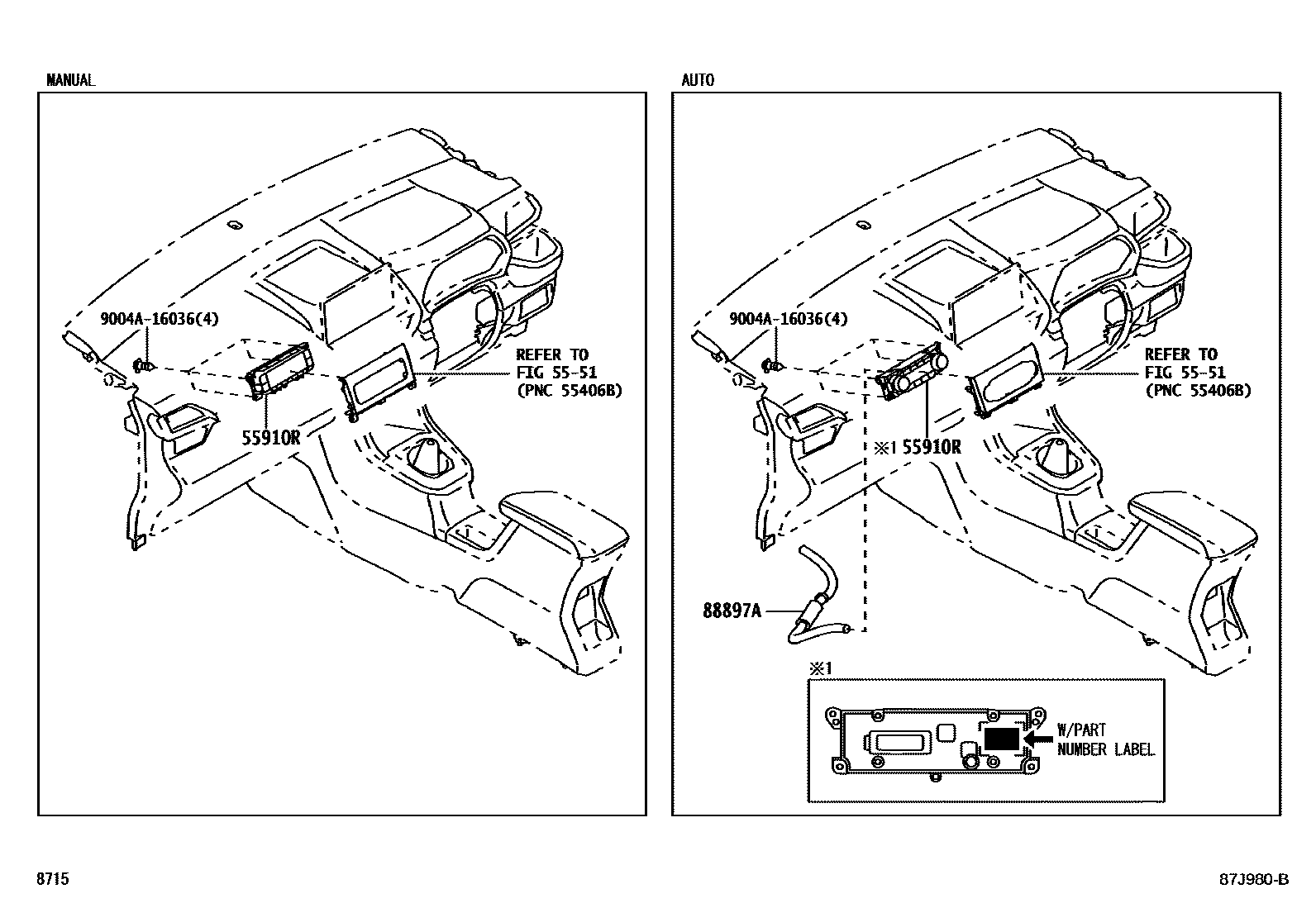

55910RCONTROL ASSY, HEATER

main55910-BZ600iW101..(S,V)..(GCC,VN)202212

main55910-BZ840iW101..S,V202111-202205

W/PART NUMBER LABEL

main55910-BZ841iW101..(S,V)..(IDN,PHL,THAI)202205

W/PART NUMBER LABEL

main55910-BZ850iW100,101..(D,M)..IDN202111

main55910-BZ860iW100..PHL;W101..CVT..M..PHL202201

main55910-BZ870iW101..5F..PHL;W100,101..(D,G,M)..(GEN,MXC,VN)202201

88897APIPE, ASPIRATOR

main88505-BZ030iW101..S,V202111

9004A16036

main9004A-16036

4 parts on this diagram · 6 diagrams in section
