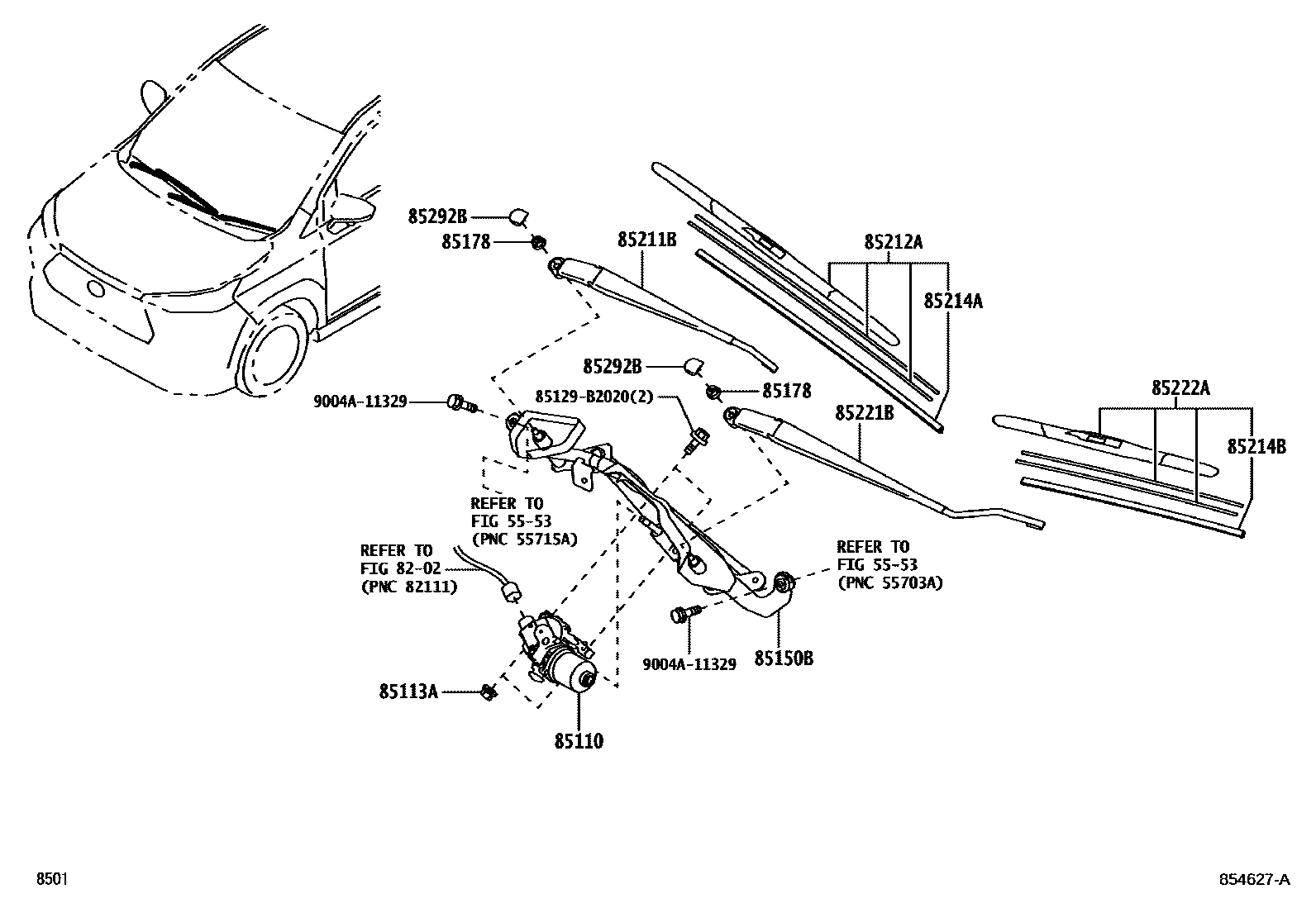

WINDSHIELD WIPER

0001 1 0002 1

5553

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ300iW100,101..RHD202111

main85110-BZ310iW100,101..LHD202201

85113ANUT, FR WIPER

main85113-B2010iW100,101202111

85150BLINK ASSY, WIPER

main85150-BZ340iW100,101..RHD202111

main85150-BZ350iW100,101..LHD202201

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iW10#202111-202208

main90041-79379iW100,101202209

85211BARM, FRONT WIPER, RH

main85211-BZ360iW100,101..RHD202111

main85221-BZ370iW100,101..LHD202201

85212ABLADE, FR WIPER, RH

main85212-BZ350iW100,101..RHD202111

main85222-BZ370iW100,101..LHD202201

85214ARUBBER, WIPER, RH

main85214-B1070iW100,101..LHD202201

main85214-BZ460iW100,101..RHD202111

85214BRUBBER, WIPER, LH

main85214-B1070iW100,101..RHD202111

main85214-BZ460iW100,101..LHD202201

85221BARM, FRONT WIPER, LH

main85211-BZ370iW100,101..LHD202201

main85221-BZ360iW100,101..RHD202111

85222ABLADE, FR WIPER, LH

main85212-BZ360iW100,101..LHD202201

main85222-BZ360iW100,101..RHD202111

85292BCAP, FRONT WIPER ARM HEAD

main85292-BZ110iW100,101202111

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9004A11329

main9004A-11329

15 parts on this diagram · 2 diagrams in section
