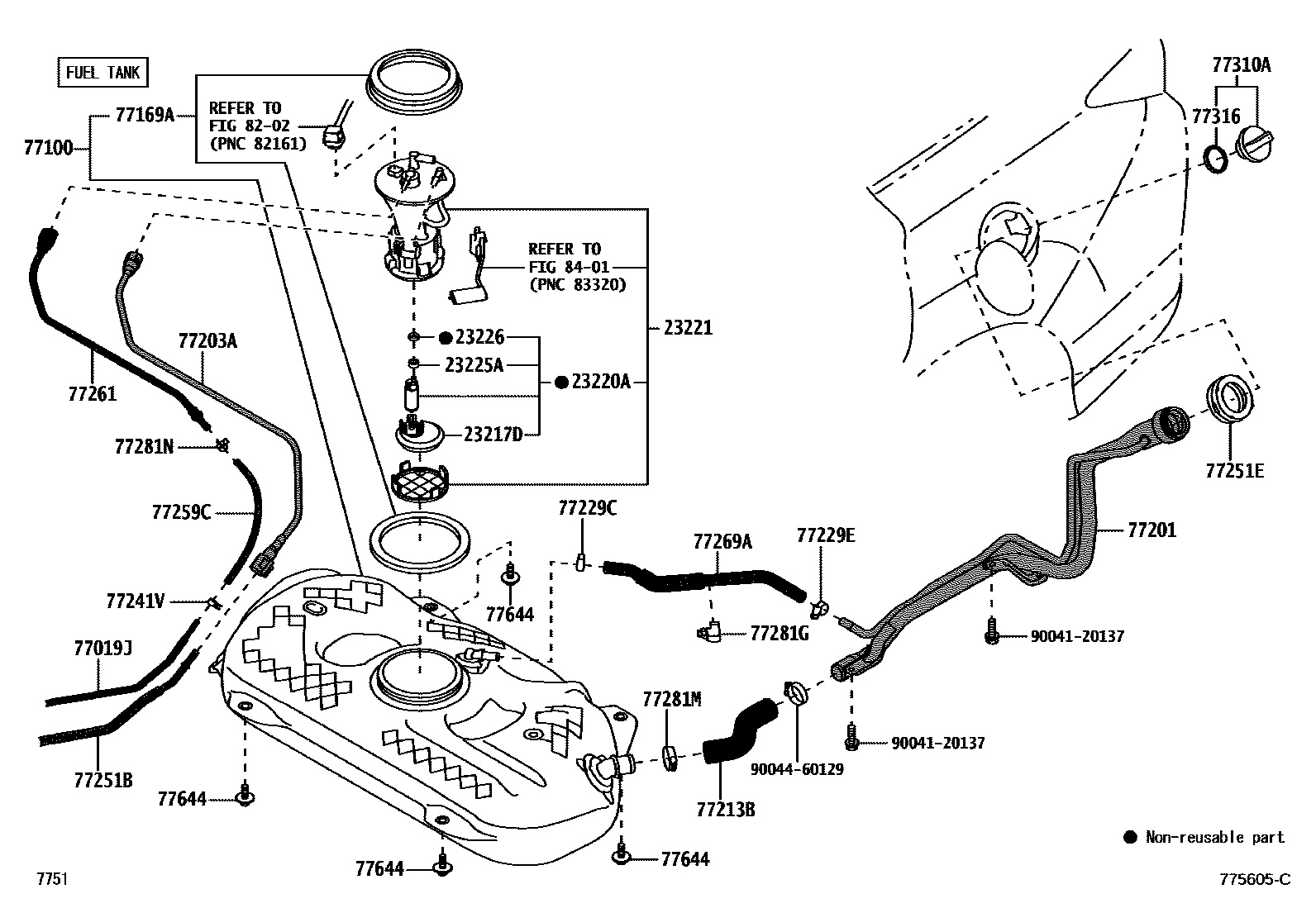

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1FUEL LID CABLE 0005 1FUEL LID CABLE

23217DFILTER, FUEL PUMP

main23105-BZ020i1NRVE,2NRVE..W100,101202111

23220APUMP ASSY, FUEL W/FILTER

main23220-BZ050i2NRVE..W101..5F..PHL202111-202309

23221PUMP, FUEL

main23210-BZ280i1NRVE,2NRVE..W100,101202111

23225ASPACER, FUEL PUMP

main23225-BZ030i2NRVE..W101..5F..PHL202111-202309

23226RING, O(FOR FUEL PUMP)

main9004B-30027i2NRVE..W101..5F..PHL202111-202309

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77263-BZ200iW100,101..RHD202111

main77263-BZ330iW100,101..LHD202201

77100TANK ASSY, FUEL

main77001-BZ520iW100,101202111

77169AGASKET, FUEL SUCTION TUBE SET

main77169-BZ040iW100,101202111

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ250iW100,101202111

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ220iW100,101202111

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ250iW100,101202111

L=210.2

77229CCLAMP, BREATHER TUBE

main90044-67244iW100,101202111

77229ECLAMP, BREATHER TUBE

main90460-22002iW100,101202111

77241VCLIP, TUBE JOINT

main90044-67229iW100,101202111

77251BTUBE, FUEL MAIN

main77251-BZ390iW100,101..RHD202111

main77251-BZ400iW100,101..LHD202201

77251ESHIELD, FUEL TANK INLET PIPE

main77291-BZ050iW100,101202111

77259CHOSE, FUEL

main77259-BZ120iW100,101202111

77261TUBE SUB-ASSY, FUEL EMISSION

main77028-BZ040iW100,101202111

77269AHOSE, FUEL TANK BREATHER

main77269-BZ140iW100,101202111

77281GCLAMP, FUEL HOSE

main77281-BZ050iW100,101202111

77281MCLAMP, FUEL HOSE

main90044-60129iW100,101202111

77281NCLAMP, FUEL HOSE

main90044-67271iW100,101202111

77310ACAP ASSY, FUEL TANK

main77300-52030iW100,101202111

77316GASKET, FUEL TANK CAP

main77316-52040iW100,101202111

77644BOLT, FUEL TANK

main90041-20292iW100,101202111

8202

8401

9004120137

main90041-20137

9004460129

main90044-60129

29 parts on this diagram · 5 diagrams in section
