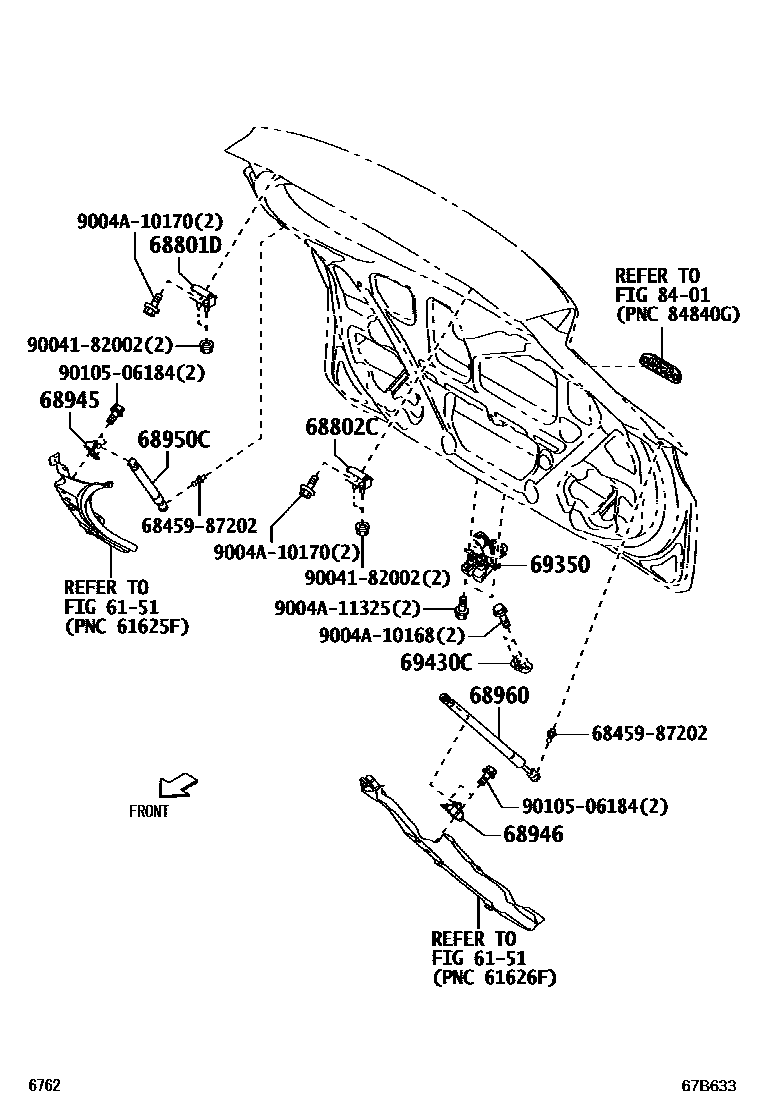

BACK DOOR LOCK & HINGE
6151
68801DHINGE SUB-ASSY, BACK DOOR, RH
68802CHINGE SUB-ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
8401
6845987202
main68459-87202
9004182002
main90041-82002
9004A10168
main9004A-10168
9004A10170
main9004A-10170
9004A11325
main9004A-11325
9010506184
main90105-06184
16 parts on this diagram · 1 diagram in section
